B1300017

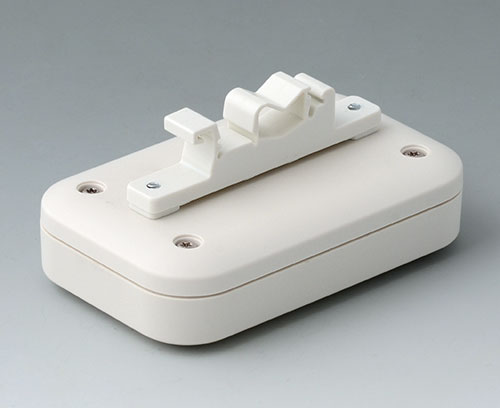

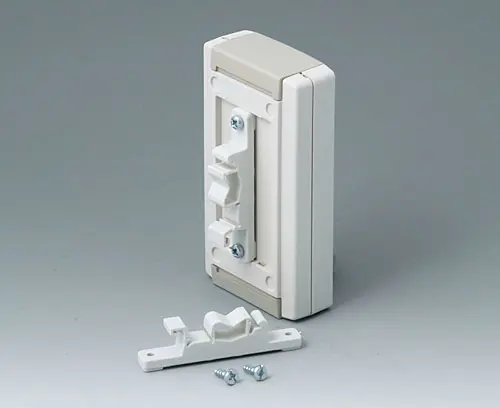

Fastening element for DIN-Rails
Especially for TOPTEC starting from size 123 F/H and EVOTEC 100/125/150. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.
Supply1 piece incl, assembly kit
A9421107
EVOTEC 100, Vers. I
2-part plastic enclosure with flat top part, height 26. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part "Flat"
Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
关闭A9421107
EVOTEC 100, Vers. I产品已添加到关注清单中
off-white RAL 9002
100x62x26mm
IP 65 opt., IP 40
A9423107
EVOTEC 100, Vers. I
2-part plastic enclosure with flat top part, height 31. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part "Flat"
Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
关闭A9423107
EVOTEC 100, Vers. I产品已添加到关注清单中
off-white RAL 9002
100x62x31mm
IP 65 opt., IP 40
A9431107
EVOTEC 125, Vers. I
2-part plastic enclosure with flat top part, height 30. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part "Flat"
Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
关闭A9431107
EVOTEC 125, Vers. I产品已添加到关注清单中
off-white RAL 9002
125x78x30mm
IP 65 opt., IP 40
A9433107
EVOTEC 125, Vers. I
2-part plastic enclosure with flat top part, height 37. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part "Flat"
Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
关闭A9433107
EVOTEC 125, Vers. I产品已添加到关注清单中
off-white RAL 9002
125x78x37mm
IP 65 opt., IP 40
A9441107
EVOTEC 150, Vers. I
2-part plastic enclosure with flat top part, height 35. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part "Flat"
Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
关闭A9441107
EVOTEC 150, Vers. I产品已添加到关注清单中
off-white RAL 9002
150x93x35mm
IP 65 opt., IP 40
A9443107
EVOTEC 150, Vers. I
2-part plastic enclosure with flat top part, height 45. Robust design with tongue and groove connection. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part "Flat"
Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
关闭A9443107
EVOTEC 150, Vers. I产品已添加到关注清单中
off-white RAL 9002
150x93x45mm
IP 65 opt., IP 40
A9446107
EVOTEC 150, Vers. III
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.
Version Top part "Desktop", operating area recessed by 1 mm
Supply Top and bottom parts, assembly kit incl. 4 self-adhesive rubber feet
关闭A9446107
EVOTEC 150, Vers. III产品已添加到关注清单中
off-white RAL 9002
150x93x36mm
IP 65 opt., IP 40
B1050365
TOPTEC 123 H, Vers. I
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.
Version without ventilations slots.
Supply 1 case-top and base, 2 end panels
关闭B1050365
TOPTEC 123 H, Vers. I产品已添加到关注清单中
off-white RAL 9002
123x68x45mm
IP 40
B1050465
TOPTEC 123 H, Vers. II
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.
Version With ventilations slots
Supply 1 case-top and base, 2 end panels
关闭B1050465
TOPTEC 123 H, Vers. II产品已添加到关注清单中
off-white RAL 9002
123x68x45mm
IP 40
B1055365
TOPTEC 123 F, Vers. I
Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.
Version Without ventilations slots
Supply 1 case-top and base, 2 end panels
关闭B1055365
TOPTEC 123 F, Vers. I产品已添加到关注清单中
off-white RAL 9002
123x68x30mm
IP 40
B1055465
TOPTEC 123 F, Vers. II
Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.
Version With ventilations slots
Supply 1 case-top and base, 2 end panels
关闭B1055465
TOPTEC 123 F, Vers. II产品已添加到关注清单中
off-white RAL 9002
123x68x30mm
IP 40
B1060365
TOPTEC 154 H, Vers. I
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.
Version Without ventilations slots
Supply 1 case-top and base, 2 end panels
关闭B1060365
TOPTEC 154 H, Vers. I产品已添加到关注清单中
off-white RAL 9002
154x84x56mm
IP 40
B1060465
TOPTEC 154 H, Vers. II
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.
Version With ventilations slots
Supply 1 case-top and base, 2 end panels
关闭B1060465
TOPTEC 154 H, Vers. II产品已添加到关注清单中
off-white RAL 9002
154x84x56mm
IP 40
B1065365
TOPTEC 154 F, Vers. I
Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.
Version Without ventilations slots
Supply 1 case-top and base, 2 end panels
关闭B1065365
TOPTEC 154 F, Vers. I产品已添加到关注清单中
off-white RAL 9002
154x84x38mm
IP 40
B1065465
TOPTEC 154 F, Vers. II
Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.
Version With ventilations slots
Supply 1 case-top and base, 2 end panels
关闭B1065465
TOPTEC 154 F, Vers. II产品已添加到关注清单中
off-white RAL 9002
154x84x38mm
IP 40
B1070365
TOPTEC 194 H, Vers. I
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.
Version Without ventilations slots
Supply 1 case-top and base, 2 end panels
关闭B1070365
TOPTEC 194 H, Vers. I产品已添加到关注清单中
off-white RAL 9002
194x115x68mm
IP 40
B1070465
TOPTEC 194 H, Vers. II
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.
Version With ventilations slots
Supply 1 case-top and base, 2 end panels
关闭B1070465
TOPTEC 194 H, Vers. II产品已添加到关注清单中
off-white RAL 9002
194x115x68mm
IP 40
B1075365
TOPTEC 194 F, Vers. I
Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.
Version Without ventilations slots
Supply 1 case-top and base, 2 end panels
关闭B1075365
TOPTEC 194 F, Vers. I产品已添加到关注清单中
off-white RAL 9002
194x115x46mm
IP 40
B1075465
TOPTEC 194 F, Vers. II
Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.
Version With ventilations slots
Supply 1 case-top and base, 2 end panels
关闭B1075465
TOPTEC 194 F, Vers. II产品已添加到关注清单中
off-white RAL 9002
194x115x46mm
IP 40
材料
颜色
off-white RAL 9002
标准根据
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
6 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
