DIN 标准导轨接线盒
A9152048

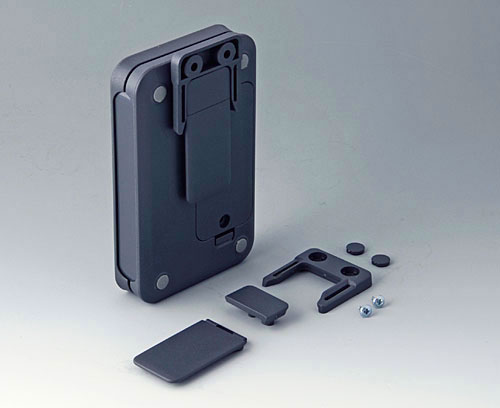

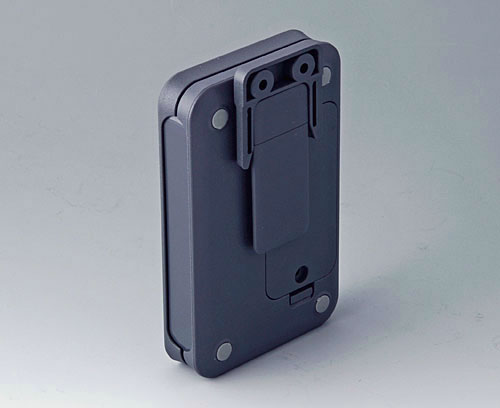

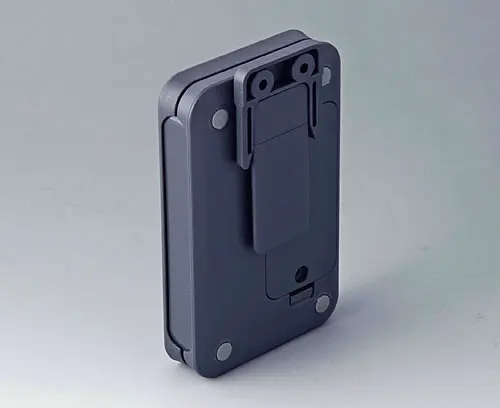

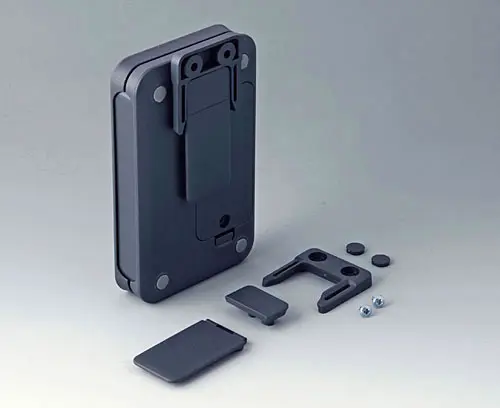

Combi-Clip

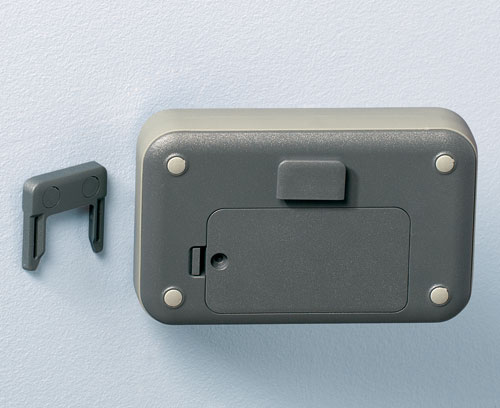

Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.
Supply1 set
添加到购物车内
A9050108
SOFT-CASE S
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9050108
SOFT-CASE S产品已添加到关注清单中
lava
51x82x14mm
,
A9051108
SOFT-CASE M
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9051108
SOFT-CASE M产品已添加到关注清单中
lava
65x105x19mm
,
A9051118
SOFT-CASE M
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
Version With battery compartment for 2 x AAA, accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9051118
SOFT-CASE M产品已添加到关注清单中
lava
65x105x19mm
A9052108
SOFT-CASE L
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9052108
SOFT-CASE L产品已添加到关注清单中
lava
73x117x24mm
,
A9052118
SOFT-CASE L
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
Version With battery compartment for 2 x AA, accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9052118
SOFT-CASE L产品已添加到关注清单中
lava
73x117x24mm
A9052128
SOFT-CASE L
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
Version With battery compartment for 1 x 9 V (PP3), accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9052128
SOFT-CASE L产品已添加到关注清单中
lava
73x117x24mm
A9053108
SOFT-CASE XL
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
Version Without battery compartment
Supply Top and bottom part, assembly kit
A9053108
SOFT-CASE XL产品已添加到关注清单中
lava
92x150x28mm
A9053118
SOFT-CASE XL
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.
Version With battery compartment for 4 x AA, accessible from the outside
Supply Top and bottom part, battery compartment lid, assembly kit
A9053118
SOFT-CASE XL产品已添加到关注清单中
lava
92x150x28mm
- 技术数据
-
图纸或资料
- 采购有关数据
长度
45 mm
宽度
27 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
- 3 维 PDF 版 （Acrobat Reader 软件） (产品旋转 360°，部件显示或隐藏等功能) 145 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008402.x_t 867 KB
- 00008402.STEP 1,600 KB
- 00008402.SAT 1,842 KB
Weight/1 part
7 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
特制机盒:我们可根据您的需求，对我们的机盒和旋钮进行精加工和精款加工。您将得到一个精工完毕可直接安装的机盒，仅需添入电子元件即可使用。 您可以在此处找到以下产品类型款式 A9152048请务必索取报价！
