A9152047 Combi-Clip

A9152047

Combi-Clip

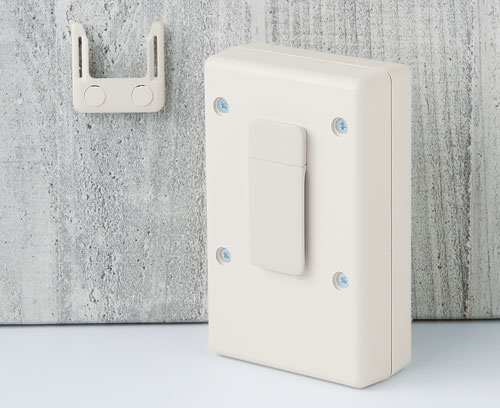

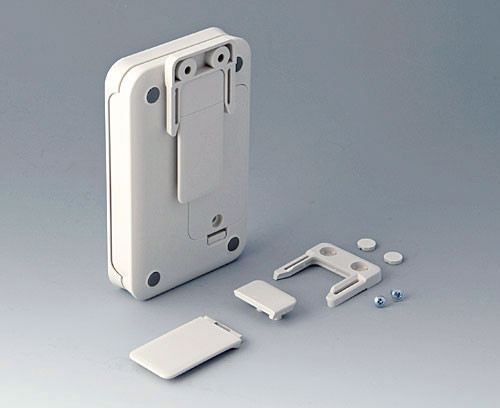

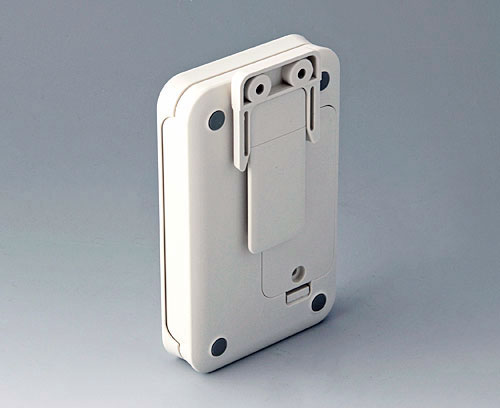

Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply

1 set

  • 应用于
  • 按客户要求修改加工
A9050107 SOFT-CASE S

A9050107

SOFT-CASE S Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards.Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

关闭

A9050107

SOFT-CASE S
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
51x82x14mm
IP 54 opt., IP 40
A9051107 SOFT-CASE M

A9051107

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

关闭

A9051107

SOFT-CASE M
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
65x105x19mm
IP 54 opt., IP 40
A9051117 SOFT-CASE M

A9051117

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AAA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

A9051117

SOFT-CASE M
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
65x105x19mm
IP 40
A9052107 SOFT-CASE L

A9052107

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

关闭

A9052107

SOFT-CASE L
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
73x117x24mm
IP 54 opt., IP 40
A9052117 SOFT-CASE L

A9052117

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

A9052117

SOFT-CASE L
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
73x117x24mm
IP 40
A9052127 SOFT-CASE L

A9052127

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 1 x 9 V (PP3), accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

A9052127

SOFT-CASE L
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
73x117x24mm
IP 40
A9053107 SOFT-CASE XL

A9053107

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version Without battery compartment

Supply Top and bottom part, assembly kit

关闭

A9053107

SOFT-CASE XL
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
92x150x28mm
IP 40
A9053117 SOFT-CASE XL

A9053117

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

关闭

A9053117

SOFT-CASE XL
产品已添加到关注清单中
ABS (UL 94 HB)
off-white RAL 9002
92x150x28mm
IP 40

Customising options for A9152047

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • 技术数据
  • 图纸或资料
  • 采购有关数据
颜色
off-white RAL 9002
Length
45 mm
Width
27 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
7 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
