Acessórios para Caixas
A9050209
SOFT-CASE S
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.
Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
Without battery compartment
SupplyTop and bottom part, assembly kit
Gerar seu Datasheet em PDF para A9050209
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Accessory "intermediate ring"
A9150011
Supply 1 intermediate ring
A9150011
Intermediate ring Smatt chromed
54x85x12mm

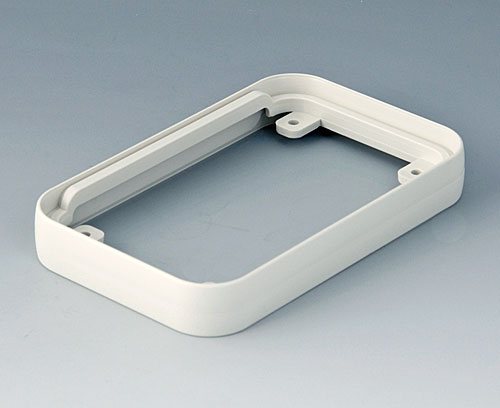

A9150017
Supply 1 intermediate ring
A9150017
Intermediate ring Soff-white RAL 9002
54x85x12mm
A9150018
Supply 1 intermediate ring
A9150018
Intermediate ring Slava
54x85x12mm
A9150118
Supply 1 intermediate ring
A9150118
Intermediate protection ring Svolcano
54x85x12mm

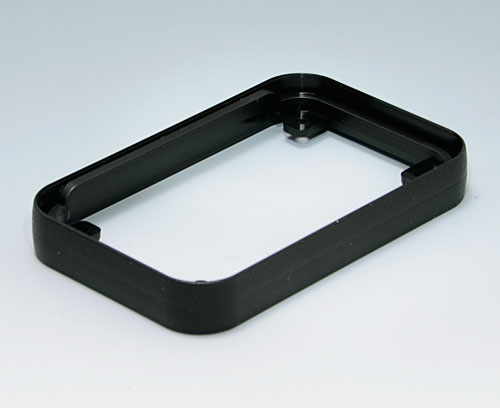

A9150219
Supply 1 intermediate ring
A9150219
Intermediate ring Sblack RAL 9005
54x85x12mm
Accessory "wall/holder"
A9152049
Supply 1 set
A9152049
Combi-Clipblack RAL 9005
45x27mm
Accessory "carrying"
A9100001
Supply 1 ring eyelet
A9100001
Ring eyeletvolcano
A9152049
Supply 1 set
A9152049
Combi-Clipblack RAL 9005
45x27mm
Accessory "screws"
A0304031
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Accessory

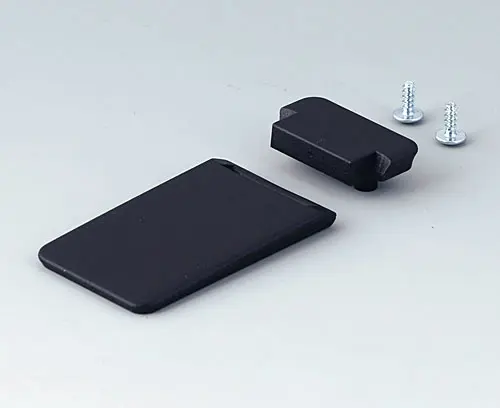

A9152059
Supply 1 tilt foot bar, assembly kit
A9152059
Tilt foot barblack RAL 9005
Necessary accessories: soft TPE intermediate ring,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 409 KB
- AutoCAD DWG-File 472 KB
- AutoCAD DXF-File 1 767 KB
- Visualização PDF 3D (Acrobat Reader) (gira o produto 360°, pode ocultar parte do desenho selecionado pelo mouse, acessórios...) 1 554 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00008009.x_t 4 705 KB
- 00008009.STEP 11 221 KB
- 00008009.SAT 12 632 KB
(OKW product)
Serviço de customização: Podemos modificar nossos gabinetes para atender às suas necessidades específicas. Os gabinetes serão entregues totalmente finalizados e prontos para uso. Tudo o que você precisa fazer é instalar seu equipamento no interior. Veja as opções de customização para A9050209 e não se esqueça de solicitar uma cotação!
