A9413638

SHELL-TYPE CASES V 190, Vers. V

Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply

1 top and base part, battery compartment lid, assembly kit

Desenho PDF 2D
Visualização PDF 3D
Baixar arquivos 3D/2D

Gerar seu Datasheet em PDF para A9413638

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho

Accessory to complete

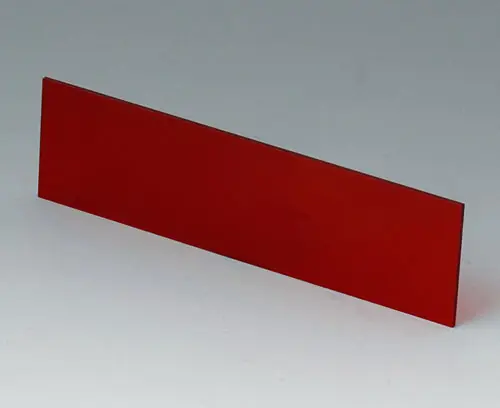

A9113113 Front / rear panel V, O 190

A9113113

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941333.

Supply 1 front panel

A9113113

Front / rear panel V, O 190
Produto adicionado a sua lista

red transparent
124,2x33,6x1,5mm

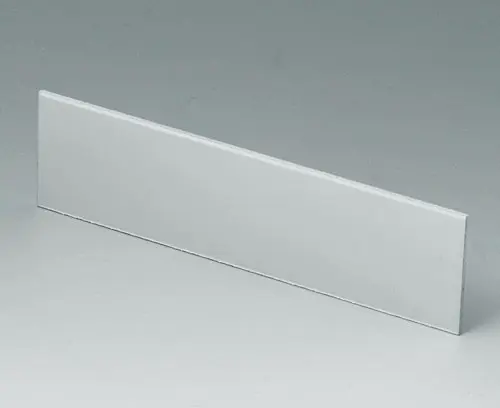

A9114111 Front / rear panel V, O 190

A9114111

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941333.

Supply 1 front panel

A9114111

Front / rear panel V, O 190
Produto adicionado a sua lista

matt anodised
124,2x33,6x1,5mm

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produto adicionado a sua lista

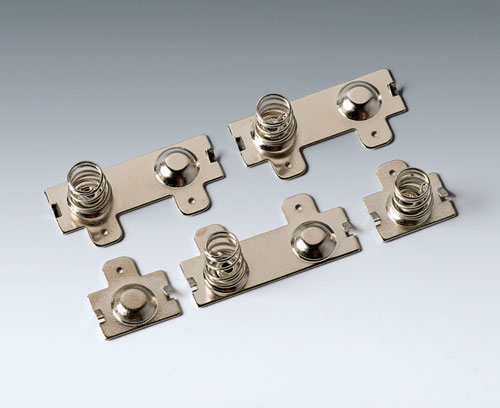

A9190013 Set of battery clips, 4 x AA

A9190013

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

A9190013

Set of battery clips, 4 x AA
Produto adicionado a sua lista

nickel-plated
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

A9250250

Battery spacer
Produto adicionado a sua lista

50x25x4mm

Accessory "protection"

A9113150 Contact-strips V, O, G 190

A9113150

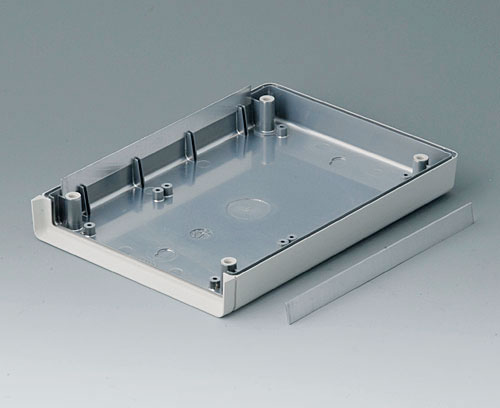

Contact-strips V, O, G 190 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

A9113150

Contact-strips V, O, G 190
Produto adicionado a sua lista

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produto adicionado a sua lista

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9210290

Anti-slide feet 9.5 x 3.8 mm
Produto adicionado a sua lista
transparent

Customising options for A9413638

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Width
138 mm
Depth
190 mm
Height
45 mm
PCB length, base
114 mm
PCB width, base
118 mm
PCB length, top
174 mm
PCB width, top
118 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
240 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha

Serviço de customização: Podemos modificar nossos gabinetes para atender às suas necessidades específicas. Os gabinetes serão entregues totalmente finalizados e prontos para uso. Tudo o que você precisa fazer é instalar seu equipamento no interior. Veja as opções de customização para A9413638 e não se esqueça de solicitar uma cotação!
