SHELL-TYPE CASES V 155, Vers. V
Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.
VersionWith battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)
Supply1 top and base part, battery compartment lid, assembly kit
Desenho PDF 2D
Visualização PDF 3D
Baixar arquivos 3D/2D
Baixar arquivos 3D/2D
Gerar seu Datasheet em PDF para A9408648
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Adicionar ao carrinho
Accessory to complete
A9108123

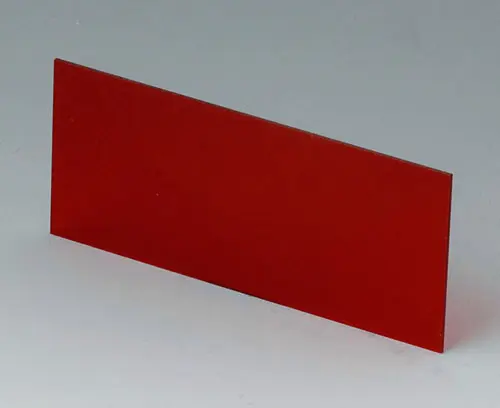

Front / rear panel V, O 155
Front panel for SHELL-TYPE CASE V and O. For case A940834.
Supply 1 front panel
A9108123
Front / rear panel V, O 155Produto adicionado a sua lista
red transparent
81,9x35,6x1mm
A9109121

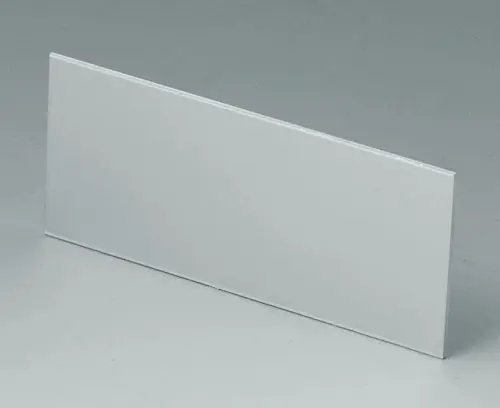

Front / rear panel V, O 155
Front panel for SHELL-TYPE CASE V and O. For case A940834.
Supply 1 front panel
A9109121
Front / rear panel V, O 155Produto adicionado a sua lista
matt anodised
81,9x35,6x1mm
Accessory "battery"
A9160003
Plug-in contact, 1 x 9 V (PP3)
Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)Produto adicionado a sua lista
A9190013
Set of battery clips, 4 x AA
For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.
Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative
A9190013
Set of battery clips, 4 x AAProduto adicionado a sua lista
nickel-plated
A9250250
Battery spacer
The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.
Supply 1 spacer
A9250250
Battery spacerProduto adicionado a sua lista
50x25x4mm
Accessory "protection"
A9108120
Contact-strips V, O, G 155
Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).
Supply 1 contact-strip
A9108120
Contact-strips V, O, G 155Produto adicionado a sua lista
Accessory "carrying"
A9100002
Ring eyelet
For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.
Supply 1 ring eyelet
A9100002
Ring eyeletProduto adicionado a sua lista
volcano
Accessory "screws"
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Produto adicionado a sua lista
Accessory
A9210290
Anti-slide feet 9.5 x 3.8 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply 2 rubber feet
A9210290
Anti-slide feet 9.5 x 3.8 mmProduto adicionado a sua lista
Customising options for A9408648
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dados técnicos
-
Desenho / Informações
- Purchasing Data
Width
95 mm
Depth
158 mm
Height
45 mm
PCB length, base
83 mm
PCB width, base
77 mm
PCB length, top
142 mm
PCB width, top
77 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 279 KB
- AutoCAD DWG-File 742 KB
- AutoCAD DXF-File 2 721 KB
- Visualização PDF 3D (Acrobat Reader) (gira o produto 360°, pode ocultar parte do desenho selecionado pelo mouse, acessórios...) 1 639 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012054.x_t 4 743 KB
- 00012054.STEP 13 184 KB
- 00012054.SAT 12 425 KB
Weight/1 part
159 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Alemanha
