B6801115

Terminal guards, with holes, 10.16

Easy assembly through snap-in installation of the case parts.

Version

3 poles (designed to allow the use of terminals, block 10.16)

Supply

1 piece

  • Usado para
  • Veja Opções de personalização
AltText

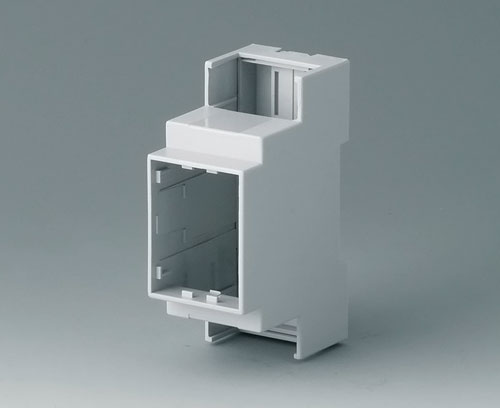

B6701100

RAILTEC C, 2 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH 35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Fechar

B6701100

RAILTEC C, 2 modules, Vers. I
Produto adicionado a sua lista
PC (UL 94 V-0)
light grey
36x90x58mm
AltText

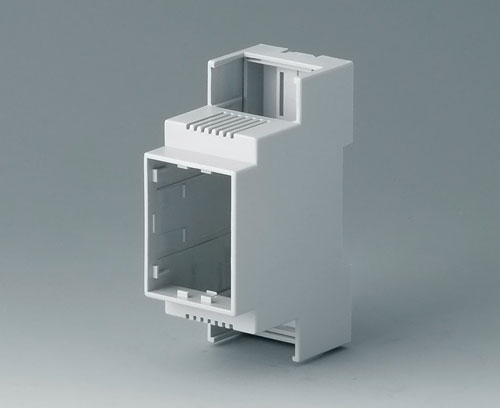

B6701102

RAILTEC C, 2 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Fechar

B6701102

RAILTEC C, 2 modules, Vers. II
Produto adicionado a sua lista
PC (UL 94 V-0)
light grey
36x90x58mm
AltText

B6701106

RAILTEC C, 2 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Fechar

B6701106

RAILTEC C, 2 modules, Vers. IV
Produto adicionado a sua lista
PC (UL 94 V-0)
light grey
36x90x58mm

Customising options for B6801115

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Colour
light grey
Pitch
10.16 mm
Poles
3
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Reino Unido
