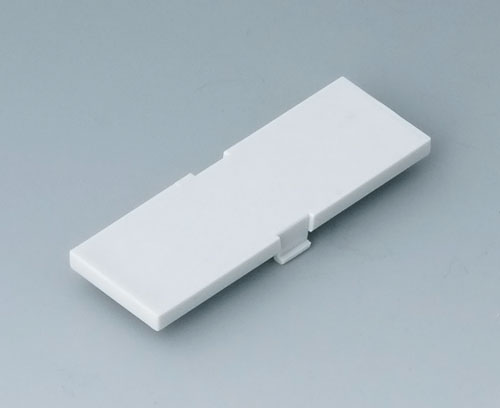

B6800100

Front panel, 1 module

Snap-in.

Supply

1 front panel

Desenho PDF 2D
Baixar arquivos 3D/2D

Gerar seu Datasheet em PDF para B6800100

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
B6700100 RAILTEC C, 1 module, Vers. I

B6700100

RAILTEC C, 1 module, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

B6700100

RAILTEC C, 1 module, Vers. I
Produto adicionado a sua lista

light grey
17,5x90x58mm
B6700102 RAILTEC C, 1 module, Vers. II

B6700102

RAILTEC C, 1 module, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

B6700102

RAILTEC C, 1 module, Vers. II
Produto adicionado a sua lista

light grey
17,5x90x58mm
B6700104 RAILTEC C, 1 module, Vers. III

B6700104

RAILTEC C, 1 module, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Front panel see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

B6700104

RAILTEC C, 1 module, Vers. III
Produto adicionado a sua lista

light grey
17,5x90x58mm

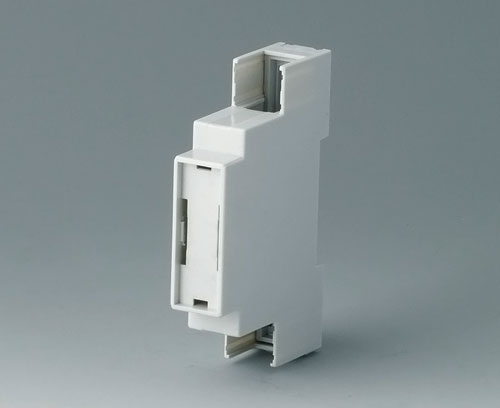

B6700106 RAILTEC C, 1 module, Vers. IV

B6700106

RAILTEC C, 1 module, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

B6700106

RAILTEC C, 1 module, Vers. IV
Produto adicionado a sua lista

light grey
17,5x90x58mm

Customising options for B6800100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
light grey
Standards
RoHS compliant
REACH compliant
Width
14 mm
Height
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
1 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK

Serviço de customização: Podemos modificar nossos gabinetes para atender às suas necessidades específicas. Os gabinetes serão entregues totalmente finalizados e prontos para uso. Tudo o que você precisa fazer é instalar seu equipamento no interior. Veja as opções de customização para B6800100 e não se esqueça de solicitar uma cotação!
