B6724445
RAILTEC SUP. 107, end section with foot
Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35).
Supply1 end section with foot
Desenho PDF 2D
Visualização PDF 3D
Baixar arquivos 3D/2D
Baixar arquivos 3D/2D
Gerar seu Datasheet em PDF para B6724445
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Adicionar ao carrinho
System components to complete
B6724440
RAILTEC SUP. 107, intermediate part
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.
Supply 1 intermediate part
B6724440
RAILTEC SUP. 107, intermediate partProduto adicionado a sua lista
light grey
118x18,5x17,5mm

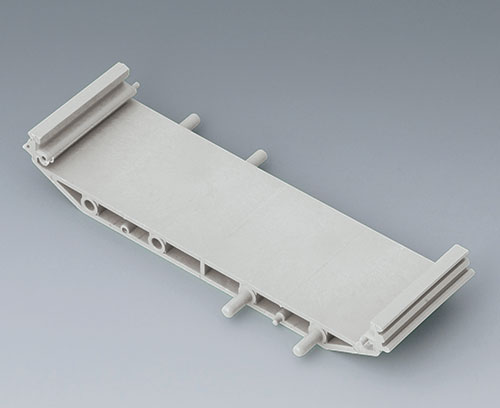

B6724441
RAILTEC SUP. 107, intermediate part
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.
Supply 1 intermediate part
B6724441
RAILTEC SUP. 107, intermediate partProduto adicionado a sua lista
light grey
118x35x17,5mm

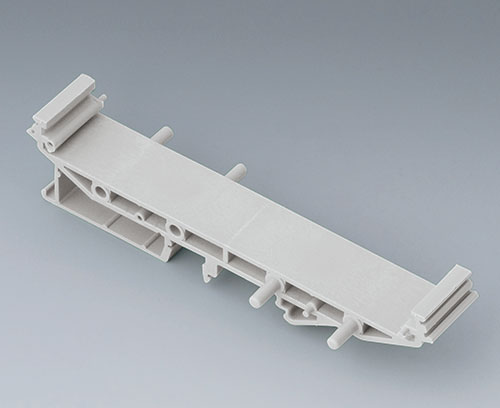

B6724442
RAILTEC SUP. 107, intermediate p. + foot
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35, TH15 and G32).
Supply 1 intermediate part with foot
B6724442
RAILTEC SUP. 107, intermediate p. + footProduto adicionado a sua lista
light grey
118x18,5x27,5mm

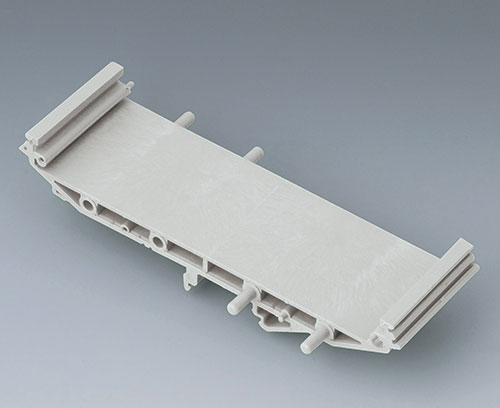

B6724443
RAILTEC SUP. 107, intermediate p. + foot
Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts. Suitable for DIN EN 60715 (TH35, TH15 and G32).
Supply 1 intermediate part with foot
B6724443
RAILTEC SUP. 107, intermediate p. + footProduto adicionado a sua lista
light grey
118x35x27,5mm
Accessory "wall/holder"

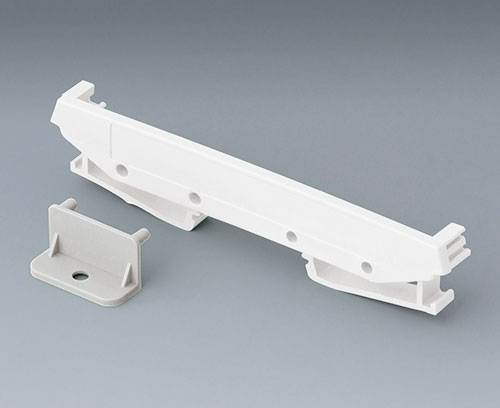

B6824543
Wall suspension element with foot, SUP.
Allows direct wall mounting, suitable for end section with foot.
Supply 2 pieces as set
B6824543
Wall suspension element with foot, SUP.Produto adicionado a sua lista
light grey
Customising options for B6724445
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dados técnicos
-
Desenho / Informações
- Purchasing Data
Length
118 mm
Width
11,5 mm
Height
27,5 mm
PCB length, base
107 mm
PCB width, base
10 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 174 KB
- AutoCAD DWG-File 366 KB
- AutoCAD DXF-File 1 065 KB
- Visualização PDF 3D (Acrobat Reader) (gira o produto 360°, pode ocultar parte do desenho selecionado pelo mouse, acessórios...) 41 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00006811.x_t 271 KB
- 00006811.STEP 610 KB
- 00006811.SAT 432 KB
Weight/1 part
16 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
UK
