RAILTEC SUP. 72, end section

Modular design with plug-in connection. Minimum components for one support: 2 end sections. Combining these parts with intermediate parts (sep. articles) allows optimum adaptation to the relevant size requirements. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply

1 end section

Desenho PDF 2D
Visualização PDF 3D
Baixar arquivos 3D/2D

Gerar seu Datasheet em PDF para B6724334

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho

System components to complete

B6724330 RAILTEC SUP. 72, intermediate part

B6724330

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

B6724330

RAILTEC SUP. 72, intermediate part
Produto adicionado a sua lista

light grey
82x11,25x16mm
B6724331 RAILTEC SUP. 72, intermediate part

B6724331

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

B6724331

RAILTEC SUP. 72, intermediate part
Produto adicionado a sua lista

light grey
82x22,5x16mm
B6724332 RAILTEC SUP. 72, intermediate part

B6724332

RAILTEC SUP. 72, intermediate part Intermediate parts allow optimum adaptation to the relevant size requirements. Modular design with plug-in connection. 2 end sections with/without foot (sep. articles) necessary. The PCB widths are obtained by adding the relevant dimensions of the individual parts.

Supply 1 intermediate part

B6724332

RAILTEC SUP. 72, intermediate part
Produto adicionado a sua lista

light grey
82x45x16mm
B6724337 RAILTEC SUP. 72, foot

B6724337

RAILTEC SUP. 72, foot Can be used for intermediate part and end section without foot. Suitable for DIN EN 60715 (TH35, TH15 and G32).

Supply 1 foot

B6724337

RAILTEC SUP. 72, foot
Produto adicionado a sua lista

light grey

Accessory "wall/holder"

B6824532 Wall suspension element for SUP. 72

B6824532

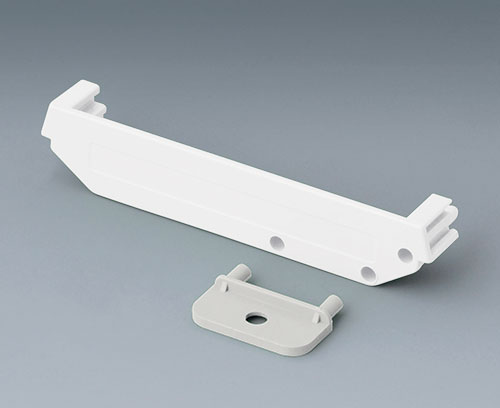

Wall suspension element for SUP. 72 Allows direct wall-mounting, suitable for end section.

Supply 2 pieces as set

B6824532

Wall suspension element for SUP. 72
Produto adicionado a sua lista

light grey

Customising options for B6724334

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
light grey
Standards
RoHS compliant
REACH compliant
Length
82 mm
Width
22,2 mm
Height
16 mm
PCB length, base
72 mm
PCB width, base
21 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
7 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK
