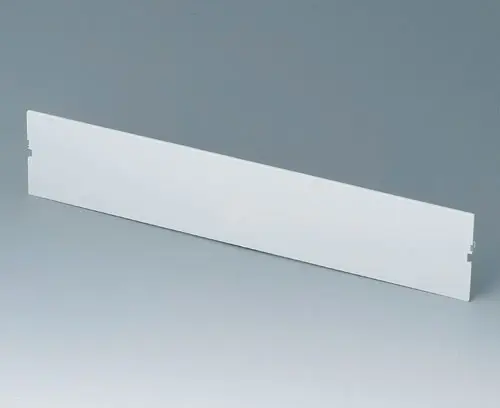

B6606180 Front panel, 12 modules, Vers. VI

B6606180

Front panel, 12 modules, Vers. VI

Snap-in.

Supply

1 front panel

  • Usado para
  • Veja Opções de personalização
B6506121 RAILTEC B, 12 modules, Vers. VI

B6506121

RAILTEC B, 12 modules, Vers. VI Enclosure with open connection sides - for max. 16 terminal guards in flat version, 8 terminal guards in high version or 8 partition plates (acc.). Fast and simple locking capability onto DIN rails EN 60715 TH35. Flexible assembly of PCBs in all 3 directions.

Version Individual configuration see accessories

Supply 1 base part with locking clip, 1 top part

Fechar

B6506121

RAILTEC B, 12 modules, Vers. VI
Produto adicionado a sua lista
PC (UL 94 V-0)
light grey RAL 7035
210x90x58mm

Customising options for B6606180

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Colour
light grey
Width
206 mm
Height
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
15 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Dinamarca
