Acessórios para Caixas
A9305019
Wall suspension elements

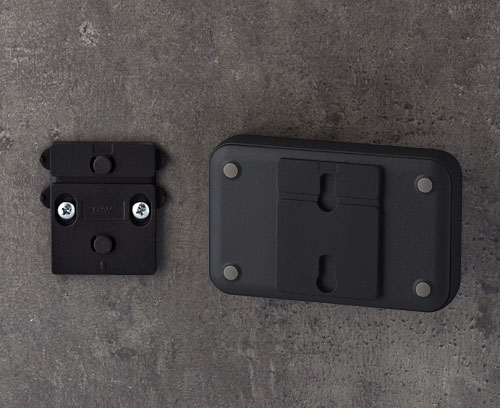

Universal wall suspension element suitable for small plastic enclosures with a flat base.

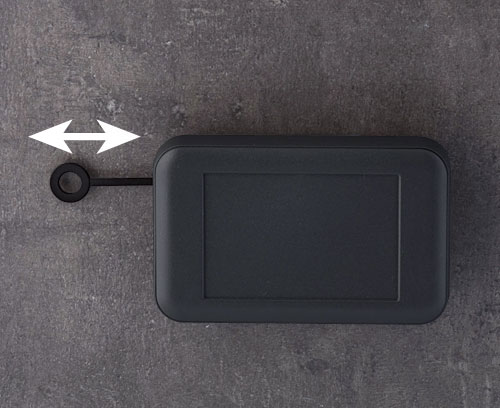

The adapter (45 x 58 mm) is attached to the enclosure with a double-sided adhesive foil*. This makes it possible to mount the enclosure quickly and easily on the holder, which can be screwed to the wall - attachment with adhesive foils* is optionally also possible here (separate article available as an accessory). Removal protection by means of a locking pin.
*Customised foils consisting of double-sided adhesive foil with foam rubber carrier.
1 adapter, 2 adhesive foils, 1 holder, 2 locking pins
Desenho PDF 2D
Visualização PDF 3D
Baixar arquivos 3D/2D
Baixar arquivos 3D/2D
Gerar seu Datasheet em PDF para A9305019
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Adicionar ao carrinho
Accessory
A9305147
Adhesive foil holder
For self-adhesive installation of the holder (from wall suspension elements A9305017/ A9305019). Double-sided adhesive foil with foam rubber carrier, 42 x 20 mm each.
Supply 2 adhesive foils
A9305147
Adhesive foil holderProduto adicionado a sua lista
- Dados técnicos
-
Desenho / Informações
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 194 KB
- AutoCAD DWG-File 345 KB
- AutoCAD DXF-File 1 106 KB
- Visualização PDF 3D (Acrobat Reader) (gira o produto 360°, pode ocultar parte do desenho selecionado pelo mouse, acessórios...) 101 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00020242.x_t 451 KB
- 00020242.step 1 131 KB
- 00020242.sat 1 131 KB
Weight/1 part
32 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Alemanha
