B2213215

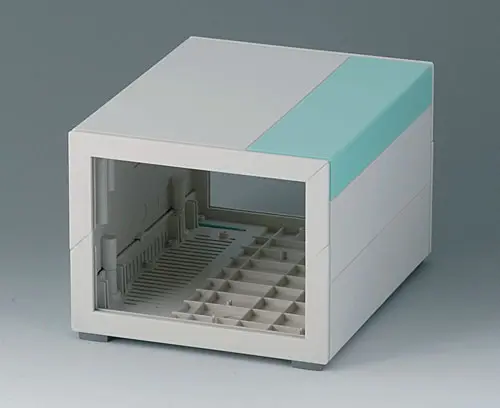

MEDITEC E 160, without handle bar

Complete case. Ideally suited to accommodate single-Eurocards 100 x 160 mm. Two identical shells are joined together so that they overlap. Side trims easily fitted. Non-slipping case feet are fixed by screws to ensure a firm and stable support.

Supply

2 L-Shells, 2 side trims without ventilation (colour lagoon), 2 side panels, assembly kit, 4 case-feet

Desenho PDF 2D
Visualização PDF 3D
Baixar arquivos 3D/2D

Gerar seu Datasheet em PDF para B2213215

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho

Accessory to complete

B2116007 Sloping control panel E

B2116007

Sloping control panel E Ergonomically sloped operation front. 2-part construction for easy access of components. Recessed area for membrane keyboards. Reading angle wall: 60°, desk top 30°.

Version E (for MEDITEC E160 or E220)

Supply 1 angle, 1 cover, assembly kit

B2116007

Sloping control panel E
Produto adicionado a sua lista

off-white RAL 9002

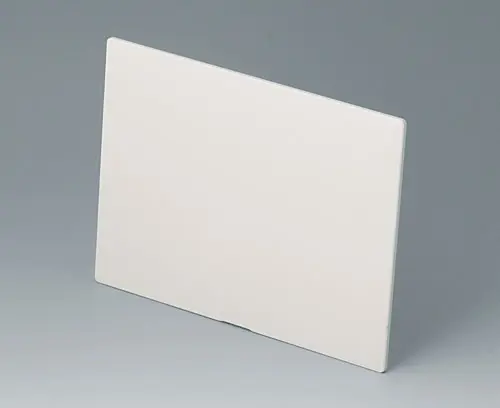

B2116407 Front / rear panel Z1

B2116407

Front / rear panel Z1 For cases with 1 side panel per side.

Supply 1 front panel Z1

B2116407

Front / rear panel Z1
Produto adicionado a sua lista

off-white RAL 9002
141,6x105,6x3mm

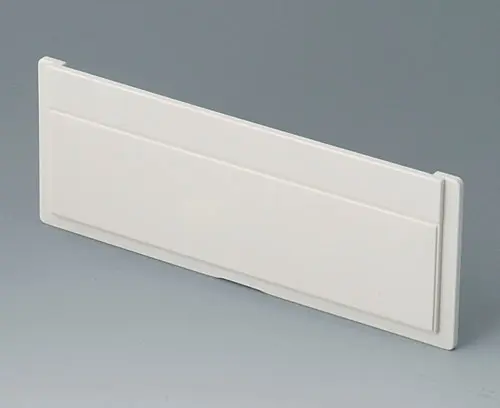

B2116707 Infill panel E

B2116707

Infill panel E When using the MEDITEC-cases with 1 intermediate part each right and left hand (case height = 124 mm) and operating front. The front cover locks the access to the case's inside; usable on top of or under the operaring front alternatively.

Version E

Supply 1 front cover (for locking)

B2116707

Infill panel E
Produto adicionado a sua lista

off-white RAL 9002
142x55x5mm

Accessory "wall/holder"

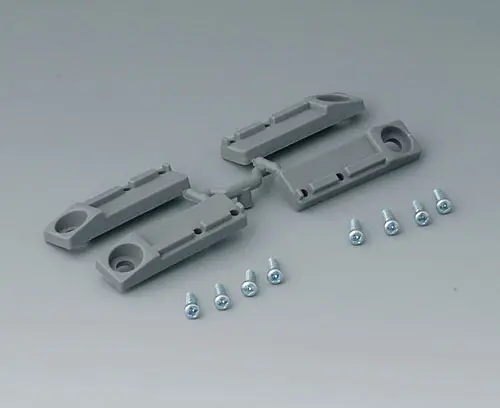

B2133012 Wall mounting brackets

B2133012

Wall mounting brackets Wall mounting brackets for simple external wall assembly.

Supply 4 Wall mounting brackets, screws

B2133012

Wall mounting brackets
Produto adicionado a sua lista

volcano

Accessory "screws"

A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

A9199008

Set of screws
Produto adicionado a sua lista

Accessory

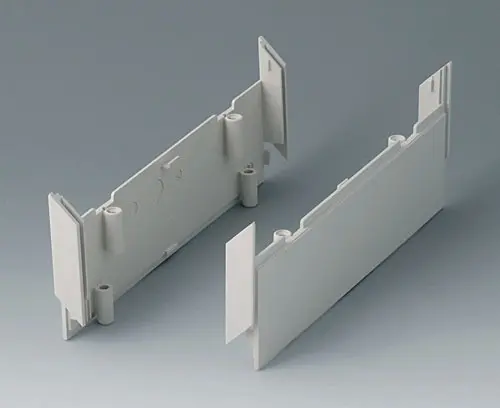

B2031007 Side panels 160, without holes

B2031007

Side panels 160, without holes Side panels without hole for 50 mm additional height. Suitable for Meditec D160/E160.

Supply 2 side panel, set of screws

B2031007

Side panels 160, without holes
Produto adicionado a sua lista

off-white RAL 9002

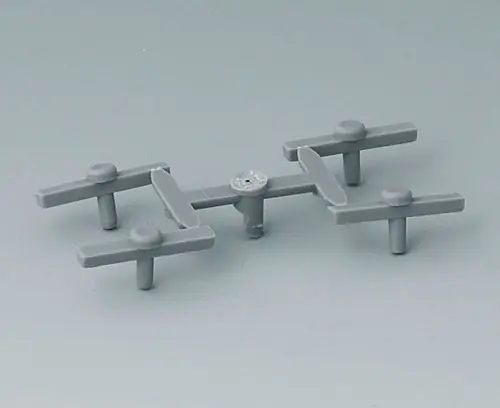

B2134012 Stacking elements

B2134012

Stacking elements Stacking elements for secure sandwiching several devices. Screwless fixing in pre-shaped receivers.

Supply 4 stacking elements

B2134012

Stacking elements
Produto adicionado a sua lista

volcano

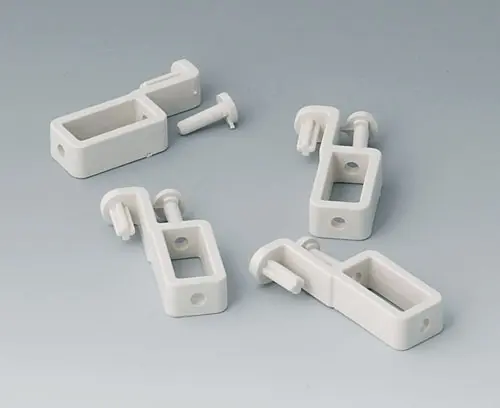

B2135017 Connectors

B2135017

Connectors For secure connection of 2 side panels. Screwless assembly, simply pin and lock.

Supply 4 connectors

B2135017

Connectors
Produto adicionado a sua lista

off-white RAL 9002
