Acessórios para Caixas
Snaptec

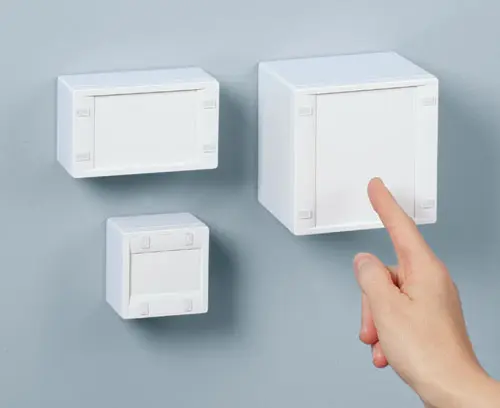

Caixas IP 65 com Montagem Rápida
Estas práticas caixas apresentam uma técnica de montagem combinada com encaixe racional para instalação mais rápida do sistema eletrônico/componentes elétricos.

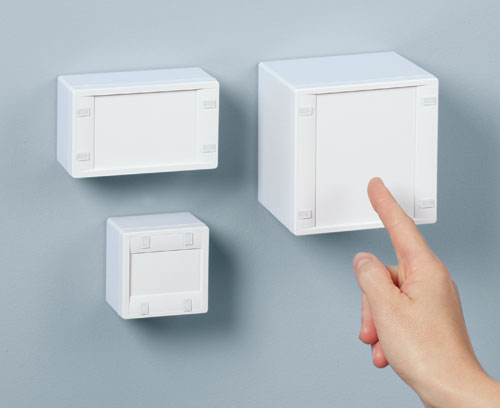

- modernas caixas de montagem em parede com baixo custo
- encaixes nas tampas para montagem mais fácil

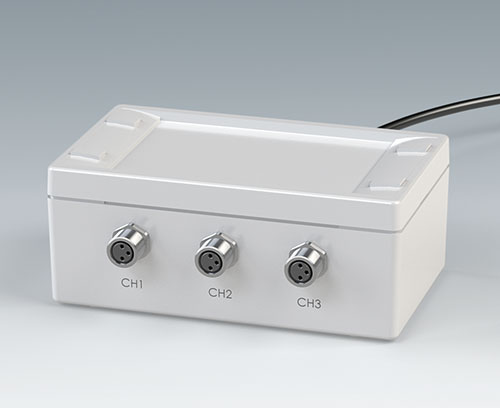

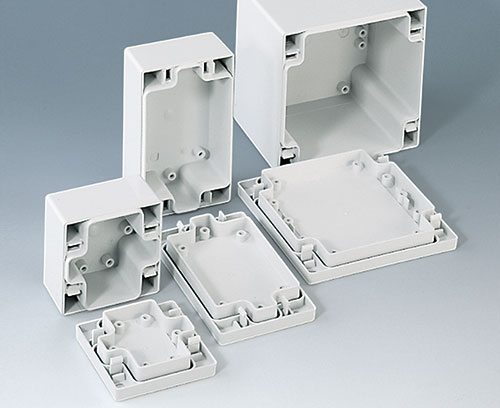

- partes altas inferiores garantem máxima superfície de prensa cabos na montagem e nas interfaces
- rápida desmontagem/manutenção com ferramenta de abertura ou chave de fenda
- abertura em nylon nos orifícios de acesso para fixação da caixa

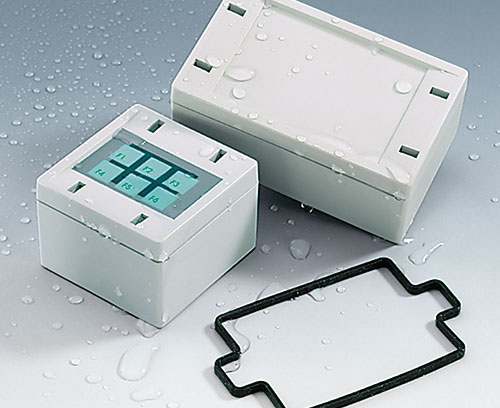

- alta classe de proteção IP 65; vedação da junta pré-montada ao topo
- tampa recessada para teclado de membrana ou rótulo

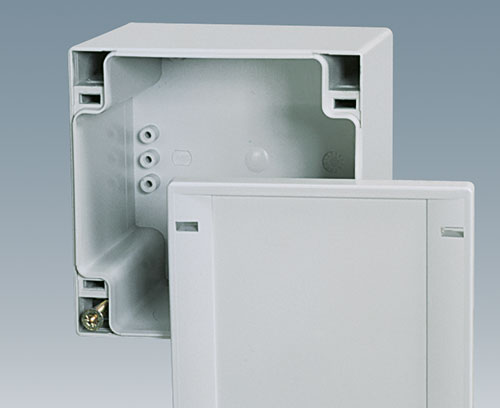

- eixos dos parafusos ocultos para fácil montagem em parede

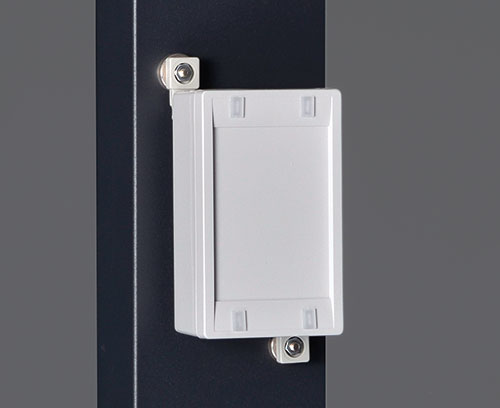

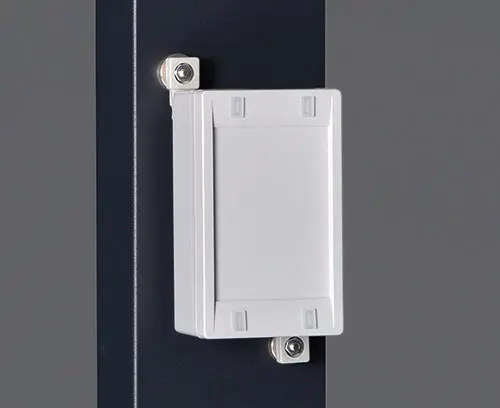

- parede externa alternativa para suportes de montagem
- pilares de parafusos internos para PCBs etc.
Application Fields
Pequenos aparelhos com componentes eletro-técnicos para baixa tensão, por exemplo, potenciômetros, controladores de tempo, unidades codificadas de controle etc. Ou aplicações de baixa tensão com componentes eletro-mecânicos por exemplo relés, sob tensão em estreita liberação, fusíveis etc. Além disso, sistemas de automação médicas e domésticas.
C3006061

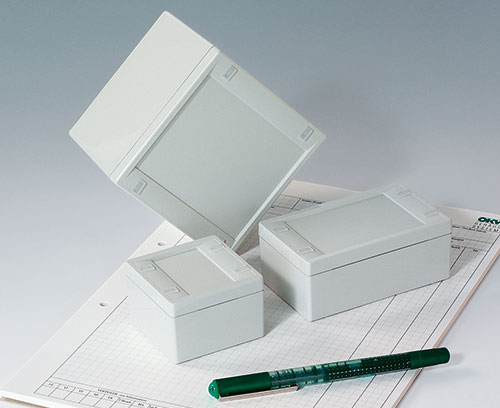

SNAPTEC 60 x 60
Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.

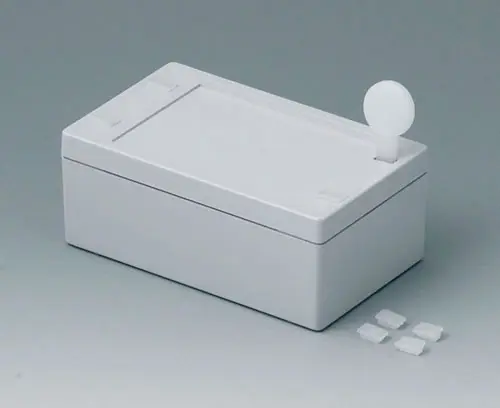

Supply 1 top and base part with sealing, cover for the locking openings, dismantling key
C3006061
SNAPTEC 60 x 60Produto adicionado a sua lista
light grey RAL 7035
60x60x40mm
C3006101
SNAPTEC 60 x 100
Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.
Supply 1 top and base part with sealing, covers for the locking openings, dismantling key
C3006101
SNAPTEC 60 x 100Produto adicionado a sua lista
light grey RAL 7035
60x100x40mm
C3010101
SNAPTEC 100 x 100
Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.
Supply 1 top and base part with sealing, covers for the locking openings, dismantling key
C3010101
SNAPTEC 100 x 100Produto adicionado a sua lista
light grey RAL 7035
100x100x80mm
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Produto adicionado a sua lista
C2299028
Wall mounting brackets

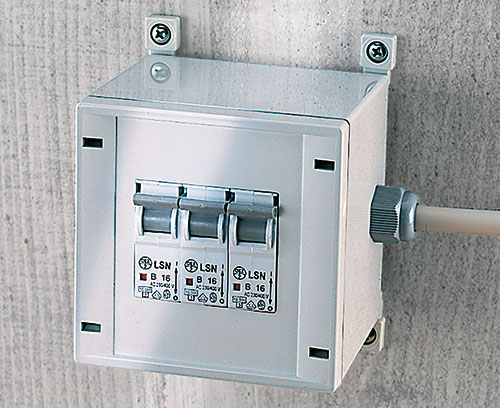

Elements for exterior wall mounting after assembly of the unit.
Supply 4 pieces including fixing elements
C2299028
Wall mounting bracketsProduto adicionado a sua lista
light grey RAL 7035
C2306917
Pressure equalisation element M6x0.75
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2306917
Pressure equalisation element M6x0.75Produto adicionado a sua lista
light grey RAL 7035
C2310917
Pressure equalisation element M10x1
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2310917
Pressure equalisation element M10x1Produto adicionado a sua lista
light grey RAL 7035
C2316147
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.
Supply 1 cable grommet
C2316147
Cable grommetProduto adicionado a sua lista
light grey RAL 7035
C2320137
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply 1 cable grommet
C2320137
Cable grommetProduto adicionado a sua lista
light grey RAL 7035
C2320147
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply 1 cable grommet
C2320147
Cable grommetProduto adicionado a sua lista
light grey RAL 7035
Opções para customizadas Snaptec
O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
