Acessórios para Caixas
Smart-Box
Caixas com Avançado IP 66

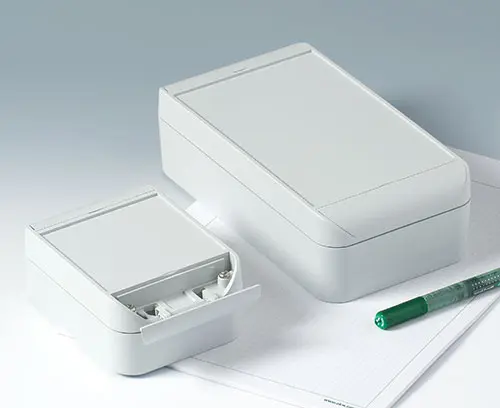

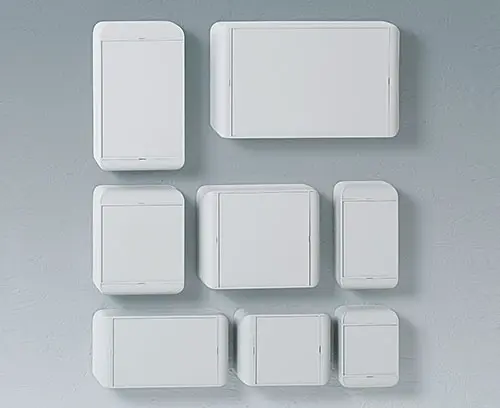

O ergonômico design com cantos arredondados da série SMART-BOX é projetado para melhorar o impacto visual e qualidade tátil de seus eletrônicos industriais.
- projeto atraente; guarnições de encaixe articuladas escondem todas as fixações da caixa
- material de alta qualidade ASA+PC (UL 94 V-0) para uso em condições adversas; também é retardador de chama e auto extinguível
- gabinete com material permeável a radiofrequência (RF)

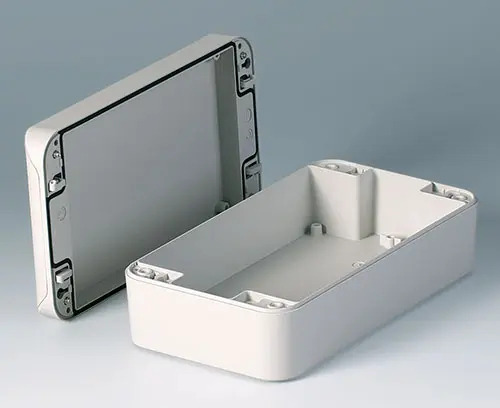

- alta proteção IP 66 (largura 90/110/130/150), IP 65 (largura 170); com juntas pré-montadas de vedação na parte superior
- parafusos de alta qualidade, de liga de aço inoxidável A2 com alta resistência à corrosão - mesmo contra substâncias agressivas
- uso universal para montagem na parede e aplicativos de mesa de trabalho
- eixos de parafuso para montagem em parede escondida sob as guarnições articuladas

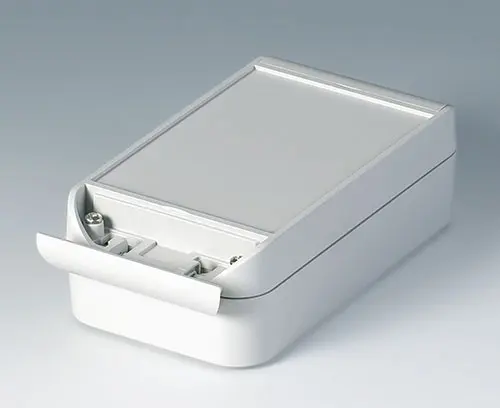

- pés da caixa (acessório), simples snap-in garante o posicionamento da mesa de trabalho antiderrapante

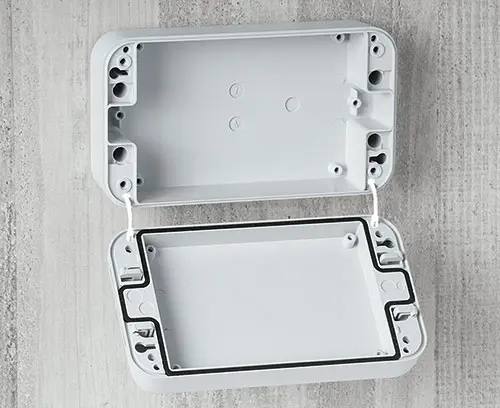

- duas tampas de retenção em tiras de plástico inclusas

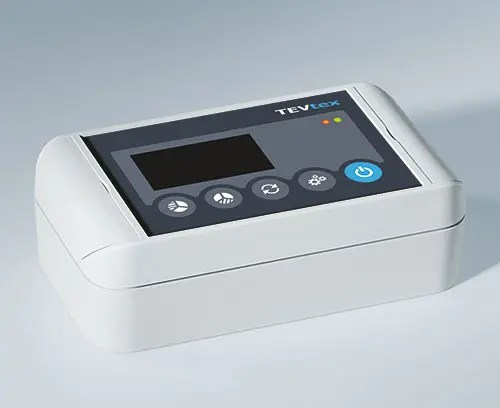

- área de operação recessada para proteger o teclado de membrana; superfície adicional para rótulos na parte de baixo

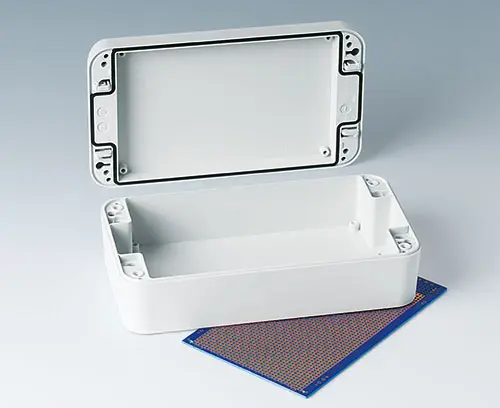

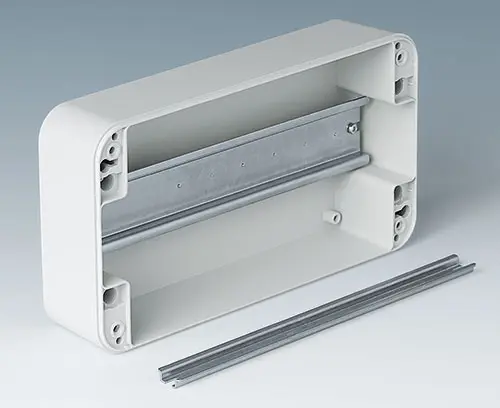

- pilares de fixação internos de PCB e trilhos DIN
Learn more!
Read our blog posts on smart-box View blog posts >>
Application Fields

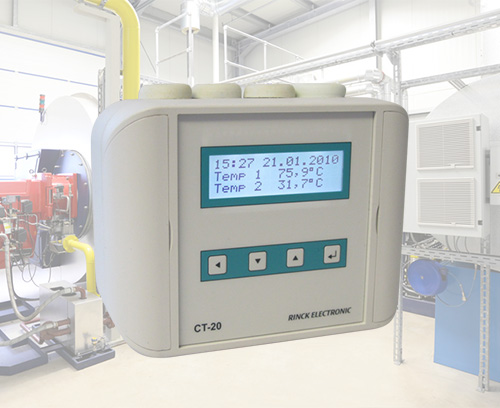

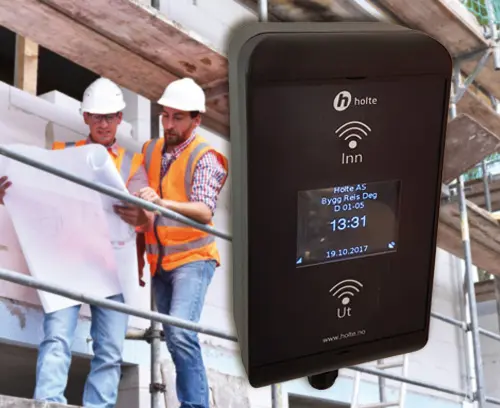

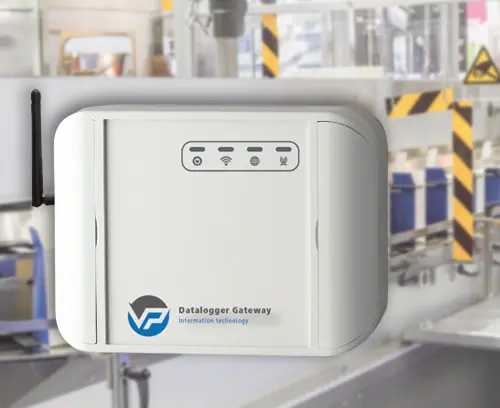

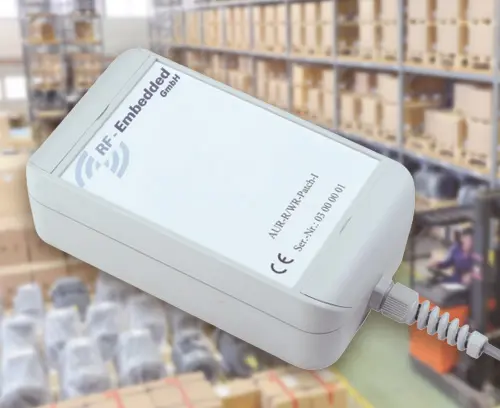

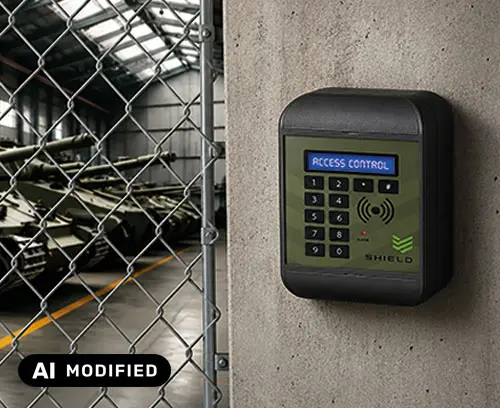

Ideal para aplicações elétricas e eletrônicas em projeto orientado, por exemplo, aquecimento, ar condicionado e engenharia de ventilação, controle e sistema de engenharia, tecnologia de segurança, IoT/IIoT, smart factory, industrie 4.0, etc.
C6009121
SMART-BOX WIDTH 90
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention

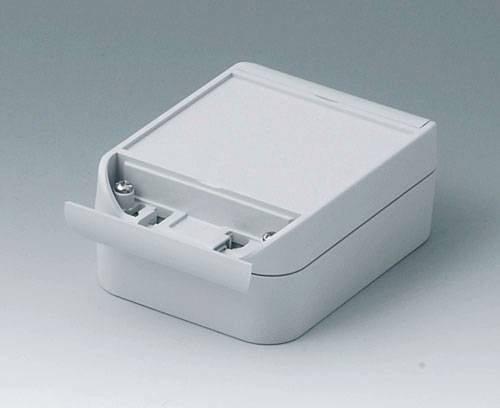

C6009121
SMART-BOX WIDTH 90Produto adicionado a sua lista
light grey RAL 7035
120x90x50mm

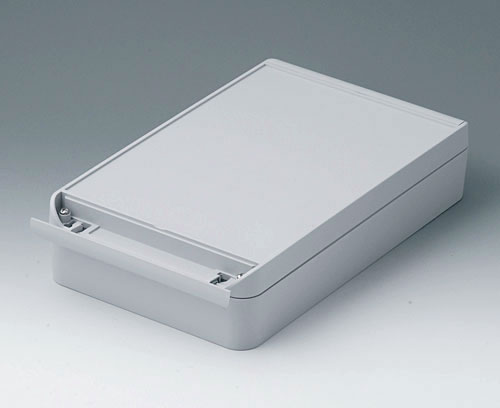

C6009161
SMART-BOX WIDTH 90
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6009161
SMART-BOX WIDTH 90Produto adicionado a sua lista
light grey RAL 7035
160x90x50mm

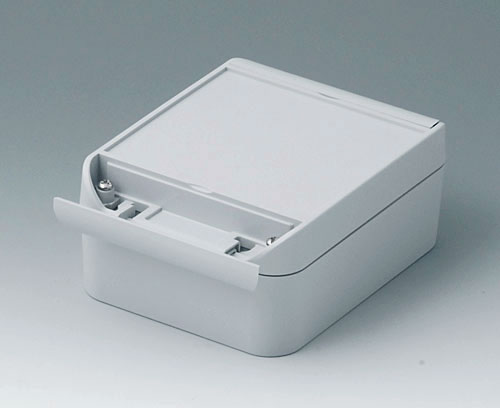

C6011141
SMART-BOX WIDTH 110
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6011141
SMART-BOX WIDTH 110Produto adicionado a sua lista
light grey RAL 7035
140x110x60mm

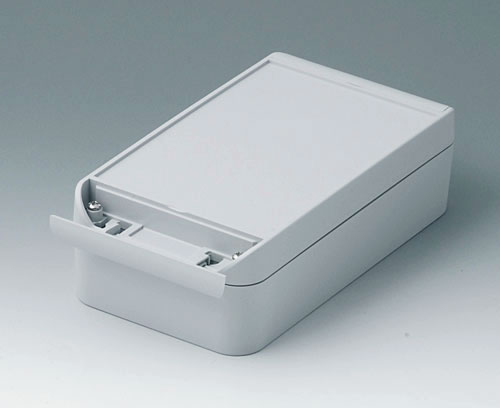

C6011201
SMART-BOX WIDTH 110
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6011201
SMART-BOX WIDTH 110Produto adicionado a sua lista
light grey RAL 7035
200x110x60mm

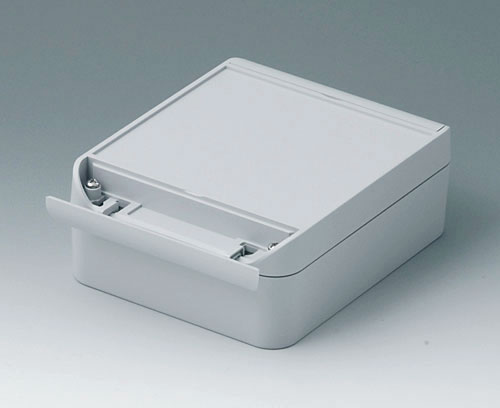

C6013161
SMART-BOX WIDTH 130
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6013161
SMART-BOX WIDTH 130Produto adicionado a sua lista
light grey RAL 7035
160x130x60mm
C6013221
SMART-BOX WIDTH 130
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6013221
SMART-BOX WIDTH 130Produto adicionado a sua lista
light grey RAL 7035
220x130x60mm

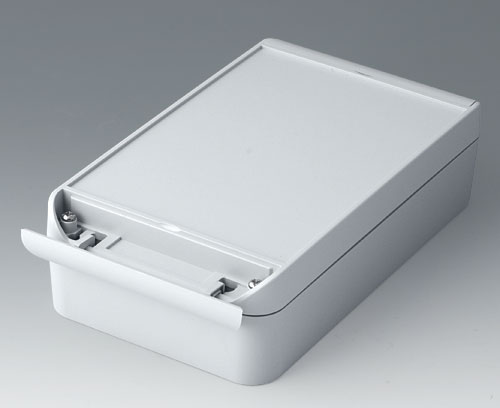

C6015181
SMART-BOX WIDTH 150
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims (hinged), assembly kit incl. cover retention
C6015181
SMART-BOX WIDTH 150Produto adicionado a sua lista
light grey RAL 7035
180x150x60mm
C6017281
SMART-BOX WIDTH 170
Four-part plastic enclosure, ideal for design orientated electrical and electronic applications. The sealing is already prefitted in the top. Screw fixing outside of the sealing area. Resessed operating area to protect the membrane keyboard. Fastening pillars for PCBs and DIN-rails.
Supply 1 base and top part with sealing, 2 trims, 1 assembly kit incl. cover retention
C6017281
SMART-BOX WIDTH 170Produto adicionado a sua lista
light grey RAL 7035
280x170x60mm
A0306031
Self-tapping screws 3 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Produto adicionado a sua lista
A0308031
Self-tapping screws 3 x 8 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308031
Self-tapping screws 3 x 8 mm (PZ1)Produto adicionado a sua lista
A0308132
Self-tapping screw 3 x 8 mm (T10)
Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0308132
Self-tapping screw 3 x 8 mm (T10)Produto adicionado a sua lista
A9325018
Pole/mast mounting bracket
For the secure and stable mounting of IP rated electronic enclosures to poles, masts, and pipes using cable ties or stainless steel screw bands, suitable for pole diameters from 30 mm. The bracket is attached to the rear of the enclosure (four drilled holes required) and is manufactured from UV resistant material.
Note:
Every application (environment, sealing requirements, enclosure size/version, mast diameter, etc.) is different. For this reason, no mounting screws, cable ties or stainless steel screw bands are supplied; only the mast/pipe bracket is included. However, on request, we can provide a wide range of solutions tailored precisely to the intended application.
Supply 1 pole/mast mounting bracket
A9325018
Pole/mast mounting bracketProduto adicionado a sua lista
anthracite grey RAL 7016
100x100x20mm

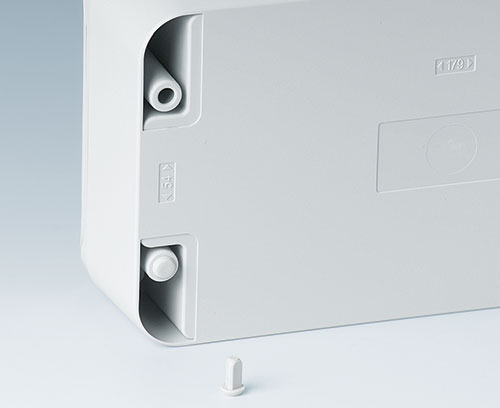

C2299018
Case feet
When using the case for desktop applications.
Supply 4 case feet
C2299018
Case feetProduto adicionado a sua lista
C2306917
Pressure equalisation element M6x0.75
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2306917
Pressure equalisation element M6x0.75Produto adicionado a sua lista
light grey RAL 7035
C2310917
Pressure equalisation element M10x1
Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2310917
Pressure equalisation element M10x1Produto adicionado a sua lista
light grey RAL 7035
C2316147

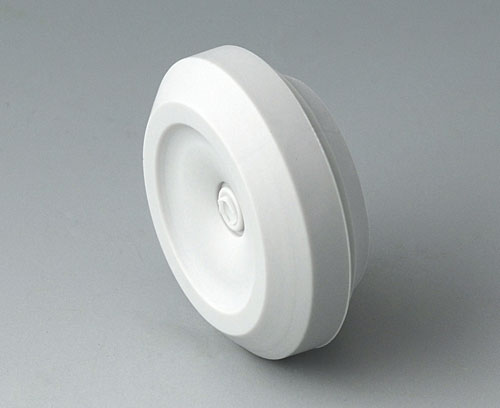

Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.
Supply 1 cable grommet
C2316147
Cable grommetProduto adicionado a sua lista
light grey RAL 7035

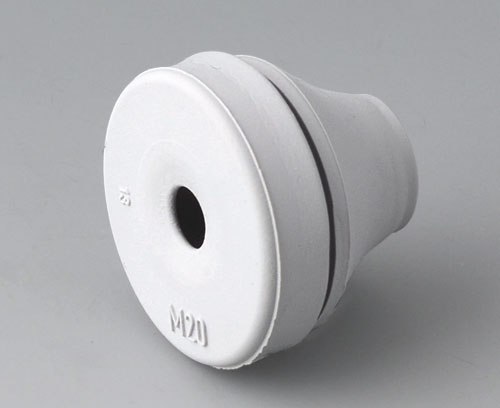

C2320137
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply 1 cable grommet
C2320137
Cable grommetProduto adicionado a sua lista
light grey RAL 7035
C2320147
Cable grommet
Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.
Supply 1 cable grommet
C2320147
Cable grommetProduto adicionado a sua lista
light grey RAL 7035

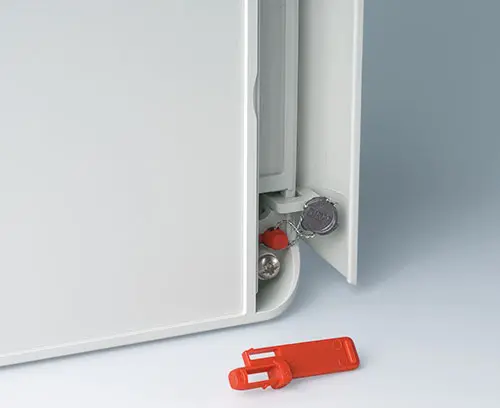

C6100006

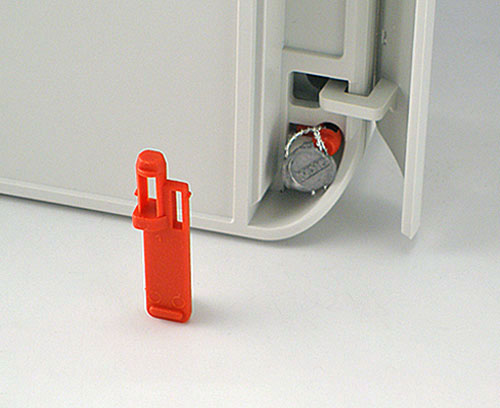

Security plug
For use with lead tags.
Supply 1 plug
C6100006
Security plugProduto adicionado a sua lista
red
C6100016
Set of security
For use with lead tags.
Supply 2 plugs
C6100016
Set of securityProduto adicionado a sua lista
red

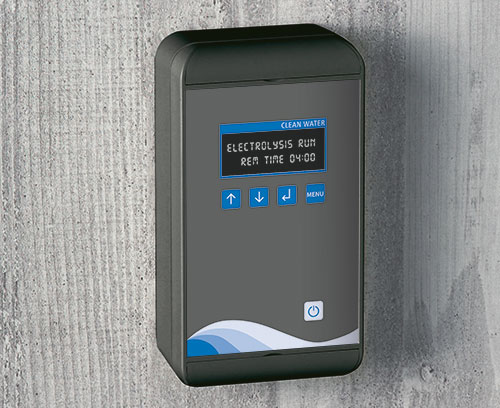

Opções para customizadas Smart-Box
O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
