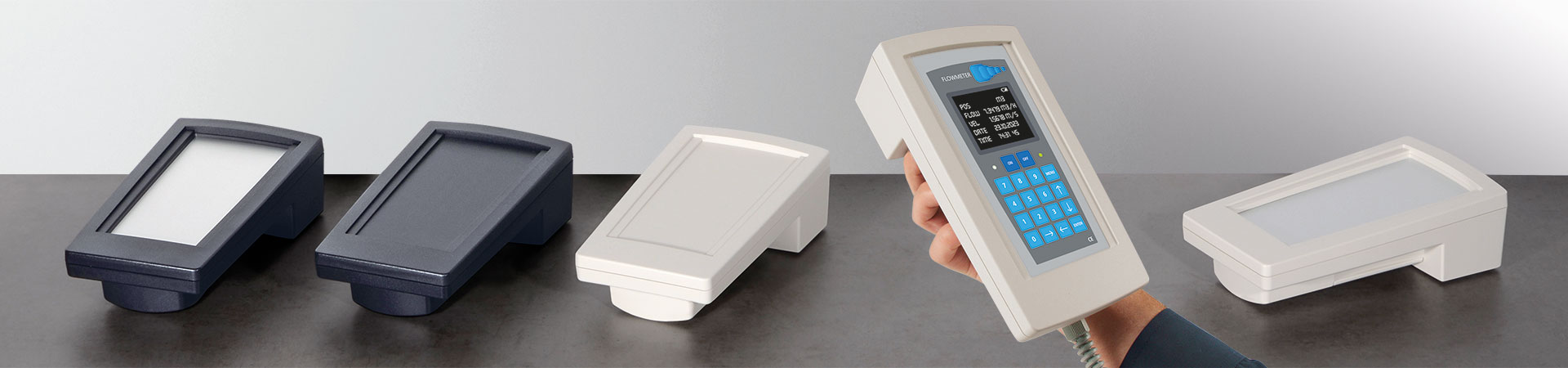

Hand-Terminal

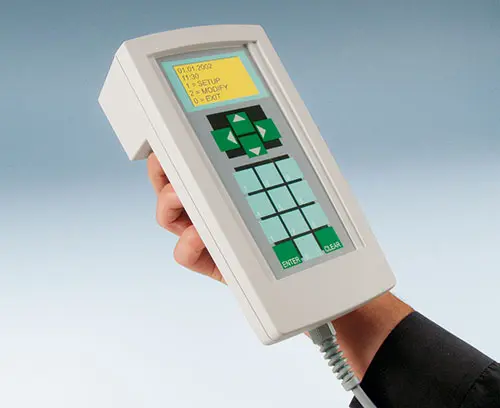

Caixas Portáteis para Sistemas de Controle de Produção e para Exterior

Estas caixas resistentes, atraentes e altamente funcionais são projetadas especificamente para equipamentos eletrônicos pesados e portáteis.

  • material resistente ao impacto

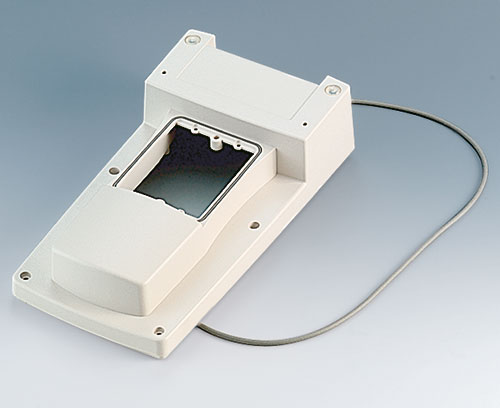

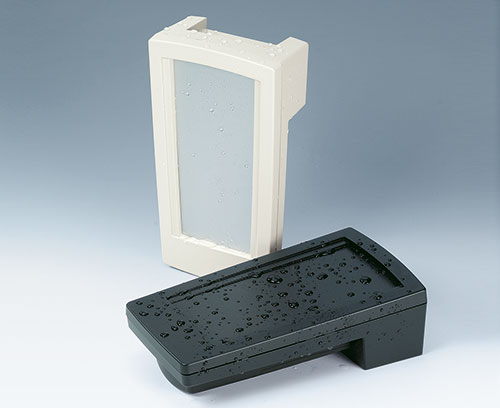

  • robusta com uma alta classe de proteção até IP 65 (kit de selagem como acessório)

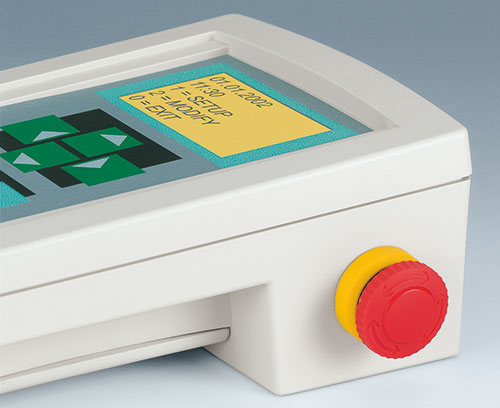

  • muito espaço para elementos de operação, displays, interruptor de parada de emergência, permite inclusão de chaves etc.

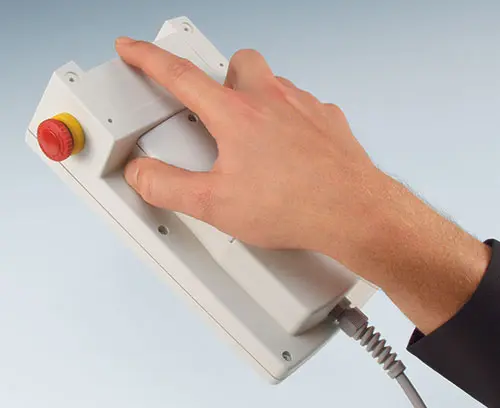

  • ergonomia para aperto de mão na parte inferior

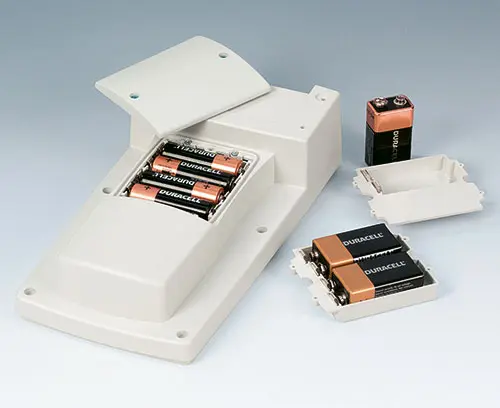

  • ótimo para sistemas de controle com conexão de cabo ou compartimento de bateria de 4 x AA, 1 x 9 V ou pilhas 2 x 9 V
  • distribuição ideal de peso
  • área de operação recessada para proteção do teclado de membrana

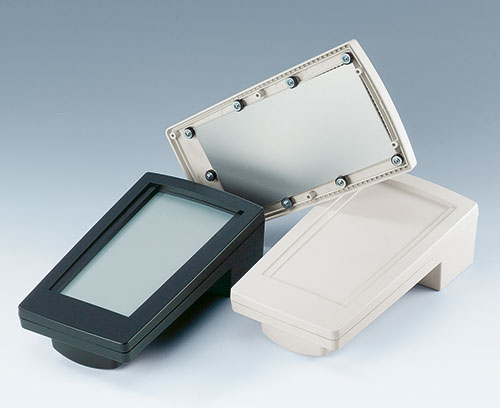

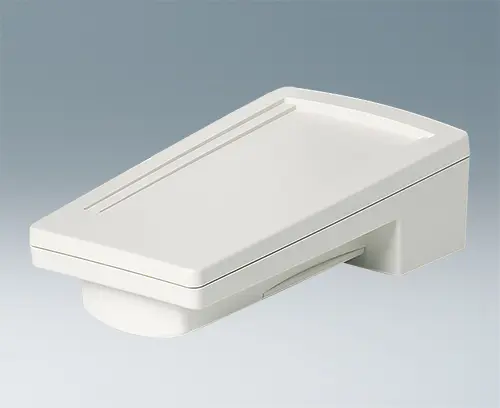

  • versão I com a parte superior fechada

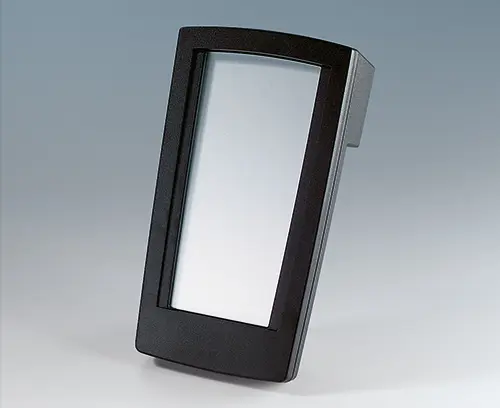

  • versão II para montagem do painel frontal de alumínio
  • pilares de fixação internos para PCB
Criar PDF

Application Fields

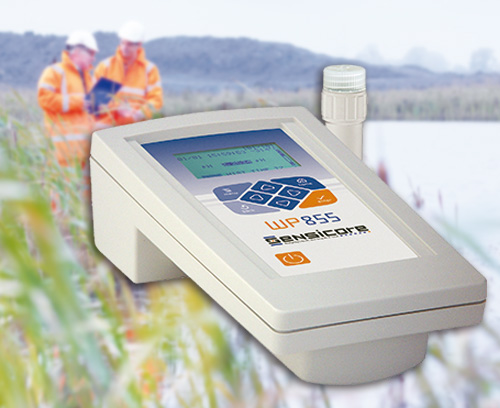

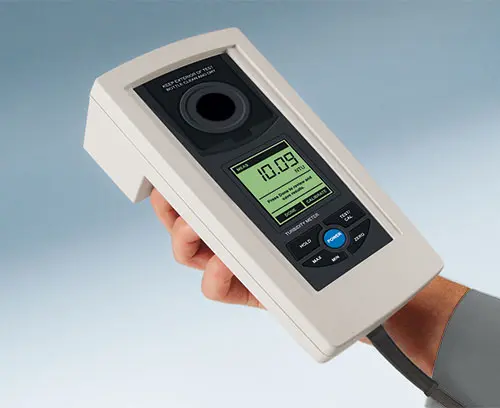

Sistemas de controle de máquinas flexíveis de produção e montagem. Terminais de programação e aplicações que ensinam. Aplicações clássicas no campo da engenharia elétrica e eletrônica, por exemplo, equipamentos de medição e controle. Terminais móveis, programadores, unidades de coleta de dados e muito mais.

A9046107 HAND-TERMINAL M, Vers. I

A9046107

HAND-TERMINAL M, Vers. I Robust hand-held enclosure. Recessed operation area for membrane keyboards. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With closed operation area

Supply top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet

A9046107

HAND-TERMINAL M, Vers. I
Produto adicionado a sua lista

off-white RAL 9002
220x120x65mm

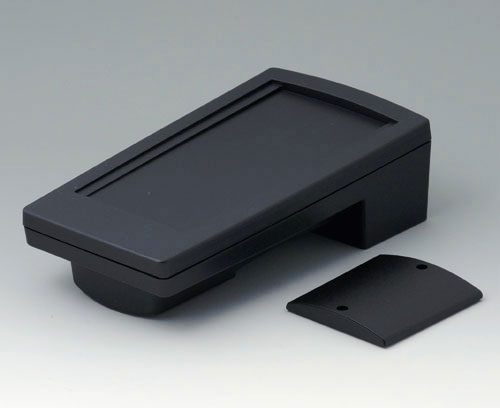

A9046109 HAND-TERMINAL M, Vers. I

A9046109

HAND-TERMINAL M, Vers. I Robust hand-held enclosure. Recessed operation area for membrane keyboards. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With closed operation area

Supply Top and bottom part, battery compartment lid, assembly kit incl. PCB-screws and rubber feet

A9046109

HAND-TERMINAL M, Vers. I
Produto adicionado a sua lista

black RAL 9005
220x120x65mm

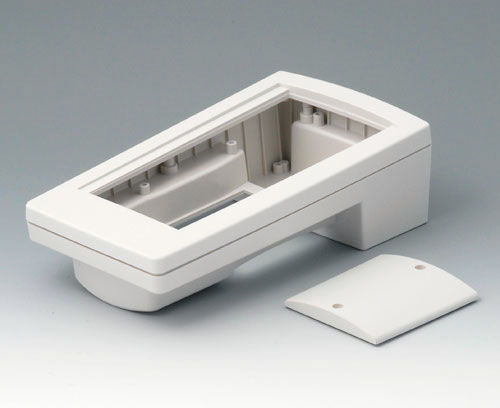

A9046207 HAND-TERMINAL M, Vers. II

A9046207

HAND-TERMINAL M, Vers. II Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With frame cover for the use of an aluminium-front panel (accessories)

Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet

A9046207

HAND-TERMINAL M, Vers. II
Produto adicionado a sua lista

off-white RAL 9002
220x120x65mm
A9046209 HAND-TERMINAL M, Vers. II

A9046209

HAND-TERMINAL M, Vers. II Robust hand-held enclosure. Assembly of the front panels (accessories) from the rear. Screw pillars for PCBs in top and bottom part. Battery compartment as an accessory.

Version With frame cover for the use of an aluminium-front panel (accessories)

Supply Frame cover, bottom part, battery compartment lid, assembly kit incl. screws for the front panel as well as for the PCB and rubber feet

A9046209

HAND-TERMINAL M, Vers. II
Produto adicionado a sua lista

black RAL 9005
220x120x65mm
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produto adicionado a sua lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Produto adicionado a sua lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0308132

Self-tapping screw 3 x 8 mm (T10)
Produto adicionado a sua lista

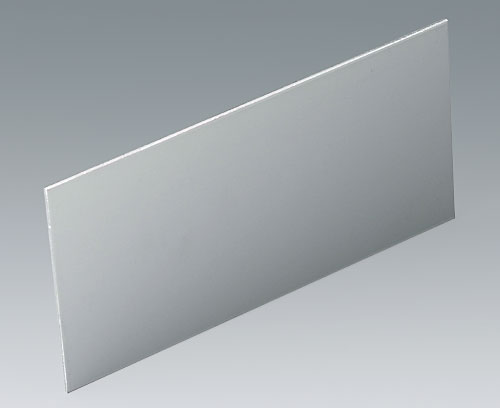

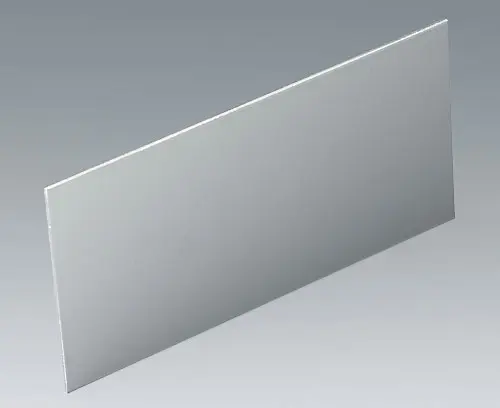

A9146101 Front panel M

A9146101

Front panel M For HAND-TERMINAL version II. Front panel installation at the top part from the rear.

Supply 1 front panel (srews supplied with the case)

A9146101

Front panel M
Produto adicionado a sua lista

matt anodised
179x88x2mm

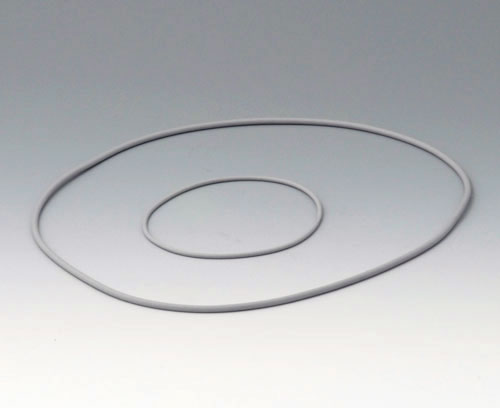

A9146106 Sealing kit M

A9146106

Sealing kit M For the case. For a higher protection class. Attention: for HAND-TERMINAL version II with frame cover for inserting an aluminium front panel additionally sealing A9146206 for the front panel necessary.

Supply 1 sealing kit

A9146106

Sealing kit M
Produto adicionado a sua lista

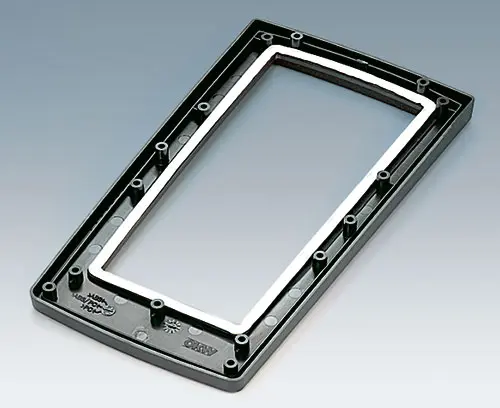

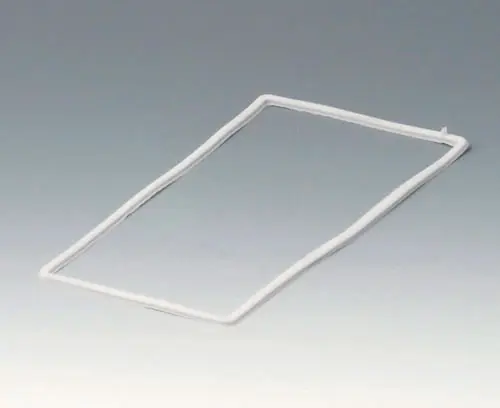

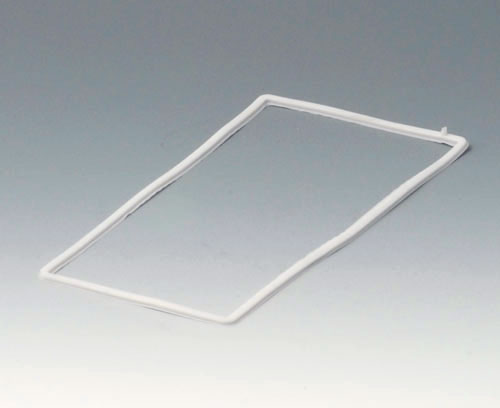

A9146206 Sealing M

A9146206

Sealing M For the front panel of HAND-TERMINAL version II. For a higher protection class.

Supply 1 sealing

A9146206

Sealing M
Produto adicionado a sua lista
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produto adicionado a sua lista
A9161002 Set of battery clips, 2 x 9 V or 4 x AA

A9161002

Set of battery clips, 2 x 9 V or 4 x AA For contacting the batteries 2 x 9 V.
Note application DATEC-MOBIL-BOX L with battery compartment: only for this enclosure 2 x 9 V or 4 x AA is possible.

Supply 4 single contacts

A9161002

Set of battery clips, 2 x 9 V or 4 x AA
Produto adicionado a sua lista

tin-plated
A9174002 Battery compartment, 2 x 9 V

A9174002

Battery compartment, 2 x 9 V Application: for 2 x 9 V flat batteries (PP3).

Supply 1 battery compartment, assembly kit

A9174002

Battery compartment, 2 x 9 V
Produto adicionado a sua lista

off-white RAL 9002
A9174003 Battery compartment, 1 x 9 V

A9174003

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

A9174003

Battery compartment, 1 x 9 V
Produto adicionado a sua lista

off-white RAL 9002
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

A9174006

Set of battery clips, 1 x 9 V
Produto adicionado a sua lista

tin-plated
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

A9250250

Battery spacer
Produto adicionado a sua lista

50x25x4mm
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

A9345217

Set of battery compartment, 4 x AA
Produto adicionado a sua lista

off-white RAL 9002

Opções para customizadas Hand-Terminal

O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
