Caixas Portáteis para instrumentos de medição

Caixas portáteis simples e econômicas, testadas e aprovadas.

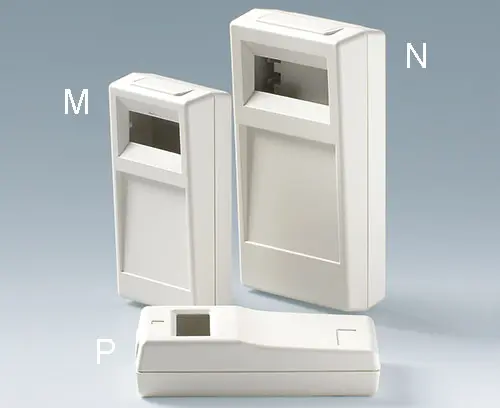

  • projetada para montagem de módulos de display LCD digitais ou analógicos
  • janelas acrílicas como acessório protegem aos módulos de display e são facilmente dispostas com as fitas autoadesivas

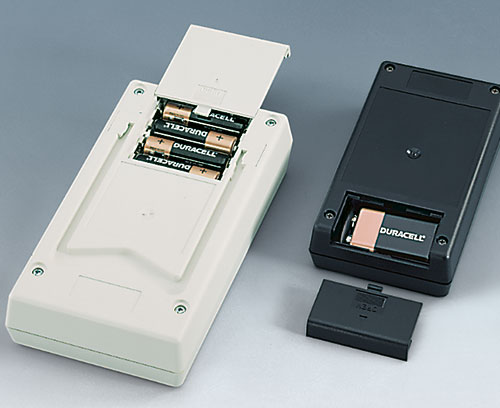

  • compartimentos de bateria para C, AA e células 9 V
  • tampas snap-in de compartimento de bateria para rápida substituição de bateria
  • versões com ou sem tampa para acoplar o interruptor (tipo P)
  • área frontal levantada na parte inferior para acomodar plugues
  • pé de inclinação para aplicações ergonômicas em mesa de trabalho

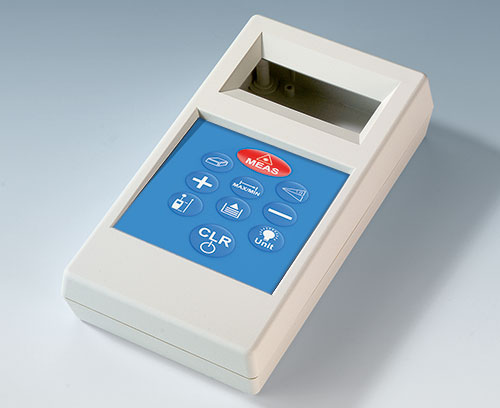

  • recesso superior para montagem em teclados de membrana (tipos M, N)
  • pilares internos de parafuso para montagem PCBs
Criar PDF

Application Fields

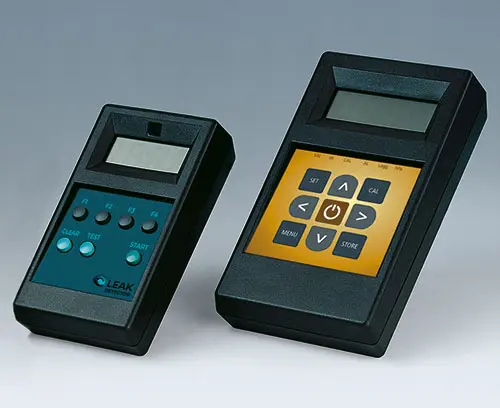

Útil gama de caixas portáteis para montagem de instrumentos digitais e analógicos. Ideal para medição de habitação e tecnologia de controle, por exemplo, verificadores de continuidade, medidores de volts, medidores de intensidade de campo, termômetros digitais, medidores de vazão, etc.

A9060007 HAND-HELD-BOX P, Vers. I

A9060007

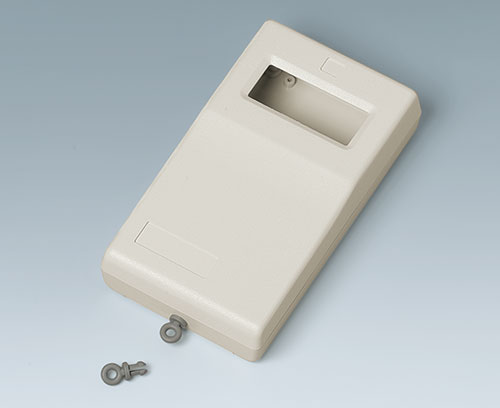

HAND-HELD-BOX P, Vers. I Design: Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

A9060007

HAND-HELD-BOX P, Vers. I
Produto adicionado a sua lista

off-white RAL 9002
145x80x36,5mm

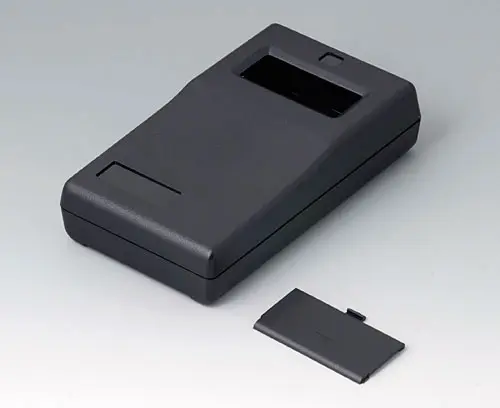

A9060009 HAND-HELD-BOX P, Vers. I

A9060009

HAND-HELD-BOX P, Vers. I Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version With lateral recess for rocker switch

Supply Top and base part, battery compartment lid, assembly kit

A9060009

HAND-HELD-BOX P, Vers. I
Produto adicionado a sua lista

black RAL 9005
145x80x36,5mm

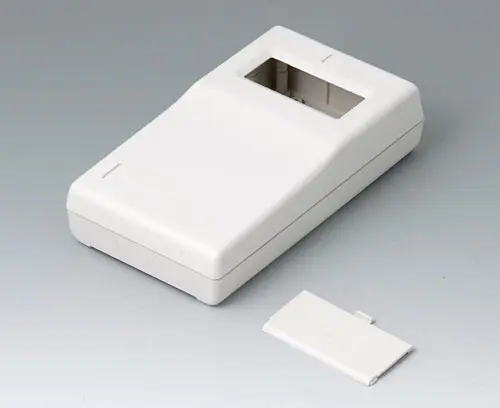

A9060017 HAND-HELD-BOX P, Vers. II

A9060017

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

A9060017

HAND-HELD-BOX P, Vers. II
Produto adicionado a sua lista

off-white RAL 9002
145x80x36,5mm

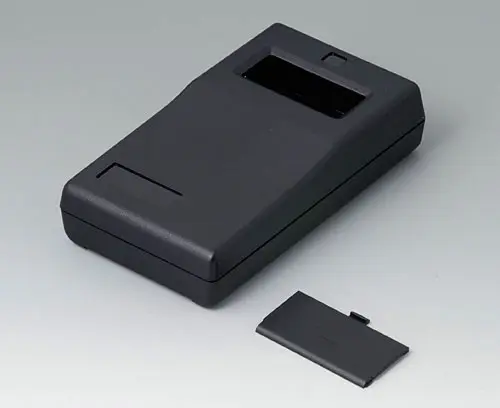

A9060019 HAND-HELD-BOX P, Vers. II

A9060019

HAND-HELD-BOX P, Vers. II Successfully used case for measuring instruments. With recessed area for imprintings or your logo. Cut-out section for LCD or analogical modules. With battery compartment, accessible from the outside, for 9 V flat battery (PP3) or 1.5 V baby cell (C) with contacts for soldering. Raised front area to accommodate plugs.

Version Without lateral recess

Supply Top and base part, battery compartment lid, assembly kit

A9060019

HAND-HELD-BOX P, Vers. II
Produto adicionado a sua lista

black RAL 9005
145x80x36,5mm

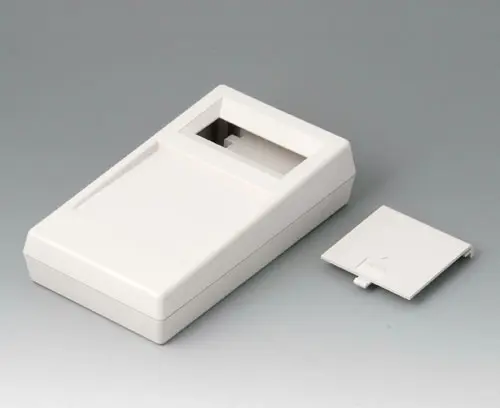

A9061017 HAND-HELD-BOX N, Vers. I

A9061017

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

A9061017

HAND-HELD-BOX N, Vers. I
Produto adicionado a sua lista

off-white RAL 9002
180x100x44mm

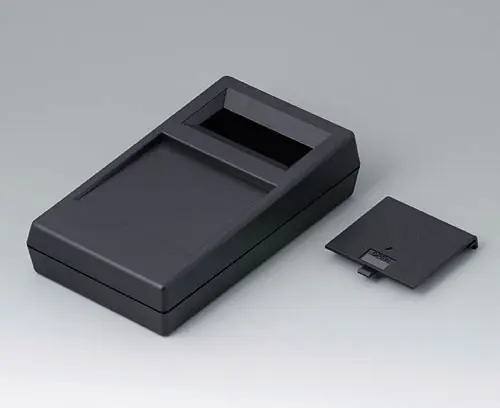

A9061019 HAND-HELD-BOX N, Vers. I

A9061019

HAND-HELD-BOX N, Vers. I Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Battery compartment accessible from the outside with locked battery compartment lid. For 2 x 9 V flat batteries (PP3) or 4 x 1.5 V mignon cells (AA). Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version With battery compartment

Supply Top and base part, battery compartment lid, assembly kit

A9061019

HAND-HELD-BOX N, Vers. I
Produto adicionado a sua lista

black RAL 9005
180x100x44mm

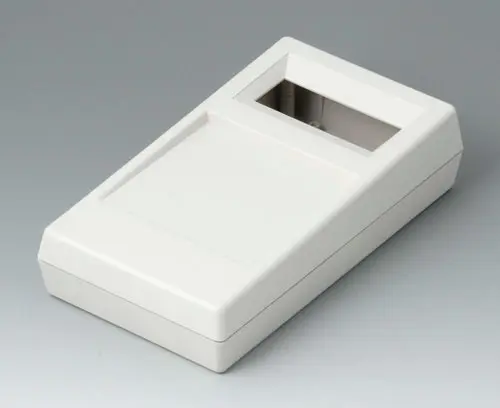

A9061117 HAND-HELD-BOX N, Vers. II

A9061117

HAND-HELD-BOX N, Vers. II Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version Without battery compartment

Supply Top and base part, assembly kit

A9061117

HAND-HELD-BOX N, Vers. II
Produto adicionado a sua lista

off-white RAL 9002
180x100x44mm
A9061119 HAND-HELD-BOX N, Vers. II

A9061119

HAND-HELD-BOX N, Vers. II Large exclusive hand-held case. With recessed area e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Raised front area to accommodate plugs.

Version Without battery compartment

Supply Top and base part, assembly kit

A9061119

HAND-HELD-BOX N, Vers. II
Produto adicionado a sua lista

black RAL 9005
180x100x44mm

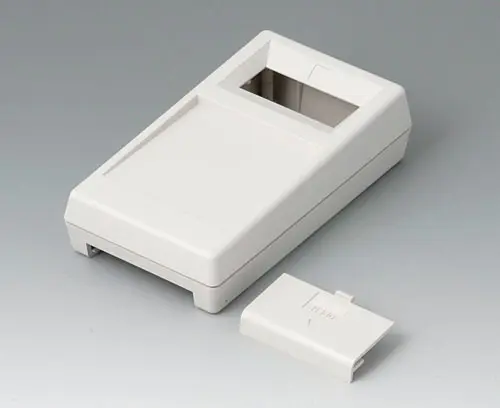

A9062017 HAND-HELD-BOX M, Vers. I

A9062017

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C) with contacts for soldering

Supply Top and base part, battery compartment lid, assembly kit

A9062017

HAND-HELD-BOX M, Vers. I
Produto adicionado a sua lista

off-white RAL 9002
145x80x38,5mm

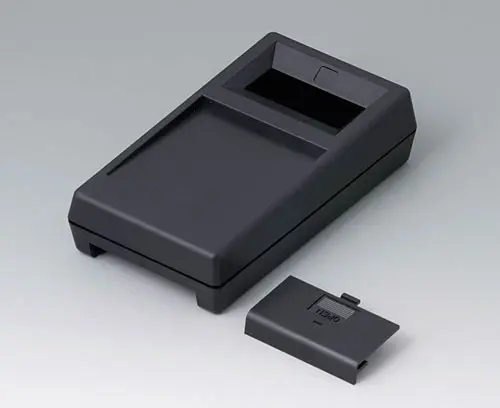

A9062019 HAND-HELD-BOX M, Vers. I

A9062019

HAND-HELD-BOX M, Vers. I Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs.

Version With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C)

Supply Top and base part, battery compartment lid, assembly kit

A9062019

HAND-HELD-BOX M, Vers. I
Produto adicionado a sua lista

black RAL 9005
145x80x38,5mm
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produto adicionado a sua lista
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produto adicionado a sua lista

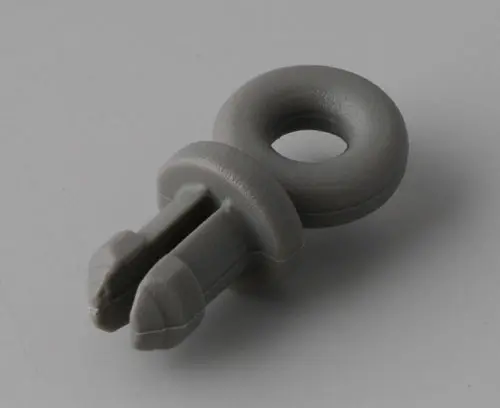

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

A9100002

Ring eyelet
Produto adicionado a sua lista

volcano

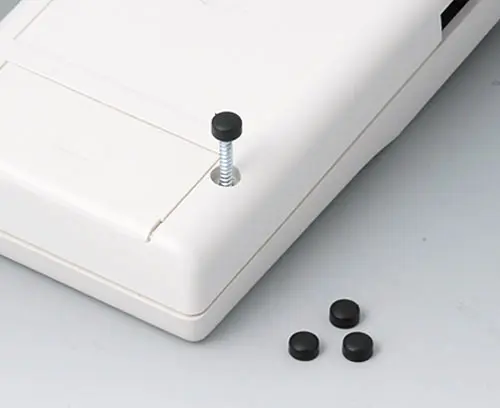

A9160002 Cover plug

A9160002

Cover plug For covering the bottom's screw holes.

Supply 1 cover plug

A9160002

Cover plug
Produto adicionado a sua lista
black RAL 9005

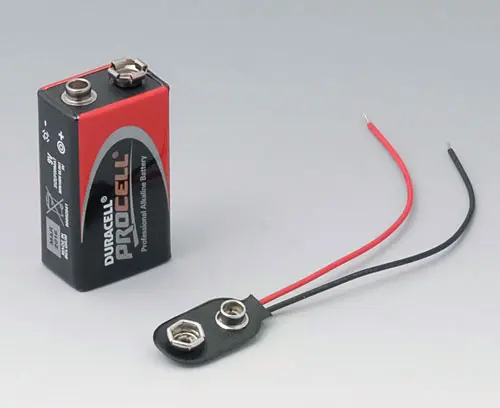

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produto adicionado a sua lista

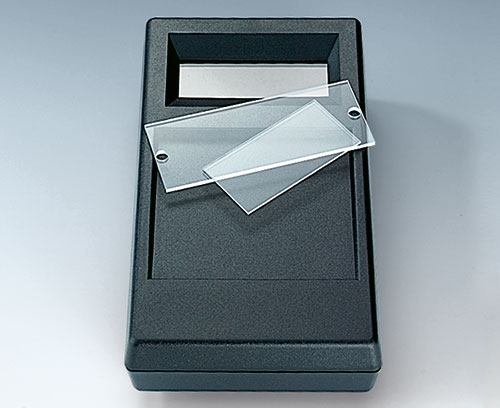

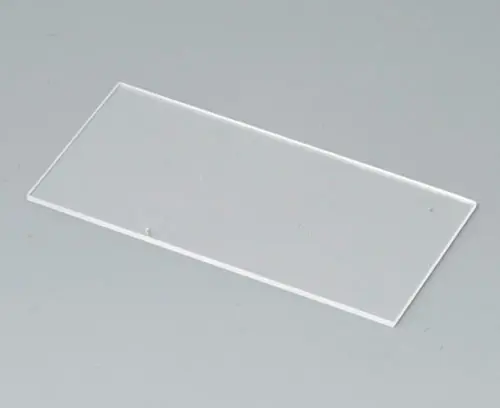

A9160004 Display window P

A9160004

Display window P The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

A9160004

Display window P
Produto adicionado a sua lista

transparent
60x30x1mm

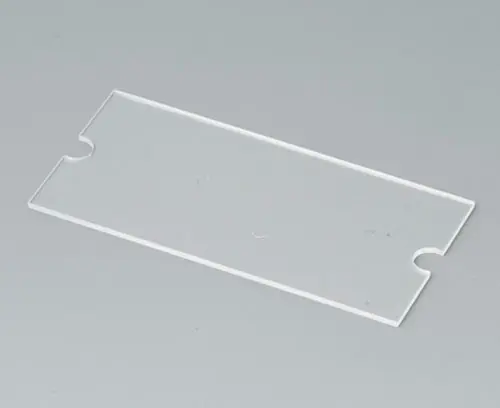

A9160005 Display window M

A9160005

Display window M The display window protects the installed display. For glueing the display window there's an adhesive foil (A9160006) available.

Supply 1 display window

A9160005

Display window M
Produto adicionado a sua lista

transparent
60x30x1mm

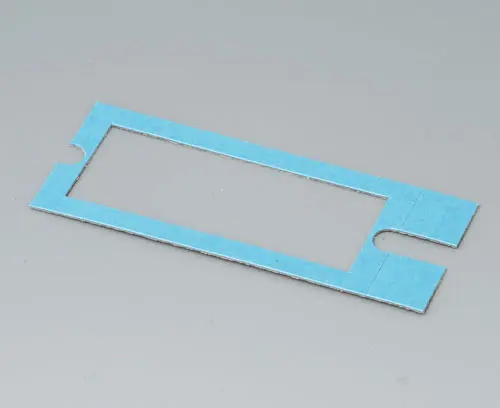

A9160006 Adhesive foil P/M

A9160006

Adhesive foil P/M Fastening the display window (A9060004, A9060005).

Supply 1 adhesive foil

A9160006

Adhesive foil P/M
Produto adicionado a sua lista

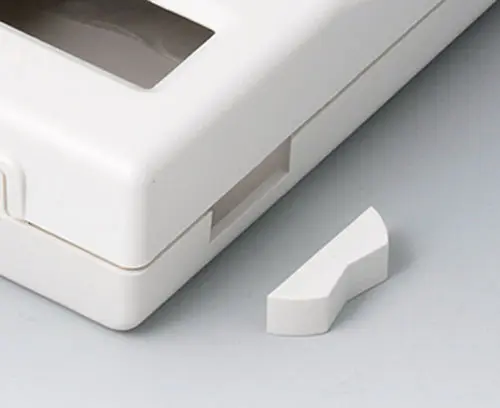

A9160007 Switch cap

A9160007

Switch cap For rocker-switch application.

Supply 1 switch cap

A9160007

Switch cap
Produto adicionado a sua lista

off-white RAL 9002

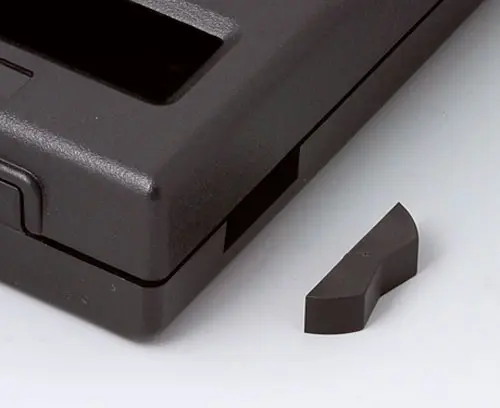

A9160009 Switch cap

A9160009

Switch cap For rocker switch-application.

Supply 1 switch cap

A9160009

Switch cap
Produto adicionado a sua lista

black RAL 9005

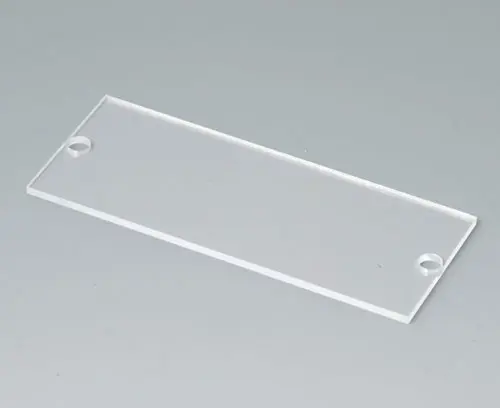

A9161004 Display window N

A9161004

Display window N The display window protects the installed display. For glueing the display window there's an adhesive foil (A9161005) available.

Supply 1 display window

A9161004

Display window N
Produto adicionado a sua lista

transparent
90x36x2mm
A9161005 Adhesive foil N

A9161005

Adhesive foil N Fastening the display window (A9061004).

Supply 1 adhesive foil

A9161005

Adhesive foil N
Produto adicionado a sua lista
A9190013 Set of battery clips, 4 x AA

A9190013

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

A9190013

Set of battery clips, 4 x AA
Produto adicionado a sua lista

nickel-plated

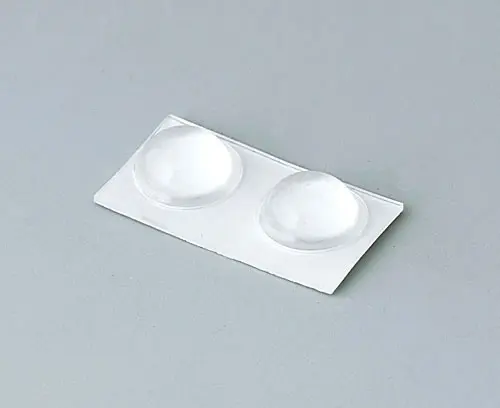

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9210290

Anti-slide feet 9.5 x 3.8 mm
Produto adicionado a sua lista
transparent

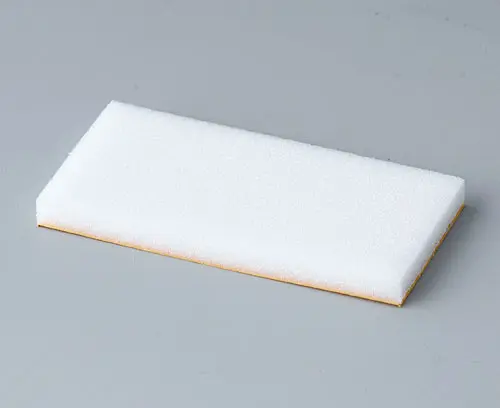

A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

A9250250

Battery spacer
Produto adicionado a sua lista

50x25x4mm

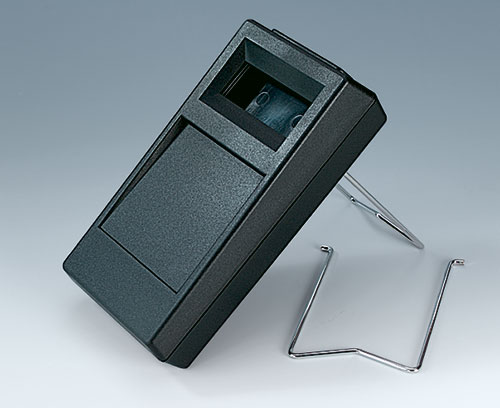

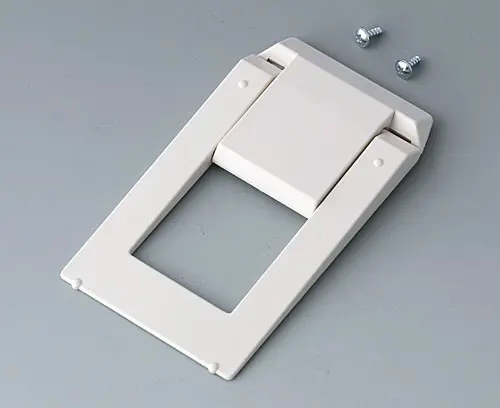

A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250807

Tilt foot bar
Produto adicionado a sua lista

off-white RAL 9002

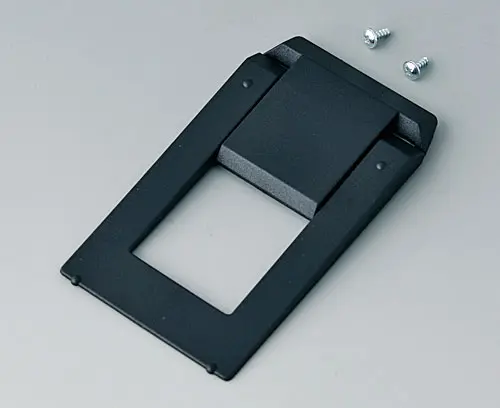

A9250809 Tilt foot bar

A9250809

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250809

Tilt foot bar
Produto adicionado a sua lista

black RAL 9005

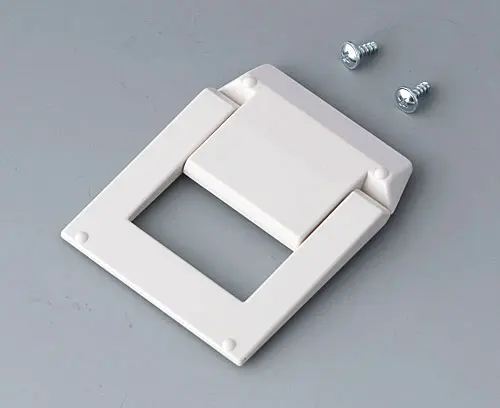

A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250817

Tilt foot bar
Produto adicionado a sua lista

off-white RAL 9002
A9250819 Tilt foot bar

A9250819

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

A9250819

Tilt foot bar
Produto adicionado a sua lista

black RAL 9005

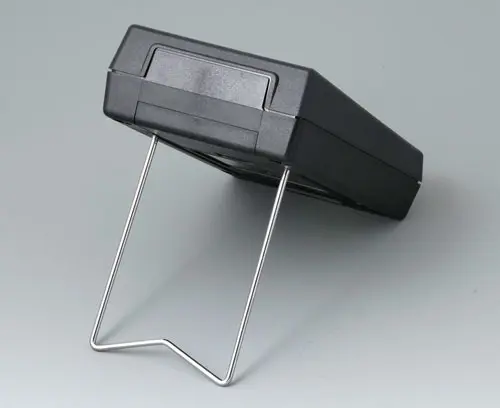

A9361009 Tilt foot bar

A9361009

Tilt foot bar For ergonomical canting.

Supply 1 tilt foot bar

A9361009

Tilt foot bar
Produto adicionado a sua lista

chromed
