FLAT-PACK CASES

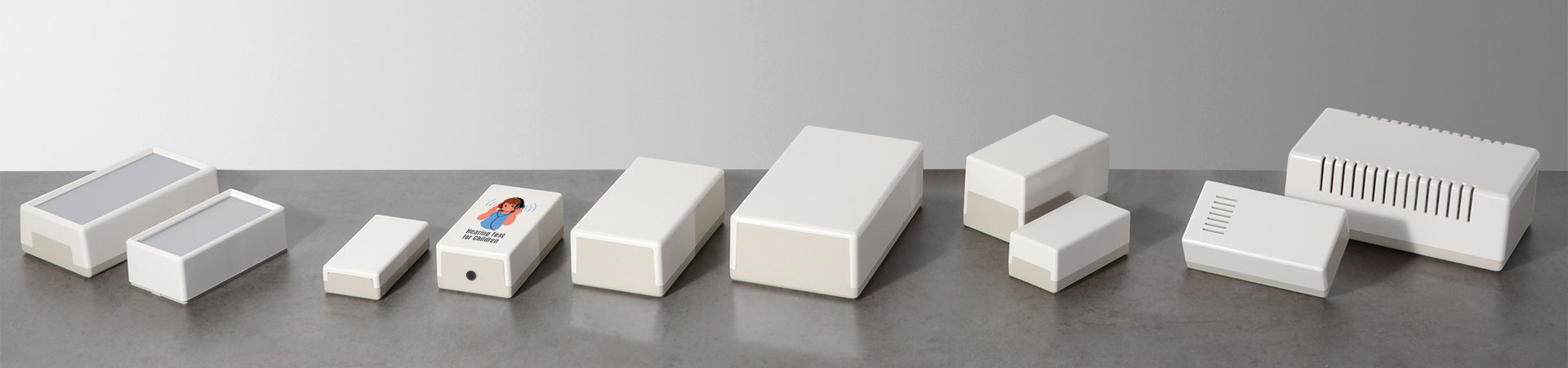

Flat-Pack Case

Caixas Plásticas Universais

Nossa FLAT-PACK CASES é uma caixa simples de preço acessível para seus produtos eletrônicos.

  • grande variedade de tamanhos e versões para tampa de mesa e montagem em parede
  • construção robusta com travas & ranhuras de ventilação

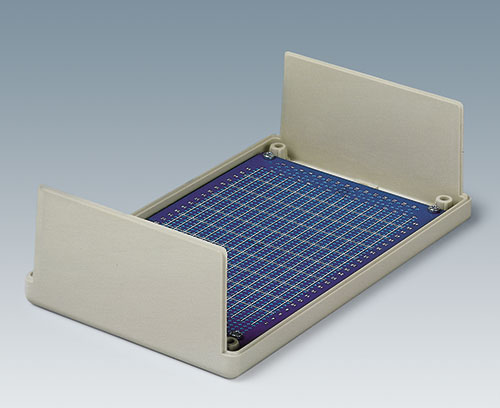

  • as partes inferiores são abertas nas laterais e, portanto, útil para todas as instalações e serviços

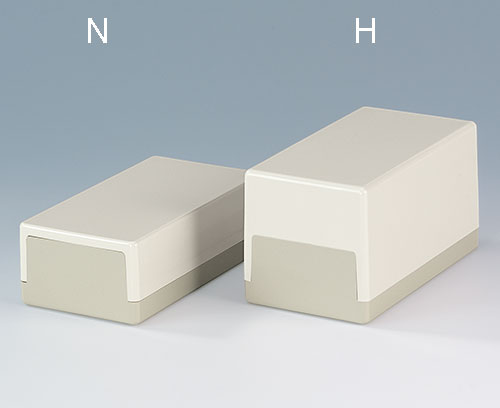

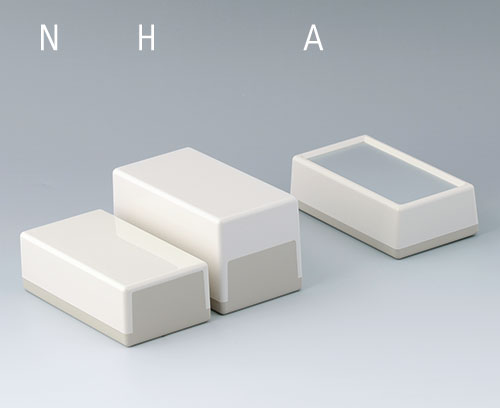

  • com parte superior baixa (N) e alta (H)

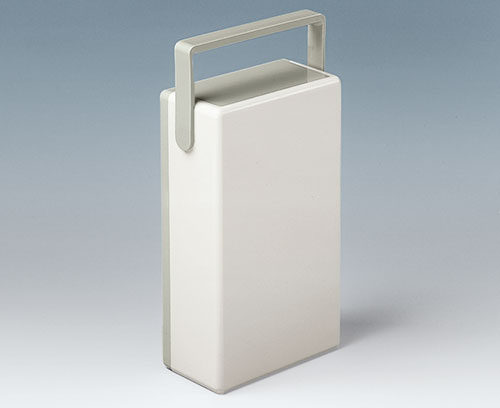

  • versões com alça de mão para uso ergonômico ou fácil transporte
  • com aberturas de ventilação para dissipação de componentes de elevado calor (189 L)
  • com ranhuras na parte superior para aparelhos em miniatura, com sinal sonoro (120 S)

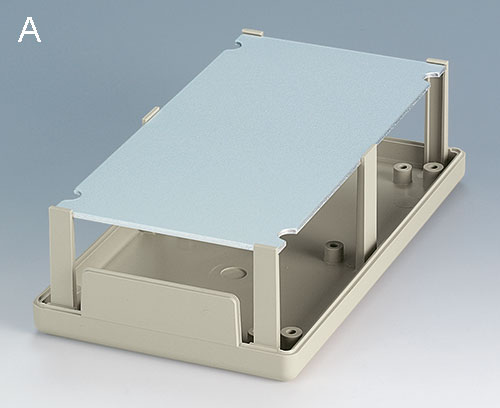

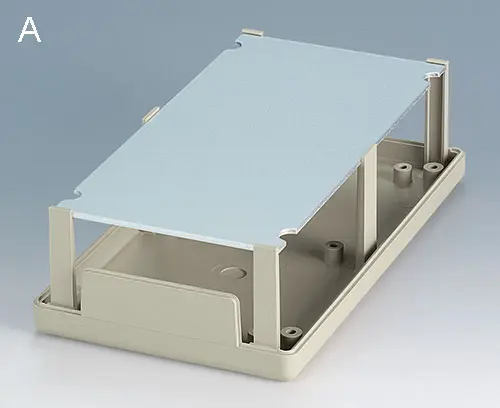

  • modelos tipo A possuem painéis frontais de alumínio; elementos de operação são protegidos por uma elevada carga na caixa
  • classe de proteção IP 40 (versão sem ranhuras)
  • pilares internos de parafusos para PCBs etc.

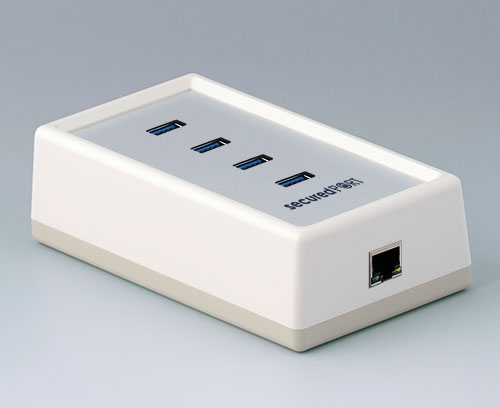

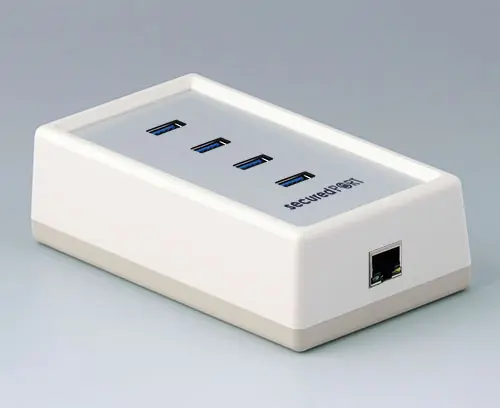

  • Exemplos de Aplicação

Application fields

Caixas universais para dispositivos eletrônicos e eletromecânicos, por exemplo,
  • Instrumentos de medição e controle
  • Médicos
  • Equipamentos de bem-estar e laboratório
  • Periféricos de computador etc.
  • Navegue na Lista Completa
  • Acessórios
  • Customizadas

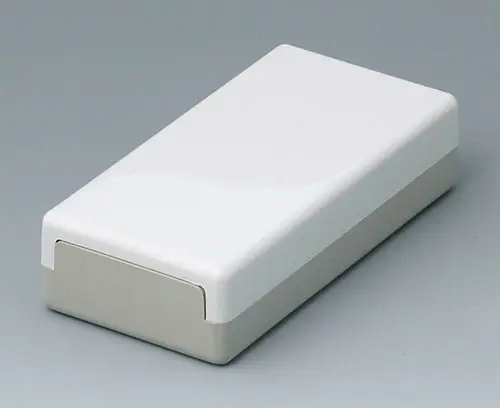

A9010065 FLAT-PACK CASES 100 N, Vers. I

A9010065

FLAT-PACK CASES 100 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Fechar

A9010065

FLAT-PACK CASES 100 N, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
100x50x25mm
IP 40

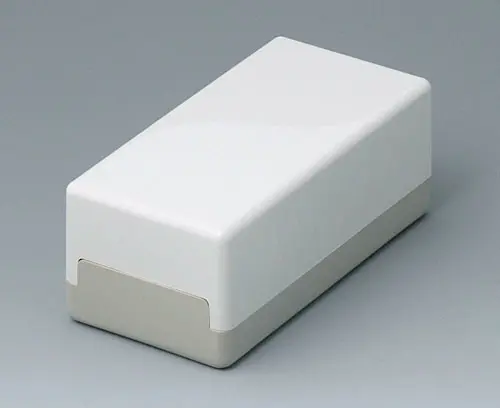

A9011065 FLAT-PACK CASES 100 H, Vers. I

A9011065

FLAT-PACK CASES 100 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Fechar

A9011065

FLAT-PACK CASES 100 H, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
100x50x40mm
IP 40

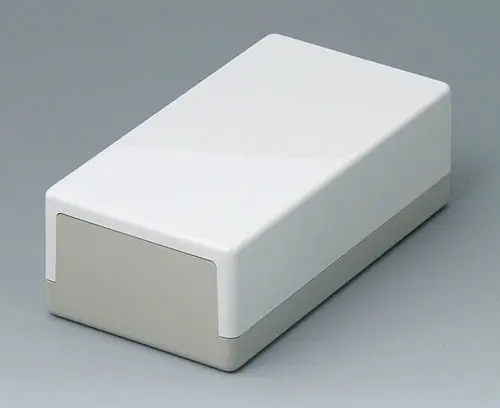

A9020065 FLAT-PACK CASES 120 N, Vers. I

A9020065

FLAT-PACK CASES 120 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Fechar

A9020065

FLAT-PACK CASES 120 N, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x40mm
IP 40

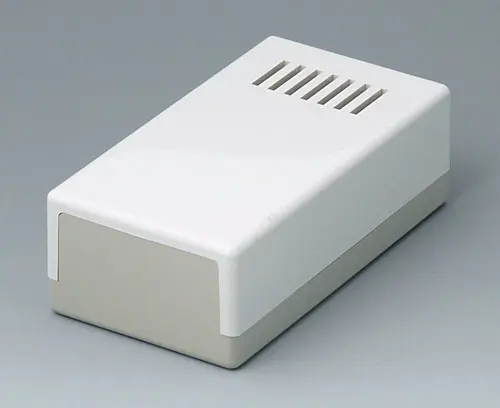

A9020265 FLAT-PACK CASE 120 S

A9020265

FLAT-PACK CASE 120 S Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Fechar

A9020265

FLAT-PACK CASE 120 S
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x40mm

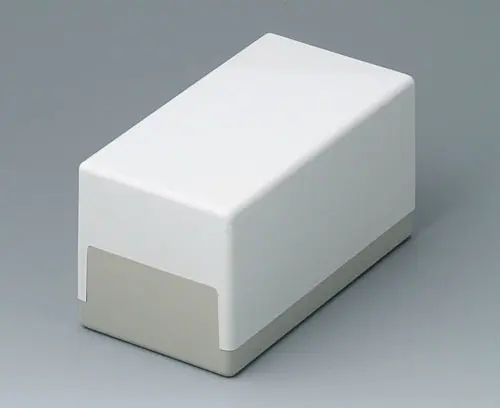

A9021065 FLAT-PACK CASE 120 H, Vers. I

A9021065

FLAT-PACK CASE 120 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Fechar

A9021065

FLAT-PACK CASE 120 H, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x65mm
IP 40

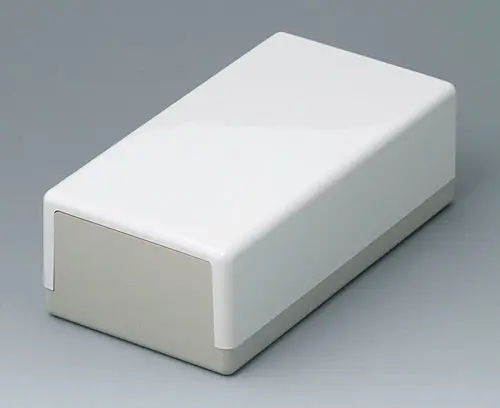

A9030065 FLAT-PACK CASES 150 N, Vers. I

A9030065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Fechar

A9030065

FLAT-PACK CASES 150 N, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
150x80x50mm
IP 40

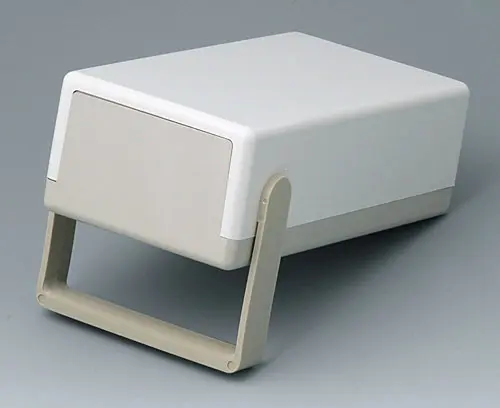

A9030165 FLAT-PACK CASES 150 N, Vers. II

A9030165

FLAT-PACK CASES 150 N, Vers. II Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Fechar

A9030165

FLAT-PACK CASES 150 N, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
150x80x50mm
IP 40

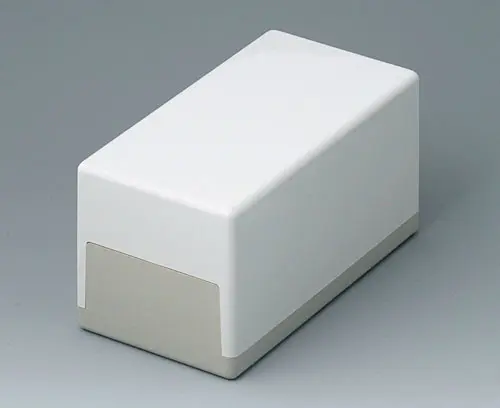

A9031065 FLAT-PACK CASE 150 H, Vers. I

A9031065

FLAT-PACK CASE 150 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version without handle bar.

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Fechar

A9031065

FLAT-PACK CASE 150 H, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
150x80x80mm
IP 40

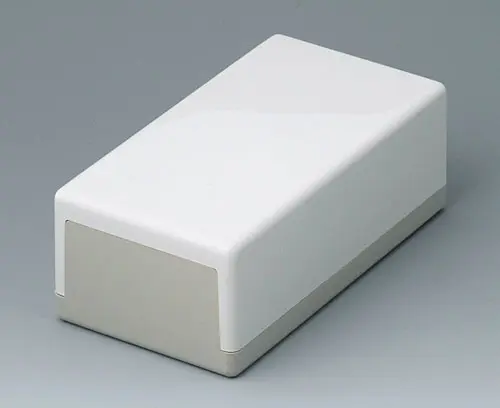

A9032065 FLAT-PACK CASES 150 N, Vers. I

A9032065

FLAT-PACK CASES 150 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, assembly kit and 4 screws for the mounting of PCBs

Fechar

A9032065

FLAT-PACK CASES 150 N, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
150x80x55mm
IP 40

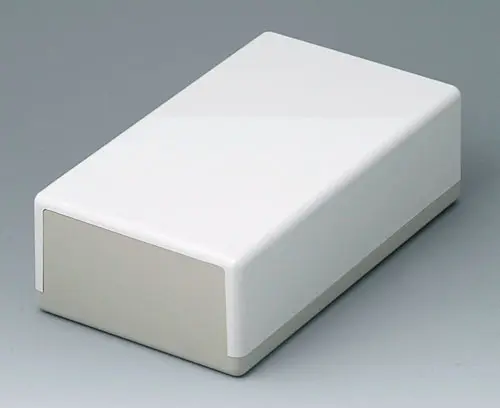

A9040065 FLAT-PACK CASES 189 N, Vers. I

A9040065

FLAT-PACK CASES 189 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Fechar

A9040065

FLAT-PACK CASES 189 N, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x60mm
IP 40

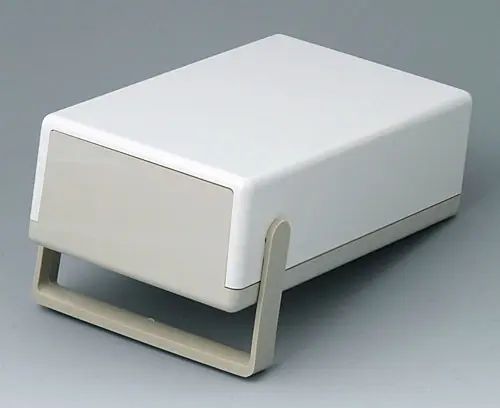

A9040165 FLAT-PACK CASES 189 N, Vers. II

A9040165

FLAT-PACK CASES 189 N, Vers. II Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Fechar

A9040165

FLAT-PACK CASES 189 N, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x60mm
IP 40

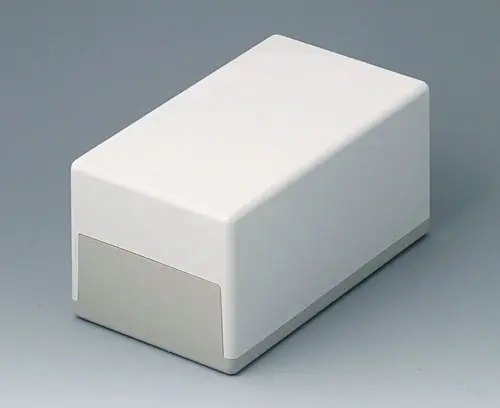

A9041065 FLAT-PACK CASE 189 H, Vers. I

A9041065

FLAT-PACK CASE 189 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Fechar

A9041065

FLAT-PACK CASE 189 H, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x97mm
IP 40

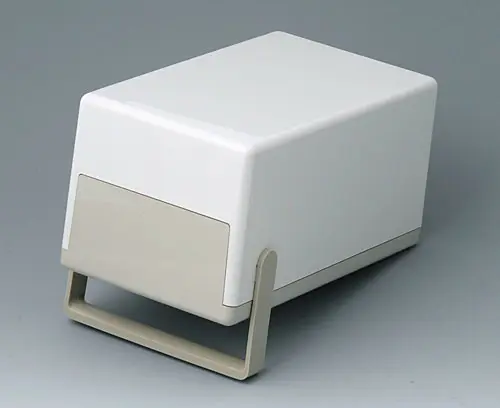

A9041165 FLAT-PACK CASE 189 H, Vers. II

A9041165

FLAT-PACK CASE 189 H, Vers. II Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version With handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Fechar

A9041165

FLAT-PACK CASE 189 H, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x97mm
IP 40
A9042065 FLAT-PACK CASE 189 H, Vers. I

A9042065

FLAT-PACK CASE 189 H, Vers. I Two-piece case with high top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Fechar

A9042065

FLAT-PACK CASE 189 H, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x120mm
IP 40

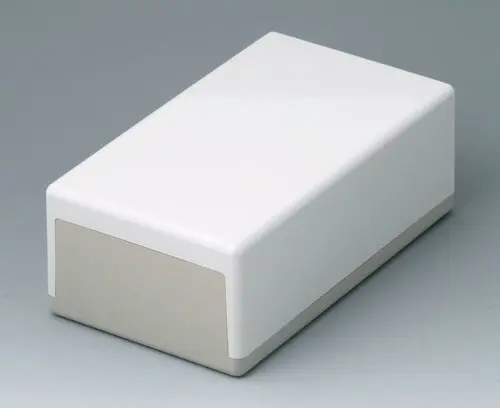

A9043065 FLAT-PACK CASES 189 N, Vers. I

A9043065

FLAT-PACK CASES 189 N, Vers. I Two-piece case with flat top and open side base. Fastenings pillars for PCB mounting.

Version Without handle bar

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Fechar

A9043065

FLAT-PACK CASES 189 N, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x70mm
IP 40

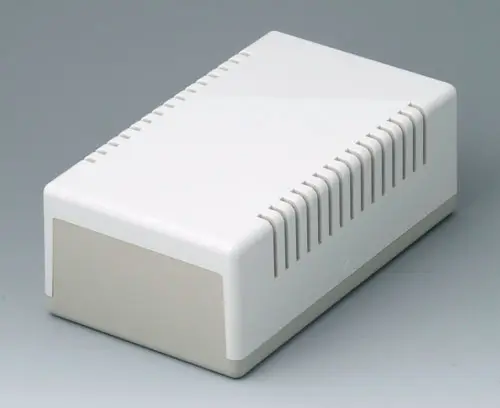

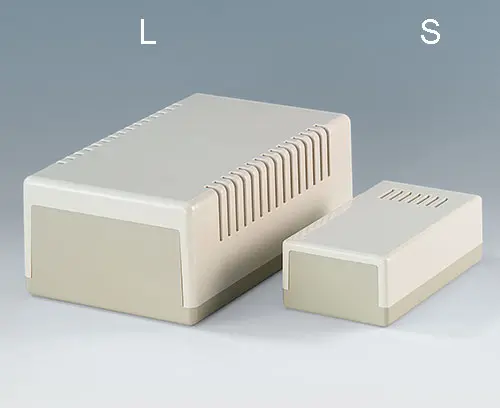

A9043265 FLAT-PACK CASE 189 L

A9043265

FLAT-PACK CASE 189 L Two-piece case. Top part with ventilation slots and open side base. Fastenings pillars for PCB mounting.

Supply 1 top and base part, 4 M3-screws for case, 4 screws for the mounting of PCBs

Fechar

A9043265

FLAT-PACK CASE 189 L
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
189x110x70mm

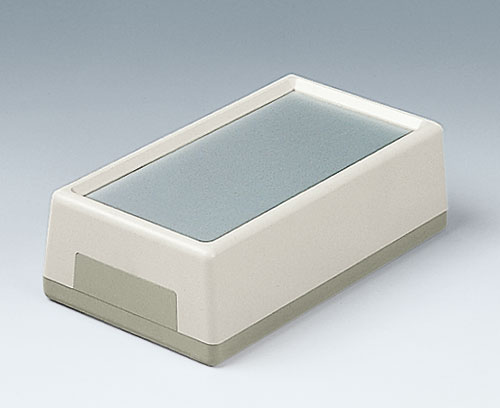

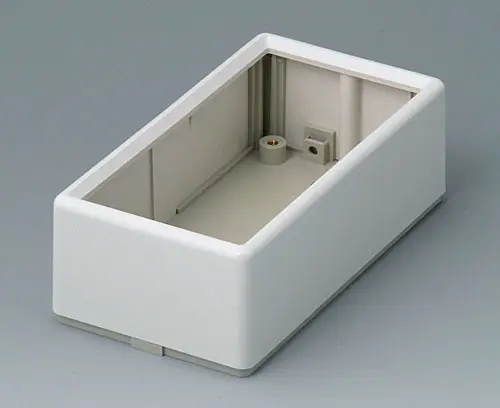

A9520165 FLAT-PACK CASE 120 A

A9520165

FLAT-PACK CASE 120 A Two-piece case. The front pane,l see accessory A9195201, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Fechar

A9520165

FLAT-PACK CASE 120 A
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
120x65x40mm
IP 40

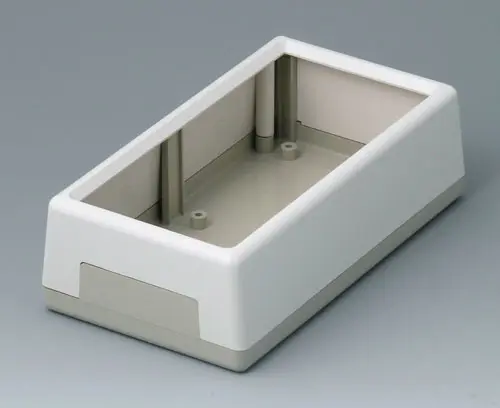

A9530165 FLAT-PACK CASE 150 A

A9530165

FLAT-PACK CASE 150 A Two-piece case. The front panel, see accessory A9195301, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Fechar

A9530165

FLAT-PACK CASE 150 A
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
150x85x45mm
IP 40

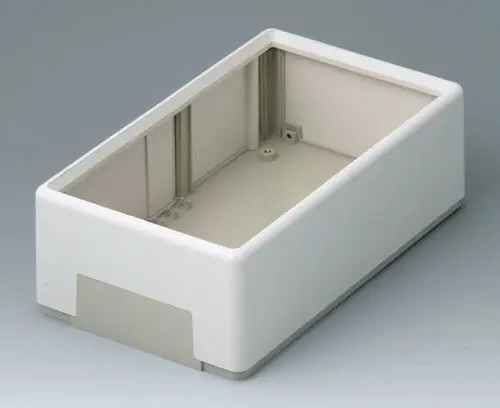

A9540165 FLAT-PACK CASE 210 A

A9540165

FLAT-PACK CASE 210 A Two-piece case. The front panel, see accessory A9195401, rests upon four spring posts and is held without screws by the case frame. Fastenings pillars for PCB mounting.

Supply 1 top and base part, assembly kit

Fechar

A9540165

FLAT-PACK CASE 210 A
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
210x125x70mm
IP 40
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Fechar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produto adicionado a sua lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Fechar

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Produto adicionado a sua lista

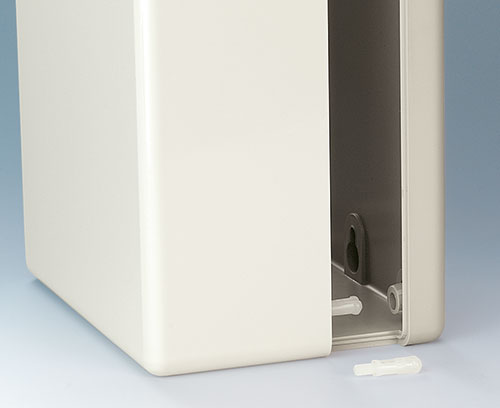

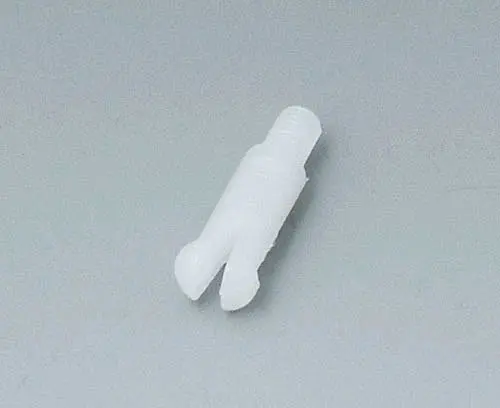

A9100008 Snap-lock

A9100008

Snap-lock Replaces the standard screw fixing of the case. Suitable for FLAT-PACK CASES A9040065-A9043265.

Supply 1 snap lock

Fechar

A9100008

Snap-lock
Produto adicionado a sua lista
PA 6 (UL 94 HB)
natural-coloured

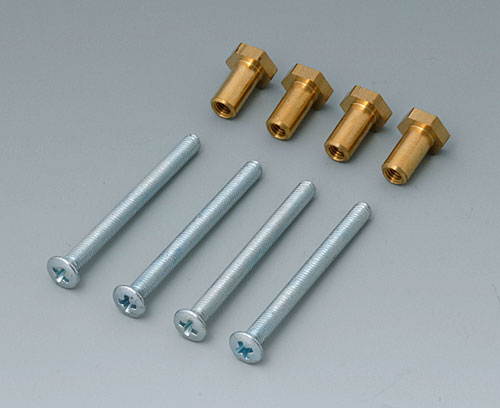

A9120000 Assembly kit for wall mounting

A9120000

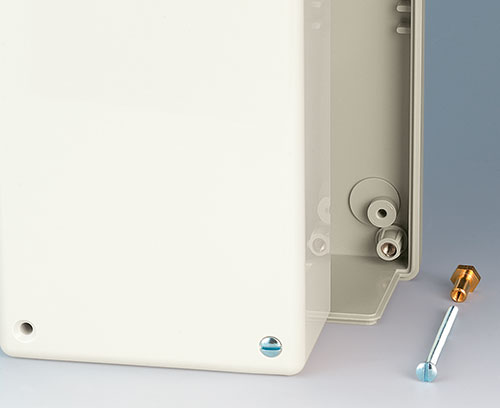

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9011... and A9020... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Fechar

A9120000

Assembly kit for wall mounting
Produto adicionado a sua lista

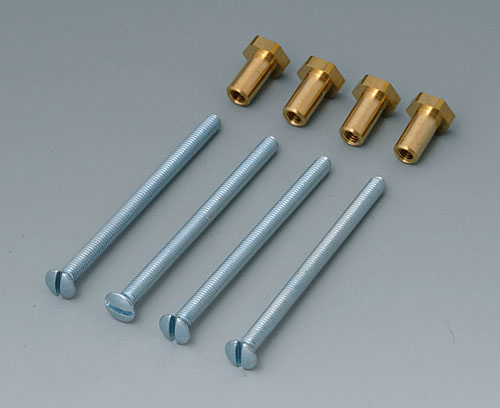

A9130000 Assembly kit for wall mounting

A9130000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9030... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Fechar

A9130000

Assembly kit for wall mounting
Produto adicionado a sua lista

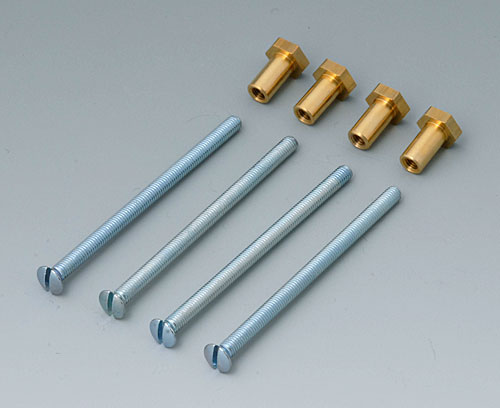

A9132000 Assembly kit for wall mounting

A9132000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9032... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Fechar

A9132000

Assembly kit for wall mounting
Produto adicionado a sua lista

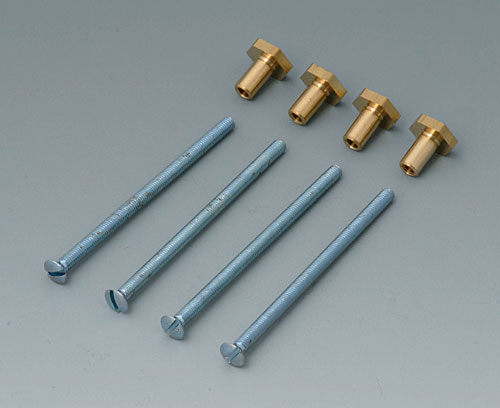

A9140000 Assembly kit for wall mounting

A9140000

Assembly kit for wall mounting Permits screw fixing from the front of the FLAT-PACK CASE A9040... when mounted to the wall.

Supply 1 assembly kit with 4/2 screws and counternuts

Fechar

A9140000

Assembly kit for wall mounting
Produto adicionado a sua lista

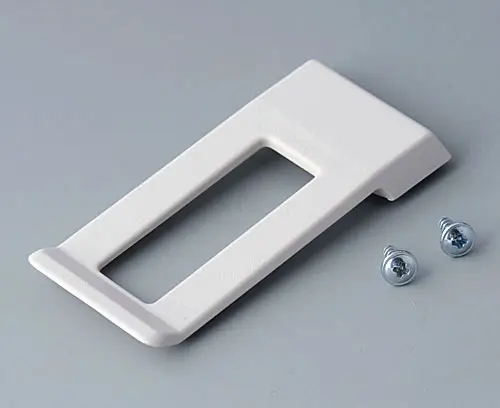

A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

Fechar

A9172107

Belt/Pocket clip
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
62x30mm

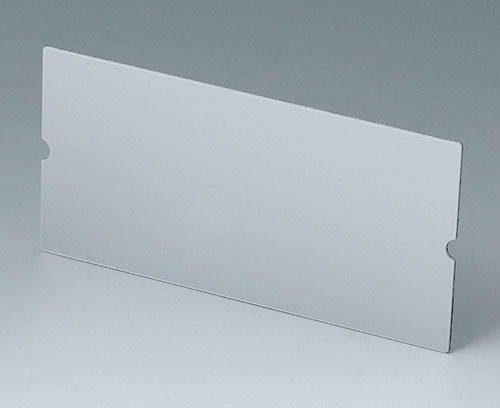

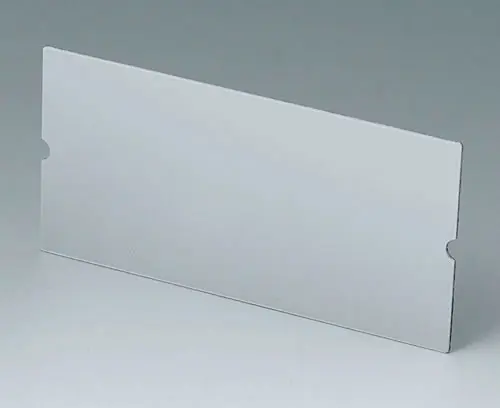

A9195201 Front panel 120 A

A9195201

Front panel 120 A Front panel for FLAT-PACK CASE A9520165.

Supply 1 front panel

Fechar

A9195201

Front panel 120 A
Produto adicionado a sua lista
Aluminium
matt anodised
113x58x1mm

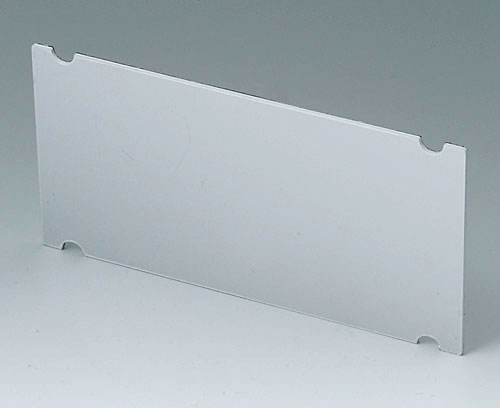

A9195301 Front panel 150 A

A9195301

Front panel 150 A Front panel for FLAT-PACK CASE A9530165.

Supply 1 front panel

Fechar

A9195301

Front panel 150 A
Produto adicionado a sua lista
Aluminium
matt anodised
141,8x71,6x1,5mm
A9195401 Front panel 210 A

A9195401

Front panel 210 A Front panel for FLAT-PACK CASE A9540165.

Supply 1 front panel

Fechar

A9195401

Front panel 210 A
Produto adicionado a sua lista
Aluminium
matt anodised
201x116x1,5mm
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Fechar

A9207150

Anti-slide feet 6.5 x 2 mm
Produto adicionado a sua lista
transparent
A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Fechar

A9210290

Anti-slide feet 9.5 x 3.8 mm
Produto adicionado a sua lista
transparent
A9250807 Tilt foot bar

A9250807

Tilt foot bar Facilitates ergonomical reading angles, side lenght 81 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Fechar

A9250807

Tilt foot bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A9250817 Tilt foot bar

A9250817

Tilt foot bar Facilitates ergonomical reading angles, side lenght 43 mm (bore distance 20 mm, 2 x diameter = 4.2 mm). We recommend rubber feet (A9207150) for a better grip.

Supply 1 tilt foot bar, assembly kit

Fechar

A9250817

Tilt foot bar
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Fechar

B1350048

Wall suspension elements
Produto adicionado a sua lista
ABS (UL 94 HB)
pebble grey RAL 7032
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Fechar

B1360048

Wall suspension elements
Produto adicionado a sua lista
ABS (UL 94 HB)
pebble grey RAL 7032

Opções para customizadas Flat-Pack Case

O que você ainda precisa em seu próprio produto pessoal? Nós podemos fornecer caixas e knobs de ajuste com todas as modificações necessárias para a montagem de seus componentes eletrônicos.
