A0316370 Front / rear panel 63 TE 1 HE

A0316370

Front / rear panel 63 TE 1 HE

Front/rear panel for case 63 TE 1 HE.

Supply

1 front panel

  • Usado para
  • Veja Opções de personalização
A0116170 Shell 63 TE

A0116170

Shell 63 TE The case shells (2 pcs necessary) safely lock with each other by pressure. With injection-moulded fixing towers for PCB mounting. For combination with side panel and snap-in panel (separate Article).

Supply 1 shell

Fechar

A0116170

Shell 63 TE
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
367x250x27mm
A0116370 Snap-in panel, without slots

A0116370

Snap-in panel, without slots Snap-in panel without slots for the top. For locking in the case shells.

Supply 1 snap-in panel without slots

Fechar

A0116370

Snap-in panel, without slots
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A0126370 Snap-in panel, with slots

A0126370

Snap-in panel, with slots Snap-in panel with slots for the top. For locking in the case shells.

Supply 1 snap-in panel with slots

Fechar

A0126370

Snap-in panel, with slots
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A0136370 Snap-in panel, without slots, with feet

A0136370

Snap-in panel, without slots, with feet Snap-in panel without slots, with feet for the bottom. For locking in the case shells. For combination with tolt feet (see accessory).

Supply 1 snap-in panel without slots

Fechar

A0136370

Snap-in panel, without slots, with feet
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A0146370 Snap-in panel, with slots, with feet

A0146370

Snap-in panel, with slots, with feet Nap-in panel with slots, with feet for the bottom. For locking in the case shells. For the combination with tilt feet (see accessory).

Supply 1 snap-in panel with slots

Fechar

A0146370

Snap-in panel, with slots, with feet
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

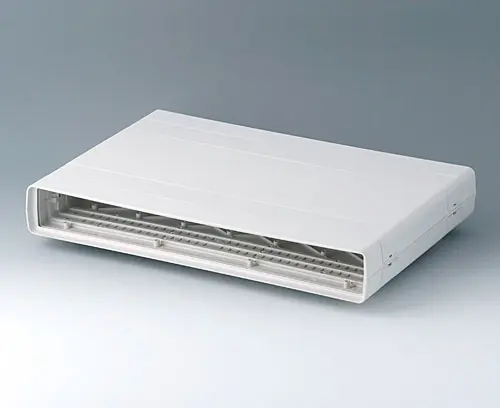

A0216070 EURO CASE 63 TE, without handle

A0216070

EURO CASE 63 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet

Fechar

A0216070

EURO CASE 63 TE, without handle
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
367x250x54mm

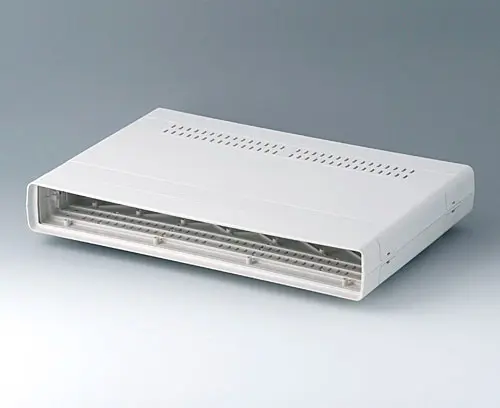

A0216170 EURO CASE 63 TE, without handle

A0216170

EURO CASE 63 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each

Fechar

A0216170

EURO CASE 63 TE, without handle
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
367x250x54mm

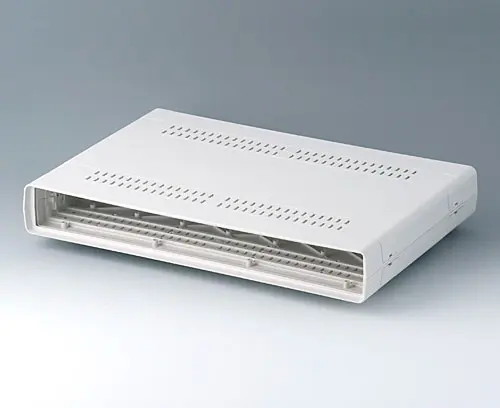

A0216270 EURO CASE 63 TE, without handle

A0216270

EURO CASE 63 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet

Fechar

A0216270

EURO CASE 63 TE, without handle
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
367x250x54mm
A0346316 Handle 63 TE

A0346316

Handle 63 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons pepple grey RAL 7032. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Fechar

A0346316

Handle 63 TE
Produto adicionado a sua lista
PA 6
off-white RAL 9002
A0346317 Handle 63 TE

A0346317

Handle 63 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Fechar

A0346317

Handle 63 TE
Produto adicionado a sua lista
PA 6
off-white RAL 9002
A0346318 Handle 63 TE

A0346318

Handle 63 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms pepple grey RAL 7032 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Fechar

A0346318

Handle 63 TE
Produto adicionado a sua lista
PA 6
pebble grey RAL 7032

Customising options for A0316370

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
Colour
matt anodised
Width
357,8 mm
Height
46,3 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
88 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Alemanha
