A0314270 Front / rear panel 42 TE 1 HE

A0314270

Front / rear panel 42 TE 1 HE

Front/rear panel for case 42 TE 1 HE.

Supply

1 front panel

  • Usado para
  • Veja Opções de personalização
A0114170 Shell 42 TE

A0114170

Shell 42 TE The case shells (2 pcs necessary) safely lock with each other by pressure. With injection-moulded fixing towers for PCB mounting. For combination with side panel and snap-in panel (separate article).

Supply 1 shell

Fechar

A0114170

Shell 42 TE
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
260x250x27mm
A0114370 Snap-in panel, without slots

A0114370

Snap-in panel, without slots Snap-in panel without slots for the top. For locking in the case shells.

Supply 1 snap-in panel without slots

Fechar

A0114370

Snap-in panel, without slots
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A0124370 Snap-in panel, with slots

A0124370

Snap-in panel, with slots Snap-in panel with slots for the top. For locking in the case shells.

Supply 1 snap-in panel with slots

Fechar

A0124370

Snap-in panel, with slots
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A0134370 Snap-in panel, without slots, with feet

A0134370

Snap-in panel, without slots, with feet Snap-in panel without slots, with feet for the bottom. For locking in the case shells.For combination with tilt feet (see accessory).

Supply 1 snap-in panel without slots, with feet

Fechar

A0134370

Snap-in panel, without slots, with feet
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A0144370 Snap-in panel with, slots, with feet

A0144370

Snap-in panel with, slots, with feet Snap-in panel with slots, with feet for the bottom. For locking in the case shells. For combination with tilt feet (see accessory).

Supply 1 snap-in panel with slots

Fechar

A0144370

Snap-in panel with, slots, with feet
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
A0214070 EURO CASE 42 TE, without handle

A0214070

EURO CASE 42 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 snap-in panels without slots, 2 snap-in panels without slots, with feet

Fechar

A0214070

EURO CASE 42 TE, without handle
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
260x250x54mm
A0214170 EURO CASE 42 TE, without handle

A0214170

EURO CASE 42 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 1 snap-in panel without/with slots each, 1 snap-in panel without/with slots, with feet each

Fechar

A0214170

EURO CASE 42 TE, without handle
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
260x250x54mm

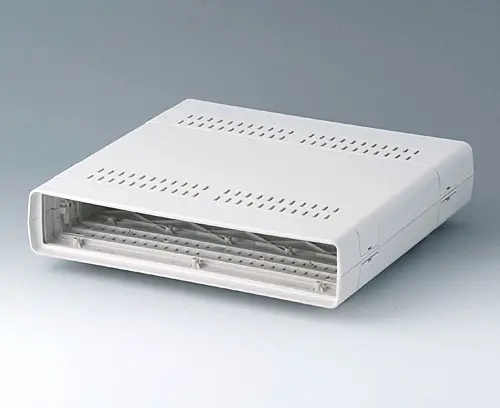

A0214270 EURO CASE 42 TE, without handle

A0214270

EURO CASE 42 TE, without handle Modular construction without screws. Fixing support in the shells and side panels.

Supply 2 shells, 2 snap-in panels with slots, 2 snap-in panels with slots, with feet

Fechar

A0214270

EURO CASE 42 TE, without handle
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
260x250x54mm
A0344216 Handle 42 TE

A0344216

Handle 42 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons pepple grey RAL 7032. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Fechar

A0344216

Handle 42 TE
Produto adicionado a sua lista
PA 6
off-white RAL 9002
A0344217 Handle 42 TE

A0344217

Handle 42 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms off-white RAL 9002 / push buttons off white RAL 9002. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Fechar

A0344217

Handle 42 TE
Produto adicionado a sua lista
PA 6
off-white RAL 9002
A0344218 Handle 42 TE

A0344218

Handle 42 TE For canting and carrying the unit. Strong ratchet with 30° indexing. Side arms pepple grey RAL 7032 / push buttons off-white RAL 9002. For combination with side panel with hole for handle.

Supply 2 side arms, 1 aluminium section, 2 fastenings screws

Fechar

A0344218

Handle 42 TE
Produto adicionado a sua lista
PA 6
pebble grey RAL 7032

Customising options for A0314270

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
Colour
matt anodised
Width
250,8 mm
Height
46,3 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
61 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Alemanha
