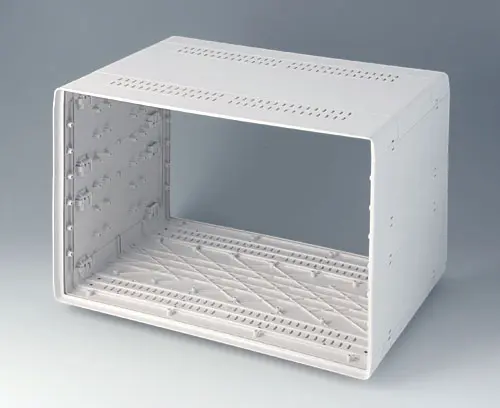

A0266270 EURO CASE 63 TE, without handle

A0266270

EURO CASE 63 TE, without handle

Modular construction without screws. Fixing support in the shells and side panels.

Supply

2 shells, 2 side panels 1 HE, 4 side panels 2 HE, 2 snap-in panel with slots, 2 snap-in panel with slots, with feet each

  • Componentes adequados
  • Veja Opções de personalização

Accessory to complete

A0366370 Front / rear panel 63 TE 6 HE

A0366370

Front / rear panel 63 TE 6 HE Front/rear panel for case 63 TE 6 HE.

Supply 1 front panel

Fechar

A0366370

Front / rear panel 63 TE 6 HE
Produto adicionado a sua lista
Aluminium
matt anodised
268,6x357,8x2mm

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produto adicionado a sua lista
A0308031 Self-tapping screws 3 x 8 mm (PZ1)

A0308031

Self-tapping screws 3 x 8 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0308031

Self-tapping screws 3 x 8 mm (PZ1)
Produto adicionado a sua lista
A0308132 Self-tapping screw 3 x 8 mm (T10)

A0308132

Self-tapping screw 3 x 8 mm (T10) Self-tapping screw with T10 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0308132

Self-tapping screw 3 x 8 mm (T10)
Produto adicionado a sua lista
Stainless steel

Accessory

A0350007 Tilt foot

A0350007

Tilt foot The tilt foot is used for canting the unit. It can be locked into the case bottom and is retractable.

Supply 1 tilt foot

Fechar

A0350007

Tilt foot
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002

Customising options for A0266270

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Colour
off-white RAL 9002
Width
367 mm
Depth
250 mm
Height
276,5 mm
PCB length, base
350 mm
PCB width, base
220 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1228 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
