Acessórios para Caixas
B7110109

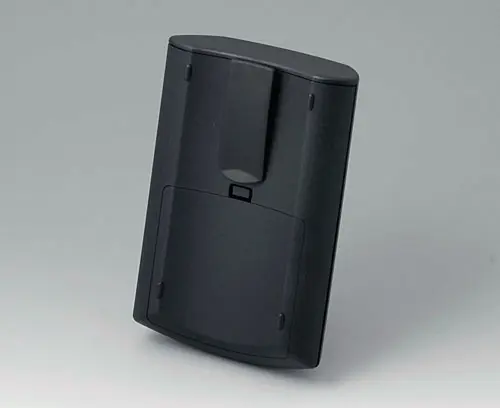

Belt / pocket clip
Special clip for ERGO-CASE S & M. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply1 clip, assembly kit
Desenho PDF 2D
Baixar arquivos 3D/2D
Baixar arquivos 3D/2D
Gerar seu Datasheet em PDF para B7110109
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Adicionar ao carrinho
B7000109
ERGO-CASE S, flat
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
Version With flat top part
Supply 1 top and 1 bottom part, assembly kit
B7000109
ERGO-CASE S, flatProduto adicionado a sua lista
black RAL 9005
80x96x32mm
B7005109
ERGO-CASE S, high
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
Version With high top part
Supply 1 top and 1 bottom part, assembly kit
B7005109
ERGO-CASE S, highProduto adicionado a sua lista
black RAL 9005
80x96x44mm
B7010109
ERGO-CASE M, flat
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).
Version With flat top part
Supply 1 top and 1 bottom part, battery compartment lid, assembly kit
B7010109
ERGO-CASE M, flatProduto adicionado a sua lista
black RAL 9005
150x100x40mm
B7010209
ERGO-CASE M, flat
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
Version With flat top part
Supply 1 top and 1 bottom part, assembly kit
B7010209
ERGO-CASE M, flatProduto adicionado a sua lista
black RAL 9005
150x100x40mm
B7015109
ERGO-CASE M, high
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory).
Version With high top part
Supply 1 top and 1 bottom part, battery compartment lid, assembly kit
B7015109
ERGO-CASE M, highProduto adicionado a sua lista
black RAL 9005
150x100x55mm
B7015209
ERGO-CASE M, high
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side.
Version With high top part
Supply 1 top and 1 bottom part, assembly kit
B7015209
ERGO-CASE M, highProduto adicionado a sua lista
black RAL 9005
150x100x55mm
Customising options for B7110109
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dados técnicos
-
Desenho / Informações
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 171 KB
- AutoCAD DWG-File 294 KB
- AutoCAD DXF-File 1 076 KB
Weight/1 part
4 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Alemanha
Serviço de customização: Podemos modificar nossos gabinetes para atender às suas necessidades específicas. Os gabinetes serão entregues totalmente finalizados e prontos para uso. Tudo o que você precisa fazer é instalar seu equipamento no interior. Veja as opções de customização para B7110109 e não se esqueça de solicitar uma cotação!
