C2305967 Pressure equalisation element M12x1.5 – High-Airflow
Scroll

C2305967

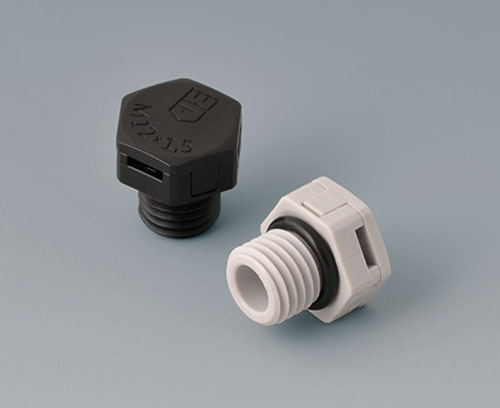

Pressure equalisation element M12x1.5 – High-Airflow

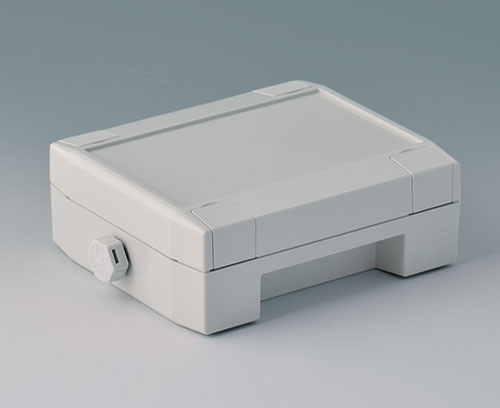

Pressure equalisation elements with a particularly high air flow rate protect sensitive electronics. A temperature drop, for example due to changing weather conditions, can cause negative pressure to build up inside sealed enclosures. Water and dirt can then be drawn in through the seals, potentially damaging the electronics.
The pressure equalisation elements feature a metric connection thread. Suitable M12 lock nuts from the OKW portfolio are available for installation inside the enclosures.

Theoretical air flow rate RQ: 24 l/h - 0.07 bar
Water ingress point: > 0.2 bar (dynamic WEP, 30 seconds)
Temperature range: -40°C / +100°C.
Seal material: Water and oil-repellent PTFE membrane
Protection rating: IP66, IP69
Note: The pressure equalisation element will not function if it is blocked by dust and/or submerged in water.

Supply

1 pressure compensation element with sealing ring

Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para C2305967

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
  • Componentes adequados

Accessory

C2312117 Counternut M12x1.5

C2312117

Counternut M12x1.5 For fixing the cable gland on the housing.

Supply 1 counternut

Fechar

C2312117

Counternut M12x1.5
Produto adicionado a sua lista
PA 6
light grey RAL 7035
  • Dados técnicos
  • Purchasing Data
Material
PA 6 (UL 94 V-0)
Protection class
IP 69, IP 66
Colour
light grey RAL 7035
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
