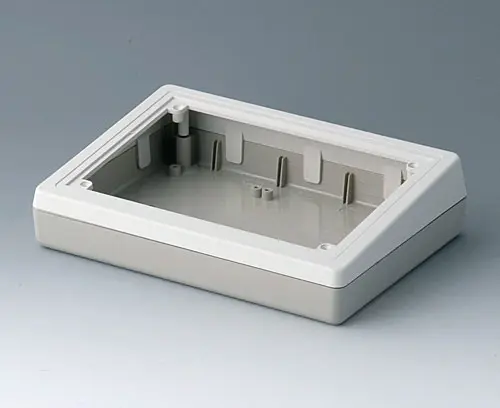

A9086265 DESK CASE 190 F

A9086265

DESK CASE 190 F

Two-part case with sloped operation area recessed 1.5 mm. Screw pillars in the base part and guide ridges for horizontal and vertical mounting of PCBs.

Version

Top prepared for front panel mounting, flat base part

Supply

1 top and base part, assembly kit

  • Componentes adequados
  • Veja Opções de personalização

Accessory to complete

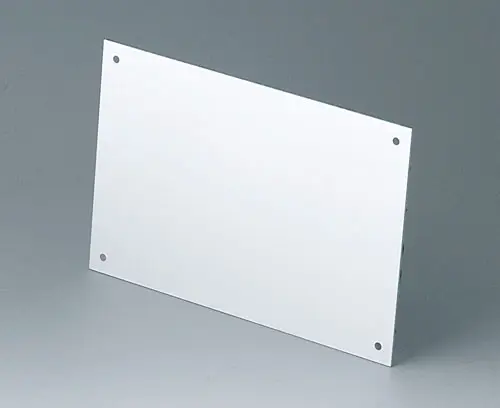

A9186001 Front panel 190 F/H

A9186001

Front panel 190 F/H Front panel for DESK CASE 190 F and H.

Supply 1 front panel (screws supplied with case)

Fechar

A9186001

Front panel 190 F/H
Produto adicionado a sua lista
Aluminium
matt anodised
161,5x106x1,5mm

Accessory "wall/holder"

B1350048 Wall suspension elements

B1350048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 50 x 100 mm, assembly kit

Fechar

B1350048

Wall suspension elements
Produto adicionado a sua lista
ABS (UL 94 HB)
pebble grey RAL 7032

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Produto adicionado a sua lista

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Fechar

A9210290

Anti-slide feet 9.5 x 3.8 mm
Produto adicionado a sua lista
transparent

Customising options for A9086265

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Colour
Bottom part pebble grey RAL 7032,
Top part off-white RAL 9002
Width
190 mm
Depth
138 mm
Height
47 mm
PCB length, base
118 mm
PCB width, base
180 mm
PCB length, top
127 mm
PCB width, top
175 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
190 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
