B4130126 Profile plate L

B4130126

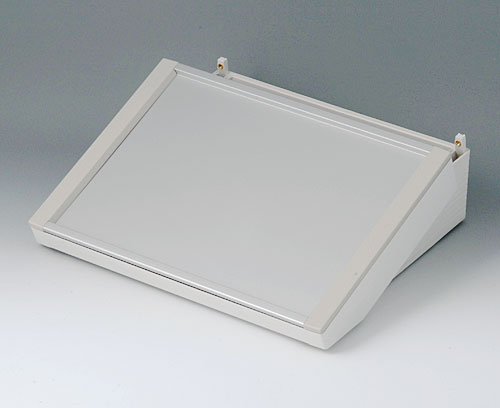

Profile plate L

Profile plate L for mounting operating elements of all kinds. Especially designed for the use with membrane keyboards. Recessed area for protecting the operating elements.

Supply

1 profile plate, 4 screws, 2 cover strips

  • Usado para
  • Veja Opções de personalização
B4030117 DATEC-TERMINAL L, Vers. I

B4030117

DATEC-TERMINAL L, Vers. I Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Basic housing, unmachined

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit

Fechar

B4030117

DATEC-TERMINAL L, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
302x272x101mm
IP 54 opt.

Customising options for B4130126

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
Colour
Profile plate matt anodised,
Cover strips pebble grey RAL 7032
Width
302 mm
Depth
220 mm
Height
8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
518 g
Customs tariff number
(OKW product)
76042990
Country of manufacture
Alemanha
