B4030621

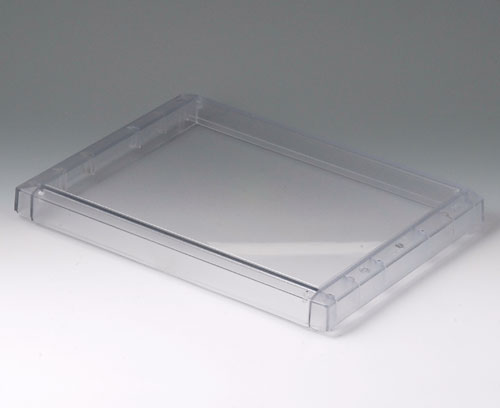

Cover L, flat

Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protectingthe electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply

1 cover, assembly kit

  • Usado para
  • Veja Opções de personalização
AltText

B4030117

DATEC-TERMINAL L, Vers. I Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Basic housing, unmachined

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit

Fechar

B4030117

DATEC-TERMINAL L, Vers. I
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
302x272x101mm
IP 54 opt.
AltText

B4030217

DATEC-TERMINAL L, Vers. II Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Machined for assembly of hinge and quick-action lock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock

Fechar

B4030217

DATEC-TERMINAL L, Vers. II
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
302x272x101mm
IP 54 opt.
AltText

B4030317

DATEC-TERMINAL L, Vers. III Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Machined for assembly of hinge, quick-action lock and keylock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock

Fechar

B4030317

DATEC-TERMINAL L, Vers. III
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
302x272x101mm
IP 54 opt.

Customising options for B4030621

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Colour
transparent
Width
302 mm
Depth
220 mm
Height
29 mm
PCB length, base
209 mm
PCB width, base
264 mm
Keypad length
195,1 mm
Keypad width
262,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
435 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
