A9072117 DATEC-POCKET-BOX L
Scroll

A9072117

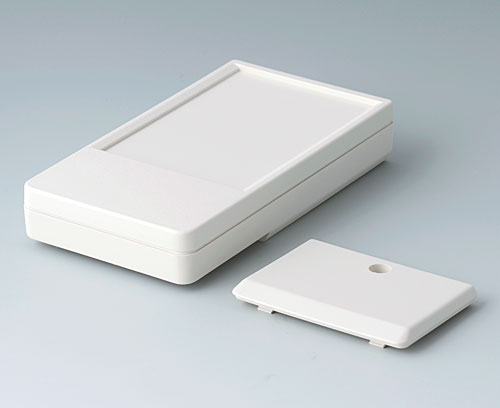

DATEC-POCKET-BOX L

Robust pocket box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply

Case-top and base, battery compartment lid, assembly kit

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A9072117

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Fechar

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produto adicionado a sua lista
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Fechar

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
Produto adicionado a sua lista
Steel
tin-plated
A9190003 Set of battery clips, 2xN/2xAA/2xAAA

A9190003

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Fechar

A9190003

Set of battery clips, 2xN/2xAA/2xAAA
Produto adicionado a sua lista
Steel
nickel-plated
A9250251 Battery spacer

A9250251

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-POCKET-BOX L.

Supply 1 spacer

Fechar

A9250251

Battery spacer
Produto adicionado a sua lista
PE foam
50x25x3mm

Accessory "carrying"

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Fechar

A9100001

Ring eyelet
Produto adicionado a sua lista
PA 6
volcano

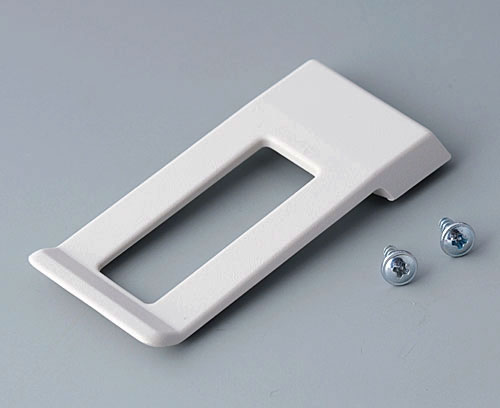

A9172107 Belt/Pocket clip

A9172107

Belt/Pocket clip Universal clip. Fixing in two location holes (bore distance 20 mm, 2 x diameter = 4.2 mm).
Application: DATEC-POCKET-BOX L/M/S (fixing already considered), SHELL-TYPE CASES 85 and 110, FLAT-PACK CASE N 100.

Supply 1 belt/pocket clip, assembly kit

Fechar

A9172107

Belt/Pocket clip
Produto adicionado a sua lista
ABS (UL 94 HB)
off-white RAL 9002
62x30mm

Accessory "screws"

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Produto adicionado a sua lista
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produto adicionado a sua lista

Customising options for A9072117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ABS (UL 94 HB)
Protection class
IP 54
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
120 mm
Width
65 mm
Height
22 mm
PCB length, base
68 mm
PCB width, base
58 mm
PCB length, top
81 mm
PCB width, top
58 mm
Keypad length
79,7 mm
Keypad width
54,8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
58 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
