A9007207
DATEC-COMPACT L

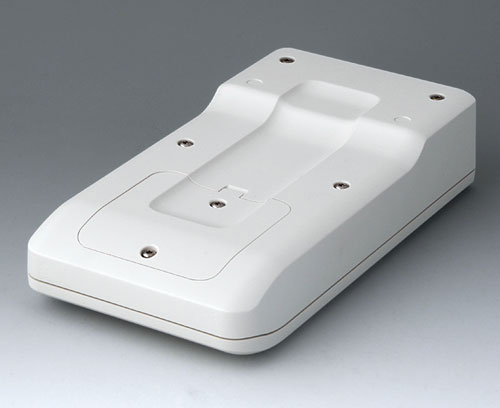

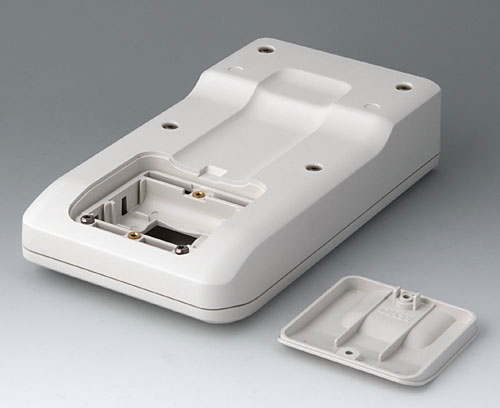

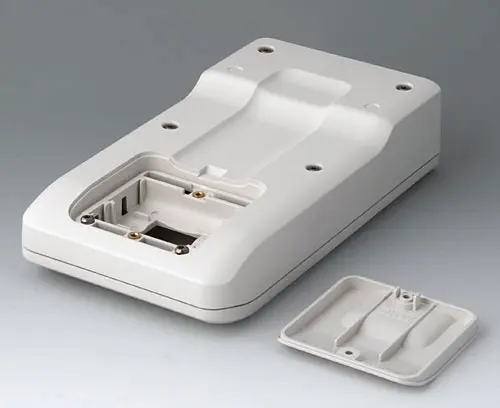

3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
VersionWith battery compartment 3 x AA
SupplyTop and bottom part, battery compartment lid, assembly kit
Gerar seu Datasheet em PDF para A9007207
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Accessory "battery"
A9190023
Supply 2 double contacts right, 1 single contact positive, 1 single contact negative
A9190023
Set of battery clips, 3 x AAnickel-plated
Accessory "station"
A9107507
Domes for mounting PCBs and components. Recesses for spring contacts (accessories).
Supply Station with bottom panel, rubber feet, assembly kit
A9107507
Station Loff-white RAL 9002
A9193031
Supply 1 spring contact
A9193031
Spring contactAccessory "wall/holder"
A9107627
Supply 1 holder
A9107627

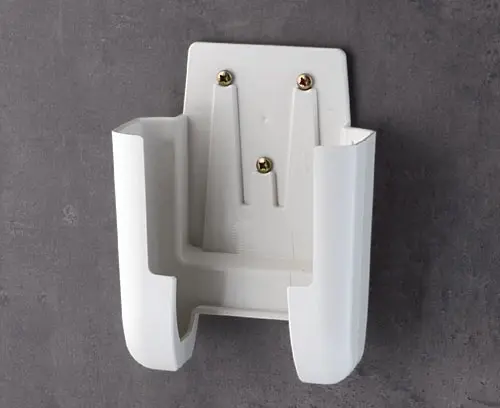

Holder Loff-white RAL 9002
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Accessory
A9193030
Supply 1 contact pin
A9193030
Contact pin
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 345 KB
- AutoCAD DWG-File 807 KB
- AutoCAD DXF-File 3 058 KB
- Visualização PDF 3D (Acrobat Reader) (gira o produto 360°, pode ocultar parte do desenho selecionado pelo mouse, acessórios...) 889 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00017182.x_t 9 096 KB
- 00017182.step 17 606 KB
- 00017182.sat 19 039 KB
(OKW product)
