Acessórios para Caixas
A9006218
DATEC-COMPACT M

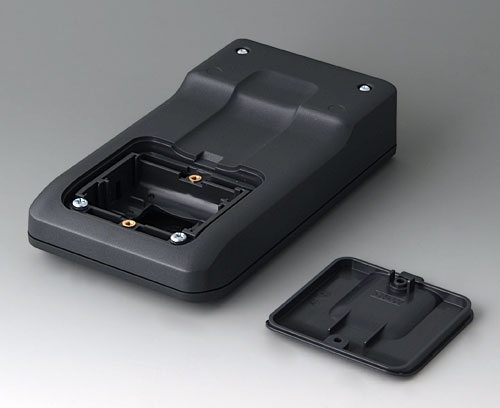

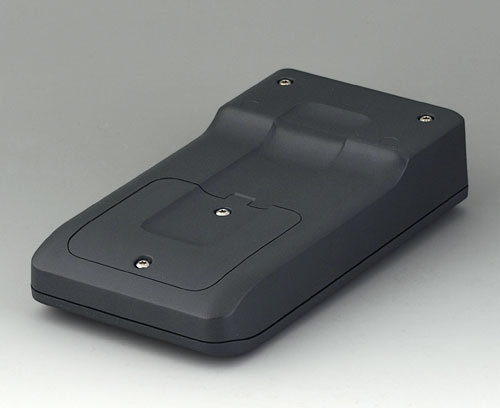

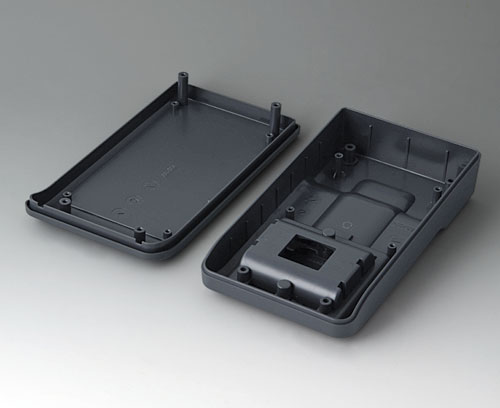

3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
VersionWith battery compartment 3 x AA
SupplyTop and bottom part, battery compartment lid, assembly kit
Gerar seu Datasheet em PDF para A9006218
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Accessory "battery"
A9190023
Supply 2 double contacts right, 1 single contact positive, 1 single contact negative
A9190023
Set of battery clips, 3 x AAnickel-plated
Accessory "station"
A9106508
Supply Station with bottom panel, rubber feet, assembly kit
A9106508
Station Mlava
A9193031
Supply 1 spring contact
A9193031
Spring contactAccessory "wall/holder"
A9106628
Supply 1 holder
A9106628
Holder Mlava
Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Accessory
A9193030
Supply 1 contact pin
A9193030
Contact pin
A9207150
Supply 2 rubber feet
A9207150
Anti-slide feet 6.5 x 2 mmDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 342 KB
- AutoCAD DWG-File 1 045 KB
- AutoCAD DXF-File 4 004 KB
- Visualização PDF 3D (Acrobat Reader) (gira o produto 360°, pode ocultar parte do desenho selecionado pelo mouse, acessórios...) 1 256 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00020354.x_t 7 287 KB
- 00020354.step 17 150 KB
- 00020354.sat 15 809 KB
(OKW product)
Serviço de customização: Podemos modificar nossos gabinetes para atender às suas necessidades específicas. Os gabinetes serão entregues totalmente finalizados e prontos para uso. Tudo o que você precisa fazer é instalar seu equipamento no interior. Veja as opções de customização para A9006218 e não se esqueça de solicitar uma cotação!
