B6123221

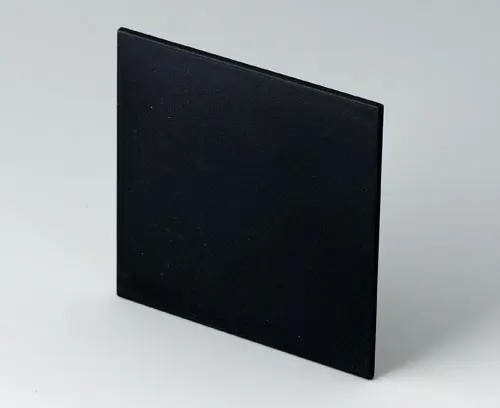

Front panel

Front panel for DIN-MODULAR CASE 72 x 72.

Supply

1 front panel

  • Usado para
  • Veja Opções de personalização
AltText

B6023011

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Fechar

B6023011

DIN-MODULAR CASE TYPE A
Produto adicionado a sua lista
PPO (UL 94 V-0)
black RAL 9005
72x72x57mm
AltText

B6023021

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Fechar

B6023021

DIN-MODULAR CASE TYPE A
Produto adicionado a sua lista
PPO (UL 94 V-0)
black RAL 9005
72x72x75mm
AltText

B6023031

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Fechar

B6023031

DIN-MODULAR CASE TYPE A
Produto adicionado a sua lista
PPO (UL 94 V-0)
black RAL 9005
72x72x100mm
AltText

B6023061

DIN-MODULAR CASE TYPE A Case and front frame are one single piece injection moulded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Fechar

B6023061

DIN-MODULAR CASE TYPE A
Produto adicionado a sua lista
PPO (UL 94 V-0)
black RAL 9005
72x72x124mm

Customising options for B6123221

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Purchasing Data
Colour
black RAL 9005
Width
67,6 mm
Height
67,6 mm
Thickness
2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
11 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Itália
