CONTROL-KNOBS 46

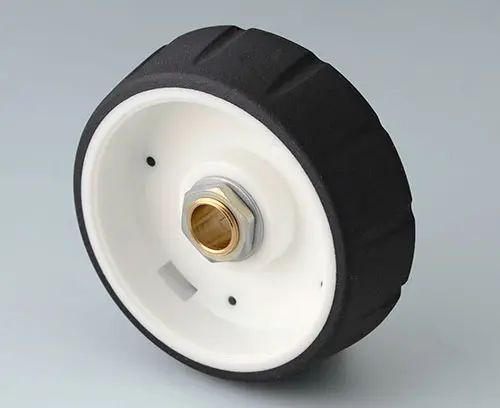

Innovative two-part plastic tuning knob design comprising a hard inner knob body made of high-quality PC and a soft-touch TPE outer shell with functional grooved appearance.
Suitable for rotary potentiometers and encoders with round shaft ends in accordance with DIN 41591. Collet system allows easy installation of the knob from the front. Continuous hole type. If required, the base (accessory) can be used on the operating panel for an elegant floating appearance.
Traffic white colour optic ring on the top surface
Supply1 knob (minimum components for 1 CONTROL-KNOB: 1 knob, 1 cover, 1 base if required)
Desenho PDF 2D
Visualização PDF 3D
Baixar arquivos 3D/2D
Baixar arquivos 3D/2D
Gerar seu Datasheet em PDF para B7146632
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Adicionar ao carrinho
Accessory "screws"
A6207009
Round nut M7 x 0.75
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6207009
Round nut M7 x 0.75Produto adicionado a sua lista
A6210009
Round nut M10 x 0.75
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6210009
Round nut M10 x 0.75Produto adicionado a sua lista
A6295009
Round nut 3/8"-32G
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6295009
Round nut 3/8"-32GProduto adicionado a sua lista
A6300000
Spanner
For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.
Supply 1 spanner
A6300000
SpannerProduto adicionado a sua lista
Accessory
B7546108
Cover 46
Suitable for CONTROL-KNOBS 46. Simply push on.
Supply 1 cover
B7546108
Cover 46Produto adicionado a sua lista
volcano
B7546109
Cover 46
Suitable for CONTROL-KNOBS 46. Simply push on.
Supply 1 cover
B7546109
Cover 46Produto adicionado a sua lista
nero
B7546208
Base 46
Suitable for all CONTROL-KNOBS 46. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.
Supply 1 base
B7546208
Base 46Produto adicionado a sua lista
volcano
B7546209
Base 46
Suitable for all CONTROL-KNOBS 46. Additional machining of front panel/enclosure front is required (hole for potentiometer spindle and slot for anti-rotation device).
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.
Use:
- Mandatory for "CONTROL-KNOBS 46, optional illumination" for installing the LED illumination.
- On request, can also be used for all "CONTROL-KNOBS 46 without illumination". Here, the base provides additional space between the knob and the operating panel for an elegant floating appearance.
Supply 1 base
B7546209
Base 46Produto adicionado a sua lista
nero
Customising options for B7146632
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Dados técnicos
-
Desenho / Informações
- Purchasing Data
Material
Knob body
Outer shell
Colour
Outer shell
nero,
Knob body traffic white RAL 9016
Knob body traffic white RAL 9016
Standards
Diameter
46 mm
Height
14,7 mm
Bore hole ″
1/4″
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
