C3604407 Operating panel M
Scroll

C3604407

Operating panel M

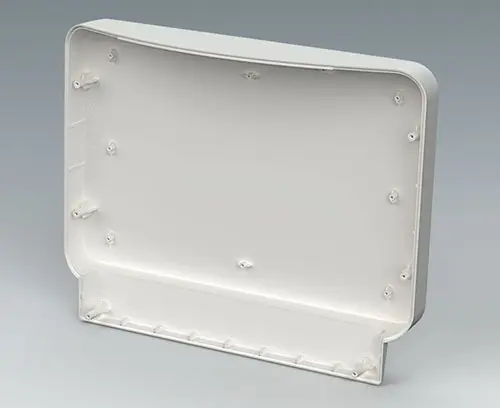

Order with COMMUNITEC M basic housing. Features a recessed area for protecting membrane keypads and integrating large-format displays up to 14" (35 cm), with a flat area below for front-mounted control elements and connectors. Includes integrated fastening pillars for PCBs or mounting plates. The operating panel is installed from the rear.

Supply

1 operating panel, assembly kit incl. 4 non-slip feet

Desenho PDF 2D
Visualização PDF 3D
Baixar arquivos 3D/2D Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para C3604407

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
  • Componentes adequados
  • Veja Opções de personalização
  • Video

System components to complete

C3602601 Handle recess panel

C3602601

Handle recess panel

Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.

The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.

Supply 1 handle recess panel

Fechar

C3602601

Handle recess panel
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
traffic grey A RAL 7042
C3602607 Handle recess panel

C3602607

Handle recess panel

Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.

The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.

Supply 1 handle recess panel

Fechar

C3602607

Handle recess panel
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
traffic white RAL 9016
C3602608 Handle recess panel

C3602608

Handle recess panel

Order with COMMUNITEC S and M basic housings. The handle recess panel is inserted into the basic housing from the front and securely screwed into place.

The integrated handle and carrying function allow the tabletop devices to be transported comfortably over short distances, increasing flexibility of use.

Supply 1 handle recess panel

Fechar

C3602608

Handle recess panel
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
anthracite grey RAL 7016
C3602807 Bottom panel

C3602807

Bottom panel

Order with COMMUNITEC S and M basic housings. Robust design with a honeycomb pattern ensures a high degree of rigidity and adequate safety for high-quality functional components. Integrated fastening pillars are provided for PCBs or mounting plates.

Assembly/Installation:
Efficient assembly of the bottom panel can be carried out outside the housing. The bottom panel, together with the electronic unit, can then be mounted into the COMMUNITEC basic housing (ordered separately). Installation and servicing are extremely easy thanks to excellent access to pre-assembled components - either from above through the opening for the “handle recess panel” and/or from the front.

Supply 1 bottom panel

Fechar

C3602807

Bottom panel
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
traffic white RAL 9016
188x150x5mm
C3602808 Bottom panel

C3602808

Bottom panel

Order with COMMUNITEC S and M basic housings. Robust design with a honeycomb pattern ensures a high degree of rigidity and adequate safety for high-quality functional components. Integrated fastening pillars are provided for PCBs or mounting plates.

Assembly/Installation:
Efficient assembly of the bottom panel can be carried out outside the housing. The bottom panel, together with the electronic unit, can then be mounted into the COMMUNITEC basic housing (ordered separately). Installation and servicing are extremely easy thanks to excellent access to pre-assembled components - either from above through the opening for the “handle recess panel” and/or from the front.

Supply 1 bottom panel

Fechar

C3602808

Bottom panel
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
anthracite grey RAL 7016
188x150x5mm

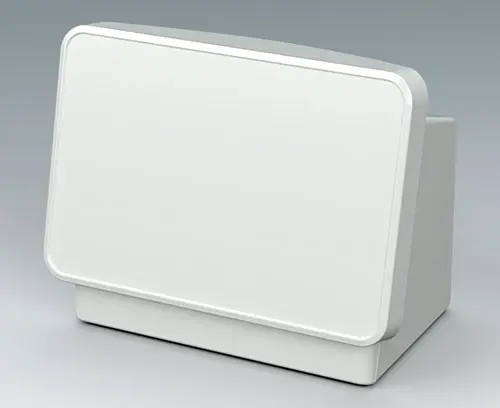

C3604707 COMMUNITEC M, basic housing

C3604707

COMMUNITEC M, basic housing

Basic housing with plenty of space for large-volume electronic assemblies. Large side areas are easy to machine, for example for connector interfaces, ventilation slots to increase heat dissipation, and more. The rear of the housing includes a recessed area to protect installed sockets, plugs, and power supply cables; an additional recess is provided for product labels. Integrated fastening pillars are provided for PCBs or mounting plates.
The ergonomically inclined design makes it practical for reading and operation. Suitable for display sizes up to 14" (35 cm). Non-slip tabletop housing thanks to self adhesive rubber feet.

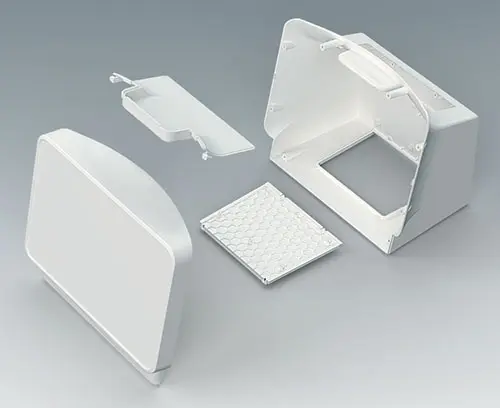

Individual housing components are available as separate items: operating panel M, bottom panel, and handle recess panel (see system components for completion). Easy to assemble and particularly service-friendly.

Supply 1 basic housing

Fechar

C3604707

COMMUNITEC M, basic housing
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
traffic white RAL 9016
340x194x273mm
IP 40
C3604708 COMMUNITEC M, basic housing

C3604708

COMMUNITEC M, basic housing

Basic housing with plenty of space for large-volume electronic assemblies. Large side areas are easy to machine, for example for connector interfaces, ventilation slots to increase heat dissipation, and more. The rear of the housing includes a recessed area to protect installed sockets, plugs, and power supply cables; an additional recess is provided for product labels. Integrated fastening pillars are provided for PCBs or mounting plates.
The ergonomically inclined design makes it practical for reading and operation. Suitable for display sizes up to 14" (35 cm). Non-slip tabletop housing thanks to self adhesive rubber feet.

Individual housing components are available as separate items: operating panel M, bottom panel, and handle recess panel (see system components for completion). Easy to assemble and particularly service-friendly.

Supply 1 basic housing

Fechar

C3604708

COMMUNITEC M, basic housing
Produto adicionado a sua lista
ASA+PC (UL 94 V-0)
anthracite grey RAL 7016
340x194x273mm
IP 40

Accessory "screws"

A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Fechar

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Produto adicionado a sua lista
Stainless steel

Customising options for C3604407

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Precisamos do seu consentimento para carregar o serviço de vídeo (Vimeo).

Utilizamos um serviço de terceiros (Vimeo) para incorporar nosso conteúdo em vídeo. Esse serviço pode coletar dados sobre a sua atividade. Por favor, leia nossa política de privacidade e dê o seu consentimento para utilizar o serviço e assistir a este vídeo.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ASA+PC (UL 94 V-0)
Colour
traffic white RAL 9016
Standards
RoHS compliant
REACH compliant
Width
328 mm
Depth
78 mm
Height
275 mm
PCB length, top
300 mm
PCB width, top
200 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
538 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha

Serviço de customização: Podemos modificar nossos gabinetes para atender às suas necessidades específicas. Os gabinetes serão entregues totalmente finalizados e prontos para uso. Tudo o que você precisa fazer é instalar seu equipamento no interior. Veja as opções de customização para C3604407 e não se esqueça de solicitar uma cotação!
