A2640060 ROUND KNOB 40, with line
Scroll

A2640060

ROUND KNOB 40, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 2,5 Nm, function = 1,6 Nm.

Supply

1 round knob

Desenho PDF 2D
Visualização PDF 3D
Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho
Gerar meu Datasheet em PDF

Gerar seu Datasheet em PDF para A2640060

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Fechar
  • Componentes adequados
  • Veja Opções de personalização

System components to complete

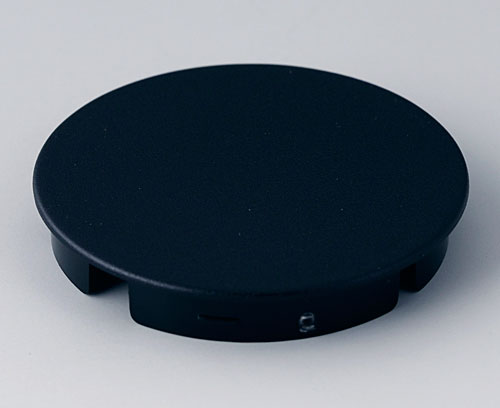

A4140000 Cover 40, without line

A4140000

Cover 40, without line Suitable for round knobs 40. Cover simply to pin up.

Supply 1 cover

Fechar

A4140000

Cover 40, without line
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005

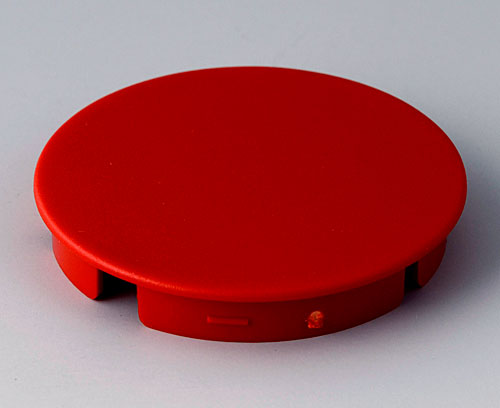

A4140002 Cover 40, without line

A4140002

Cover 40, without line Suitable for round knobs 40. Cover simply to pin up.

Supply 1 cover

Fechar

A4140002

Cover 40, without line
Produto adicionado a sua lista
ABS (UL 94 HB)
red RAL F12/0-10
A4140007 Cover 40, without line

A4140007

Cover 40, without line Suitable for round knobs 40. Cover simply to pin up.

Supply 1 cover

Fechar

A4140007

Cover 40, without line
Produto adicionado a sua lista
ABS (UL 94 HB)
pebble grey RAL 7032

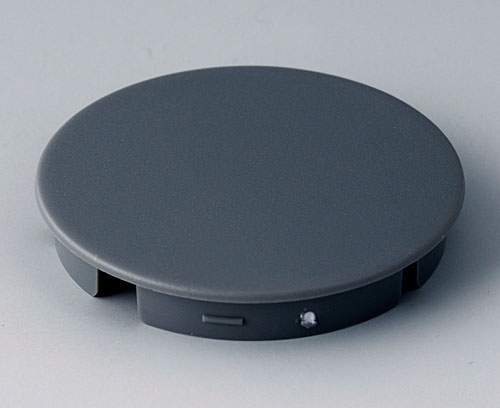

A4140008 Cover 40, without line

A4140008

Cover 40, without line Suitable for round knobs 40. Cover simply to pin up.

Supply 1 cover

Fechar

A4140008

Cover 40, without line
Produto adicionado a sua lista
ABS (UL 94 HB)
dusty grey RAL 7037

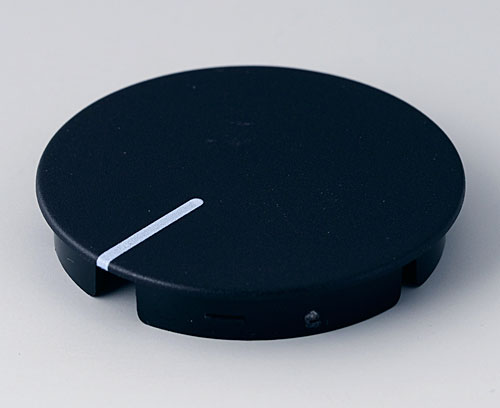

A4140100 Cover 40, with line

A4140100

Cover 40, with line Suitable for round knobs 40. Cover simply to pin up. White marking.

Supply 1 cover

Fechar

A4140100

Cover 40, with line
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005

Accessory "screws"

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Fechar

A6207009

Round nut M7 x 0.75
Produto adicionado a sua lista
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Fechar

A6210009

Round nut M10 x 0.75
Produto adicionado a sua lista
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Fechar

A6295009

Round nut 3/8"-32G
Produto adicionado a sua lista
A6300000 Spanner

A6300000

Spanner For tightening the round nut.

Supply 1 spanner

Fechar

A6300000

Spanner
Produto adicionado a sua lista

Accessory

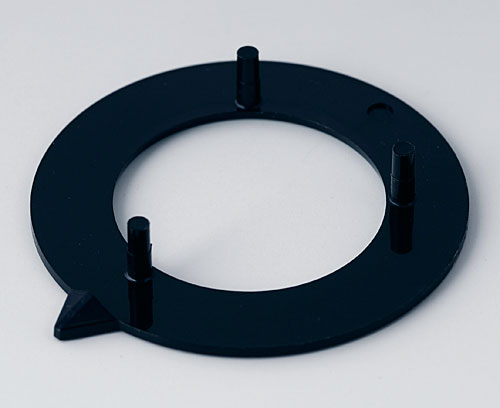

A4240000 Arrow disk 40

A4240000

Arrow disk 40 Suitable for round knob 40. Arrow disk simply to pin up.

Supply 1 arrow disk

Fechar

A4240000

Arrow disk 40
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005
A4240008 Arrow disk 40

A4240008

Arrow disk 40

Suitable for round knob 40. Arrow disk simply to pin up.

Supply 1 arrow disk

Fechar

A4240008

Arrow disk 40
Produto adicionado a sua lista
ABS (UL 94 HB)
dusty grey RAL 7037

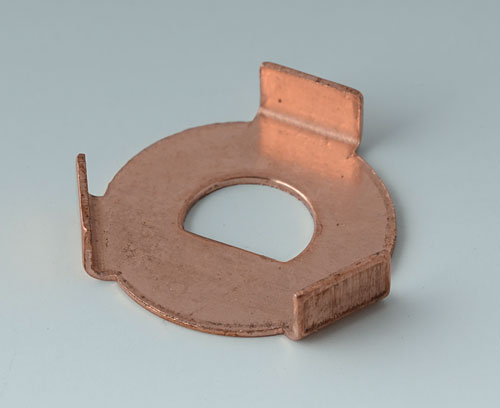

A6600064 Torsion protection 6/4.6

A6600064

Torsion protection 6/4.6 Makes torsion-free knob assembly onto profile axles 6/4.6mm possible. Suitable for round knob sizes 20 to 50.

Supply 1 torsion protection

Fechar

A6600064

Torsion protection 6/4.6
Produto adicionado a sua lista

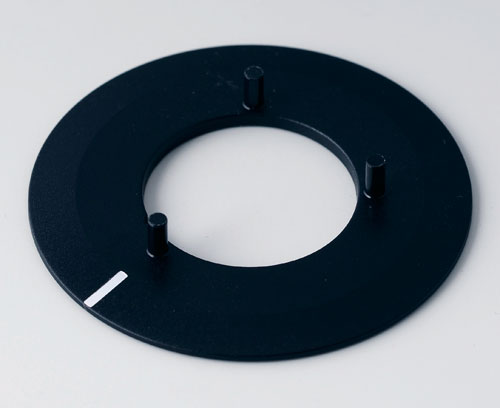

A7340010 Disk 40, with line

A7340010

Disk 40, with line Suitable for round knob 40 / COM-KNOB 40. Disk simply to pin up. White marking.

Supply 1 disk

Fechar

A7340010

Disk 40, with line
Produto adicionado a sua lista
ABS (UL 94 HB)
black RAL 9005

Customising options for A2640060

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dados técnicos
  • Desenho / Informações
  • Purchasing Data
Material
ABS (UL 94 HB)
Colour
black RAL 9005
Standards
RoHS compliant
REACH compliant
Diameter
40 mm
Height
15 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
9,5 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Alemanha
