A2431068
SPINDLE-SHAPED KNOB 31, with line
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.
1 spindle-shaped knob
Gerar seu Datasheet em PDF para A2431068
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
System components to complete
A5031000
Supply 1 cover
A5031000

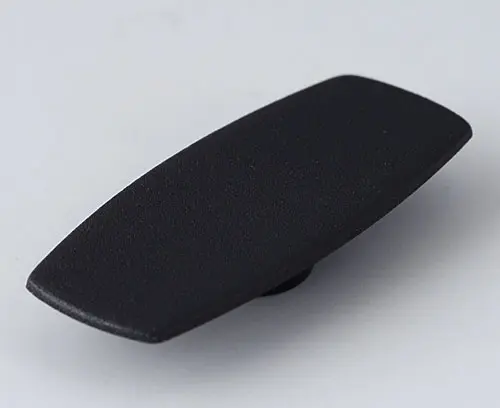

Cover 31, without lineblack RAL 9005
A5031008
Supply 1 cover
A5031008

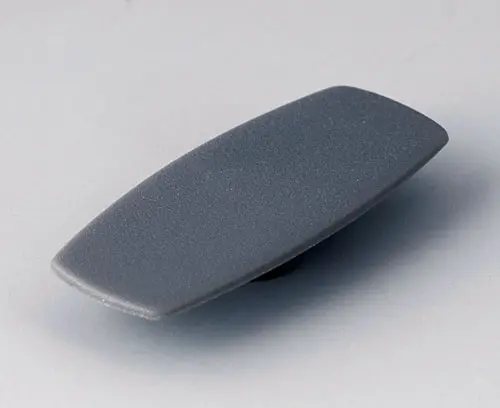

Cover 31, without linedusty grey RAL 7037
A5031100
Supply 1 cover
A5031100

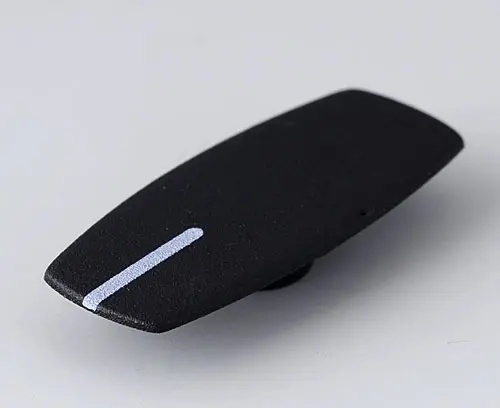

Cover 31, with lineblack RAL 9005
A5031107
Supply 1 cover
A5031107

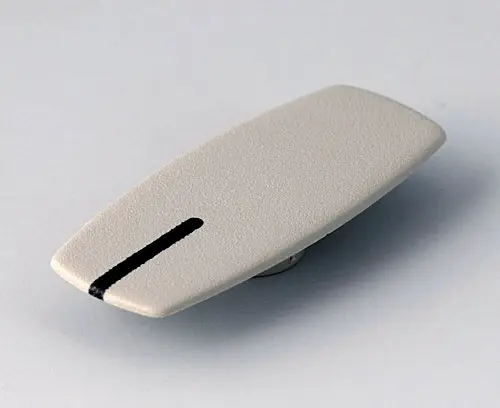

Cover 31, with linepebble grey RAL 7032
A5031108
Supply 1 cover
A5031108

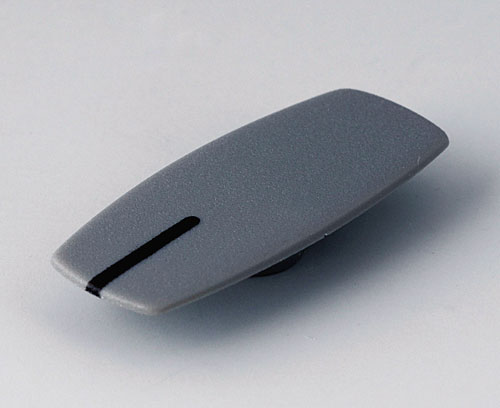

Cover 31, with linedusty grey RAL 7037
Accessory "screws"
A5131000
Supply 1 nut cover
A5131000
Nut cover 31, without lineblack RAL 9005
A5131008
Supply 1 nut cover
A5131008
Nut cover 31, without linedusty grey RAL 7037
A6207009
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6207009
Round nut M7 x 0.75
A6210009
For fixing the potentiometers at front panels.
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6210009
Round nut M10 x 0.75
A6295009
Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.
Supply 1 round nut
A6295009
Round nut 3/8"-32G
A6300000
Supply 1 spanner
A6300000
SpannerDrawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 111 KB
- AutoCAD DWG-File 180 KB
- AutoCAD DXF-File 620 KB
- Visualização PDF 3D (Acrobat Reader) (gira o produto 360°, pode ocultar parte do desenho selecionado pelo mouse, acessórios...) 440 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027232.x_t 401 KB
- 00027232.step 928 KB
- 00027232.sat 1 022 KB
(OKW product)
