Acessórios para Caixas
A3316009
Peak 16
Suitable for COM-KNOB 16 with recess. Marking element simply to pin up.
Supply1 marking element "Peak"
Gerar seu Datasheet em PDF para A3316009
Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.
Adicionar ao carrinho
System components to complete
A3016048
COM-KNOBS 16, with recess
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Supply 1 COM-KNOB (with recess)
A3016048
COM-KNOBS 16, with recessProduto adicionado a sua lista
volcano
16x16mm
Bore hole 4mm
A3016049
COM-KNOBS 16, with recess
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.
Supply 1 COM-KNOB (with recess)
A3016049
COM-KNOBS 16, with recessProduto adicionado a sua lista
nero
16x16mm
Bore hole 4mm
A3016068
COM-KNOBS 16, with recess
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 COM-KNOB (with recess)
A3016068
COM-KNOBS 16, with recessProduto adicionado a sua lista
volcano
16x16mm
Bore hole 6mm

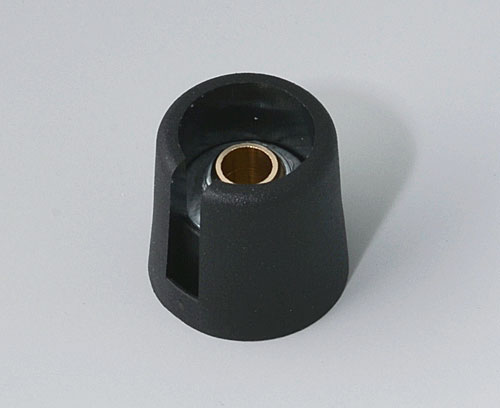

A3016069
COM-KNOBS 16, with recess
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 COM-KNOB (with recess)
A3016069
COM-KNOBS 16, with recessProduto adicionado a sua lista
nero
16x16mm
Bore hole 6mm

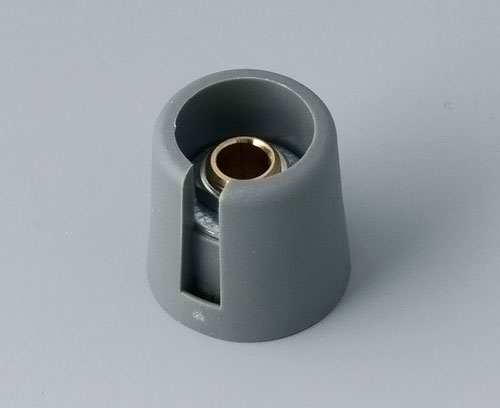

A3016638
COM-KNOBS 16, with recess
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 COM-KNOB (with recess)
A3016638
COM-KNOBS 16, with recessProduto adicionado a sua lista
volcano
16x16mm
Bore hole 1/4″
A3016639
COM-KNOBS 16, with recess
Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.
Supply 1 COM-KNOB (with recess)
A3016639
COM-KNOBS 16, with recessProduto adicionado a sua lista
nero
16x16mm
Bore hole 1/4″
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
0,23 g
Customs tariff number
(OKW product)
(OKW product)
84879090
Country of manufacture
Alemanha
