BLOB PANEL

An enclosure that can be held and operated with two hands. Two-part enclosure design with symmetrically positioned gripping areas. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply

Top and bottom parts, assembly kit

Desenho PDF 2D
Visualização PDF 3D
Baixar arquivos 3D/2D

Gerar seu Datasheet em PDF para B2514107

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho

Accessory "battery"

A9193033 Polarity reversal protection device, positive terminal AA

A9193033

Polarity reversal protection device, positive terminal AA For AA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

A9193033

Polarity reversal protection device, positive terminal AA
Produto adicionado a sua lista

off-white RAL 9002
A9193034 Polarity reversal protection device, positive terminal AAA

A9193034

Polarity reversal protection device, positive terminal AAA For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

A9193034

Polarity reversal protection device, positive terminal AAA
Produto adicionado a sua lista

off-white RAL 9002

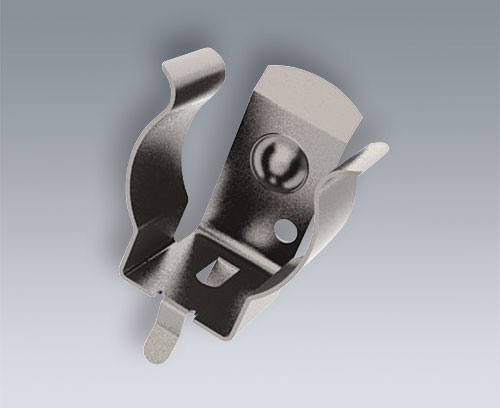

A9193035 Battery clip, AA

A9193035

Battery clip, AA For AA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

A9193035

Battery clip, AA
Produto adicionado a sua lista

nickel-plated
A9193036 Battery clip, AAA

A9193036

Battery clip, AAA For AAA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

A9193036

Battery clip, AAA
Produto adicionado a sua lista

nickel-plated

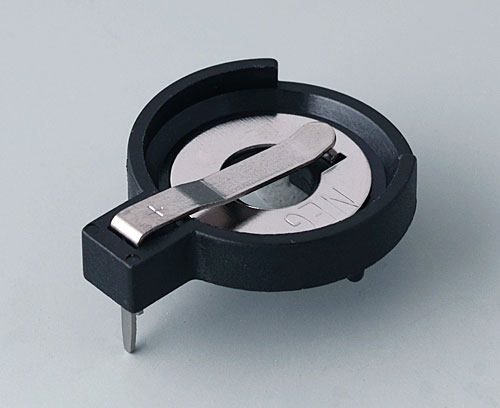

A9193037 Button cell holder, Ø 20 mm

A9193037

Button cell holder, Ø 20 mm For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

A9193037

Button cell holder, Ø 20 mm
Produto adicionado a sua lista

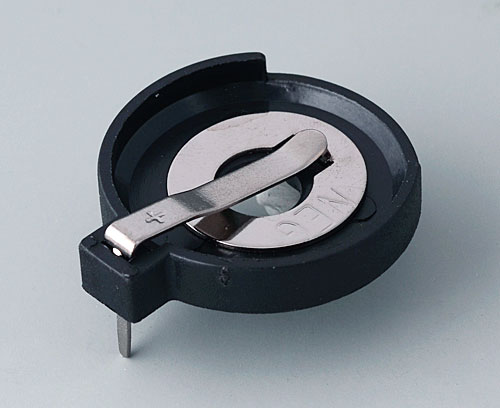

A9193038 Button cell holder, Ø 23 mm

A9193038

Button cell holder, Ø 23 mm For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

A9193038

Button cell holder, Ø 23 mm
Produto adicionado a sua lista

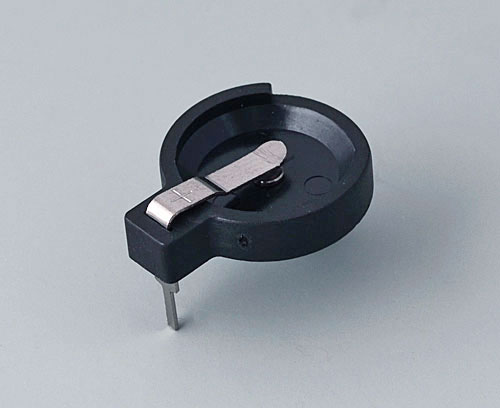

A9193039 Button cell holder, Ø 12 mm

A9193039

Button cell holder, Ø 12 mm For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

A9193039

Button cell holder, Ø 12 mm
Produto adicionado a sua lista
A9193040 Button cell holder, Ø 16 mm

A9193040

Button cell holder, Ø 16 mm For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

A9193040

Button cell holder, Ø 16 mm
Produto adicionado a sua lista

Accessory "protection"

B2610101 Cable strain, 5.0 - 5.9

B2610101

Cable strain, 5.0 - 5.9 For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version For cables Ø 5.0 - 5.9 mm

Supply 1 cable bushing

B2610101

Cable strain, 5.0 - 5.9
Produto adicionado a sua lista

volcano
B2610111 Cable strain, 4.2 - 5.0

B2610111

Cable strain, 4.2 - 5.0 For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version For cables Ø 4.2 - 5.0 mm

Supply 1 cable bushing

B2610111

Cable strain, 4.2 - 5.0
Produto adicionado a sua lista

volcano

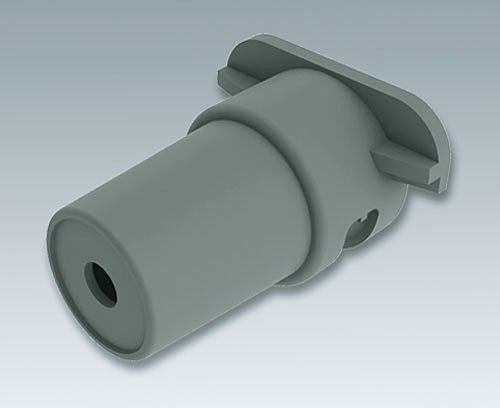

B2610121 Cable strain, 3.4 - 4.2

B2610121

Cable strain, 3.4 - 4.2 For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version For cables Ø 3.4 - 4.2 mm

Supply 1 cable bushing

B2610121

Cable strain, 3.4 - 4.2
Produto adicionado a sua lista

volcano

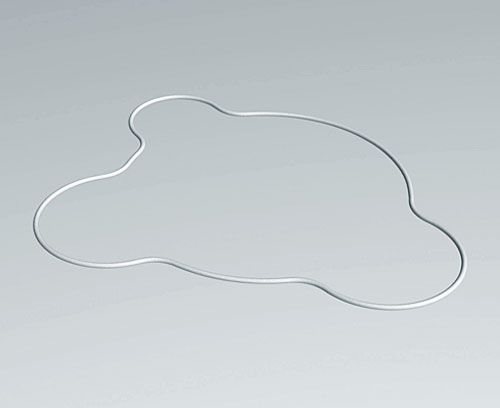

B2614001 Sealing Panel

B2614001

Sealing Panel Application: for increasing the protection class, of BLOB PANEL.

Supply 1 sealing

B2614001

Sealing Panel
Produto adicionado a sua lista

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Produto adicionado a sua lista

Customising options for B2514107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Protection class

Necessary accessories: sealing
Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
200 mm
Width
165 mm
Height
36 mm
PCB length, top
186 mm
PCB width, top
151 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
140 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha
