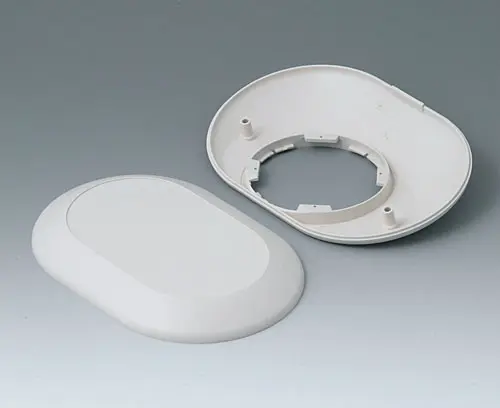

B5015207

Bottom and top part O160 F

Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version

Bottom part "inclined"

Supply

1 top and bottom part O160 F, assembly kit

Desenho PDF 2D
Visualização PDF 3D
Baixar arquivos 3D/2D

Gerar seu Datasheet em PDF para B5015207

Por favor, selecione os detalhes do produto que você gostaria de incluir ao PDF.

Adicionar ao carrinho Adicionar ao carrinho Adicionar ao carrinho
Produto adicionado a sua lista
continuar ou abrir carrinho

System components to complete

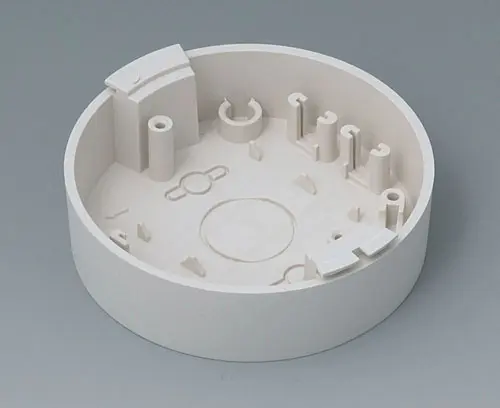

B5011117 Base

B5011117

Base Assembly unit: suitable for all bottom parts. Spacer for ceiling / wall mounting. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.). Locators for 2 x AA and strain relief (acc.) in the base.

Supply 1 base

B5011117

Base
Produto adicionado a sua lista

off-white RAL 9002

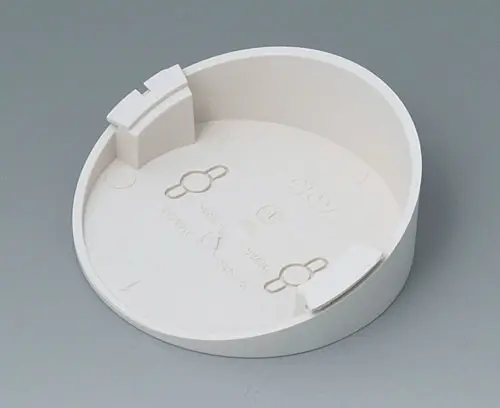

B5011217 Base 30°

B5011217

Base 30° Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).

Supply 1 base 30°

B5011217

Base 30°
Produto adicionado a sua lista

off-white RAL 9002

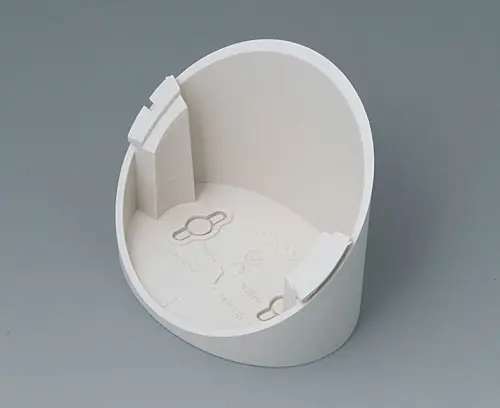

B5011317 Base 55°

B5011317

Base 55° Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).

Supply 1 base 55°

B5011317

Base 55°
Produto adicionado a sua lista

off-white RAL 9002

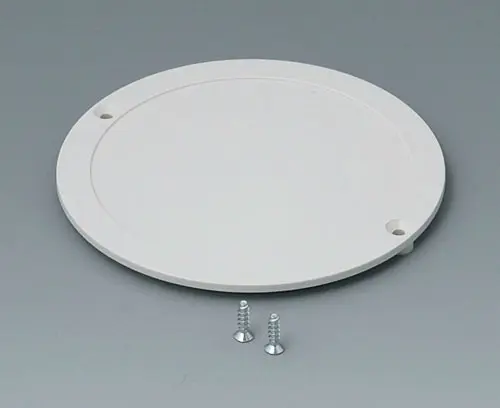

B5011847 Lid

B5011847

Lid Assembly unit: suitable for all bottom parts, screw-down (not suitable for use with battery compartment).

Supply 1 lid, assembly kit

B5011847

Lid
Produto adicionado a sua lista

off-white RAL 9002

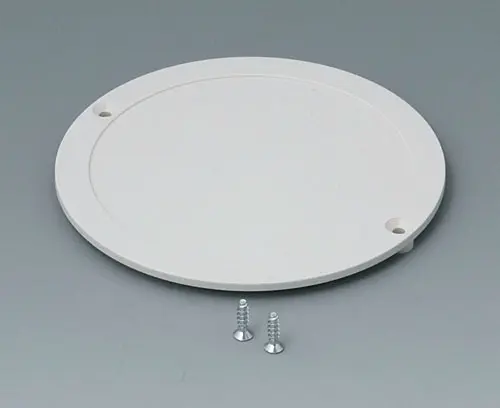

B5011857 Battery compartment lid

B5011857

Battery compartment lid Assembly unit: suitable for all bottom parts when using battery compartment 2 x AAA (acc.), screw-down.

Supply 1 battery compartment lid, assembly kit

B5011857

Battery compartment lid
Produto adicionado a sua lista

off-white RAL 9002

Accessory "battery"

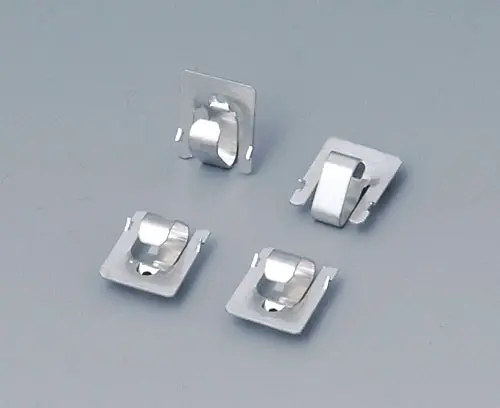

A9166001 Set of battery clips, 2 x AAA

A9166001

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 4 single contacts

A9166001

Set of battery clips, 2 x AAA
Produto adicionado a sua lista

tin-plated

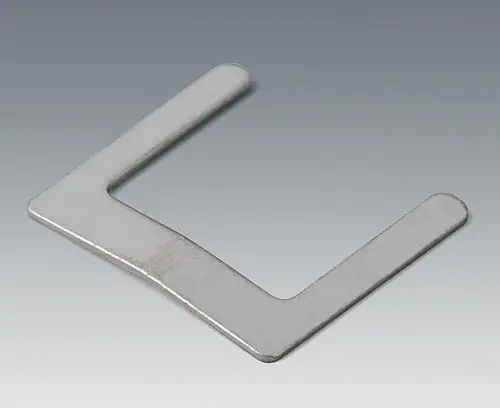

A9166002 Battery contact, 2 x AAA

A9166002

Battery contact, 2 x AAA In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.

Supply 1 battery contact

A9166002

Battery contact, 2 x AAA
Produto adicionado a sua lista

tin-plated

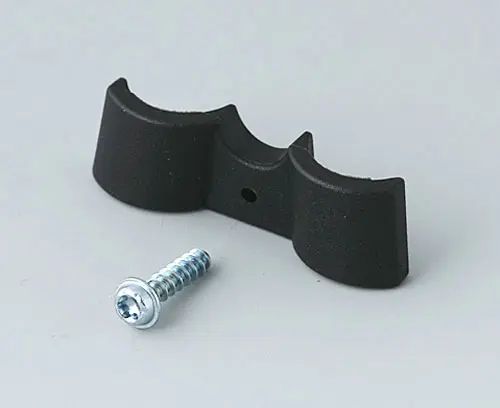

A9166003 Battery holder, 2 x AAA

A9166003

Battery holder, 2 x AAA The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.

Supply 1 battery holder, 1 self-tapping screw

A9166003

Battery holder, 2 x AAA
Produto adicionado a sua lista

black RAL 9005
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
Produto adicionado a sua lista

tin-plated
B5111107 Battery compartment, 2 x AAA

B5111107

Battery compartment, 2 x AAA Application: For 2 x 1.5 V micro cells (AAA).

Supply 1 battery compartment, assembly kit

B5111107

Battery compartment, 2 x AAA
Produto adicionado a sua lista

off-white RAL 9002

Accessory "protection"

A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

A9199005

Strain relief
Produto adicionado a sua lista

volcano

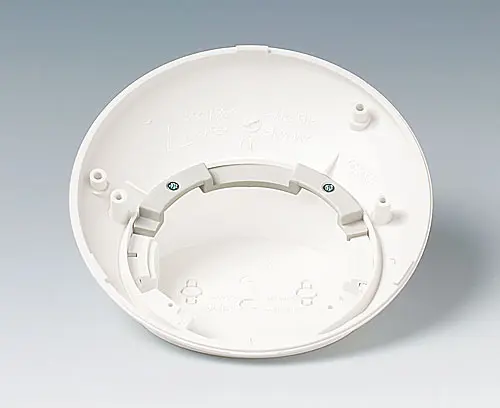

B5111707 Anti-rotation device

B5111707

Anti-rotation device To prevent the base from being removed.

Supply Anti-rotation device, incl. screws

B5111707

Anti-rotation device
Produto adicionado a sua lista

off-white RAL 9002

Accessory "wall/holder"

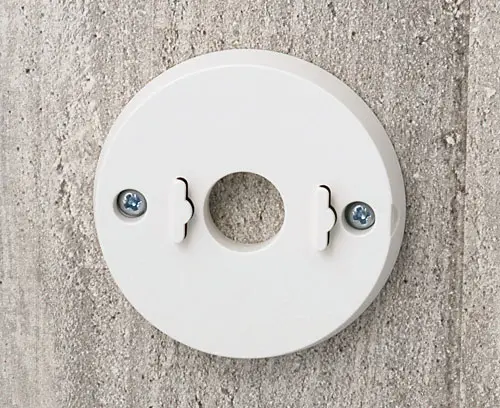

B5111307 Wall mounting set

B5111307

Wall mounting set Suitable for all versions (except Euro Plug version), for secure wall mounting of the enclosures (machining lid/bases necessary).

Supply Wall mounting set, incl. safety screw

B5111307

Wall mounting set
Produto adicionado a sua lista

off-white RAL 9002

Accessory "screws"

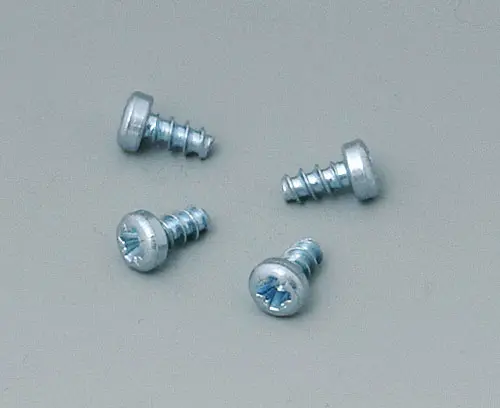

B5111201 Set of screws

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.

Supply 4 screws

B5111201

Set of screws
Produto adicionado a sua lista

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

A9207150

Anti-slide feet 6.5 x 2 mm
Produto adicionado a sua lista
transparent

Customising options for B5015207

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Colour
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Length
160 mm
Width
110 mm
Height
38 mm
PCB length, top
107 mm
PCB width, top
64 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
81 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Alemanha

Serviço de customização: Podemos modificar nossos gabinetes para atender às suas necessidades específicas. Os gabinetes serão entregues totalmente finalizados e prontos para uso. Tudo o que você precisa fazer é instalar seu equipamento no interior. Veja as opções de customização para B5015207 e não se esqueça de solicitar uma cotação!
