DIN modulární skříňka
C8100188

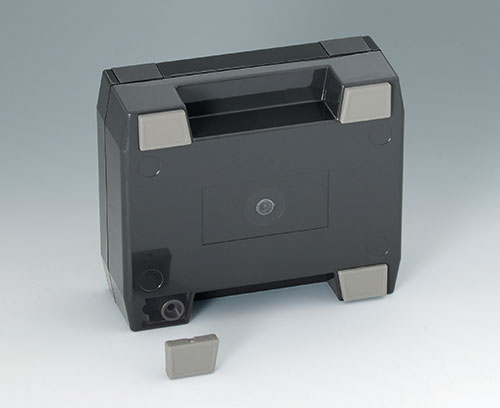

Set of enclosure feet
Ensure reliable positioning when using SOLID-BOX as a table-top enclosure. The feet are inserted into the bottom part of the housing from below and are self securing.
Supply4 enclosure feet
Generovat PDF pro C8100188
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
C8011131
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8011131
SOLID-BOX 115anthracite grey RAL 7016
135x115x50mm
, ,
C8011132
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars with a supporting surface for mounting a DIN rail.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

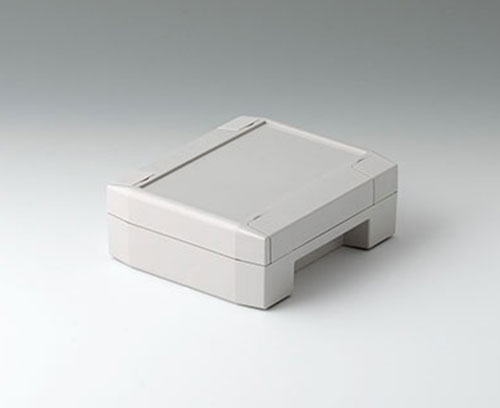

C8011132
SOLID-BOX 115light grey RAL 7035
135x115x50mm
, ,
C8014181
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

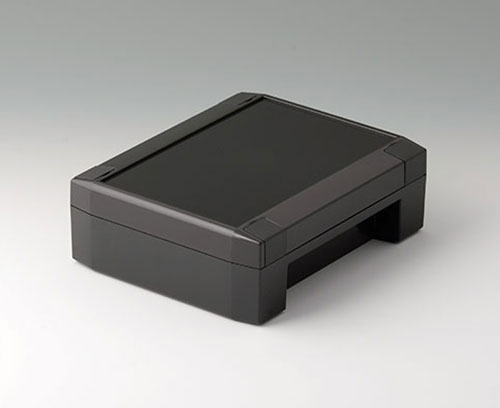

C8014181
SOLID-BOX 145anthracite grey RAL 7016
180x145x60mm
, ,
C8014182
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8014182
SOLID-BOX 145light grey RAL 7035
180x145x60mm
, ,
C8017221
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit

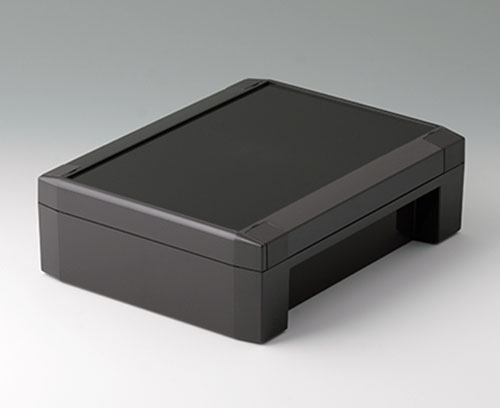

C8017221
SOLID-BOX 175anthracite grey RAL 7016
225x175x70mm
, ,
C8017222
Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 100x100 standard holders.
Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance.
Supply 1 bottom and 1 top part with seal, 4 design trims, assembly kit
C8017222
SOLID-BOX 175light grey RAL 7035
225x175x70mm
, ,
Assembly Instructions (Group)
(OKW product)
