DIN modulární skříňka
A9053209
SOFT-CASE XL
Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. Note: IR function only without intermediate ring/with intermediate ring in PMMA possible.
VersionWithout battery compartment
SupplyTop and bottom part, assembly kit
Generovat PDF pro A9053209
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "intermediate ring"
A9153011
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153011
Intermediate ring XLmatt chromed
96x154x26mm
A9153017
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153017
Intermediate ring XLoff-white RAL 9002
96x154x26mm
A9153018
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153018
Intermediate ring XLlava
96x154x26mm
A9153118
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153118
Intermediate ring XLvolcano
96x154x26mm
A9153219
Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)
A9153219
Intermediate ring XLblack RAL 9005
96x154x26mm
Accessory "wall/holder"
A9152049
Supply 1 set
A9152049

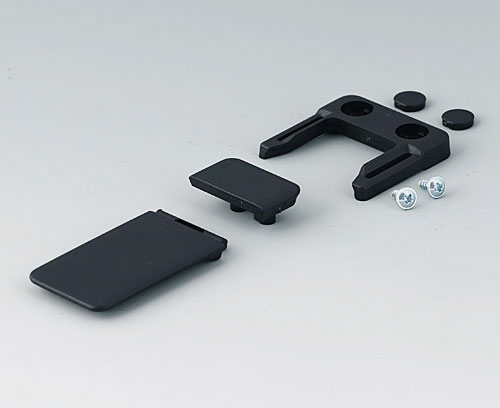

Combi-Clipblack RAL 9005
45x27mm
Accessory "carrying"
A9100002
Supply 1 ring eyelet
A9100002
Ring eyeletvolcano
A9152049
Supply 1 set
A9152049
Combi-Clipblack RAL 9005
45x27mm
Accessory "screws"
A0304031
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Accessory
A9152059
Supply 1 tilt foot bar, assembly kit
A9152059
Tilt foot barblack RAL 9005
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 598 KB
- AutoCAD DWG-File 1 249 KB
- AutoCAD DXF-File 4 758 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 456 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00009271.x_t 7 027 KB
- 00009271.STEP 16 894 KB
- 00009271.SAT 14 670 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A9053209 a nezapomeňte si vyžádat nabídku!
