Soft-Case

Kapesní pouzdro v širokém formátu

SOFT-CASE přesvědčují uživatele, protože odpovídají jejich současným potřebám designem a technologií.

  • Šikovné formáty s měkkými křivkami pro příjemný pocit

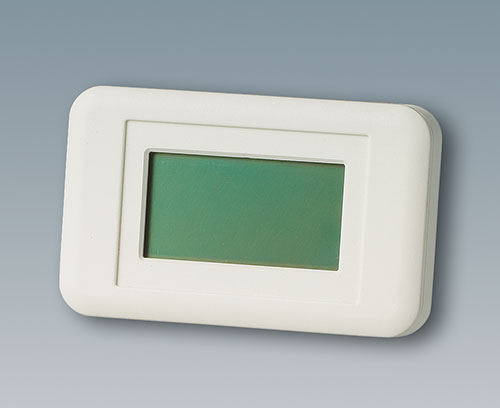

  • Jedinečná "orientace šířky" umožňuje větší zobrazení v malém prostoru uživatelsky přívětivé pro uživatele, což podporuje jak čtení displeje, tak operaci

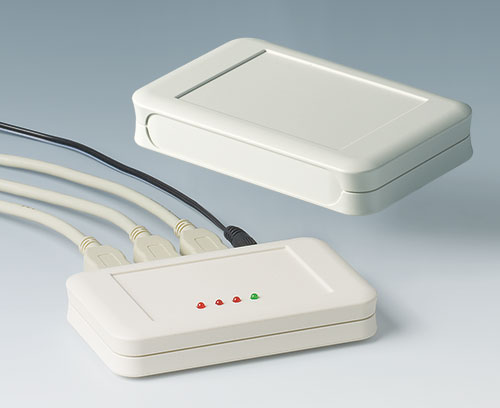

  • Velkou plochu rozhraní na dlouhé straně pro větší flexibilitu

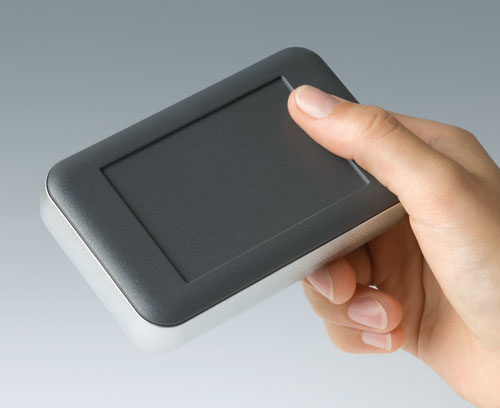

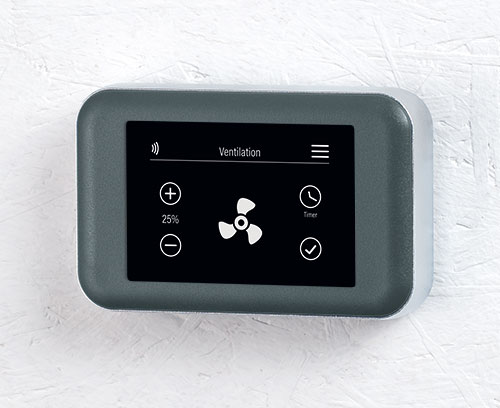

  • Univerzálně použitelné jako ruční pouzdro, skříň na plochu a stěnové pouzdro

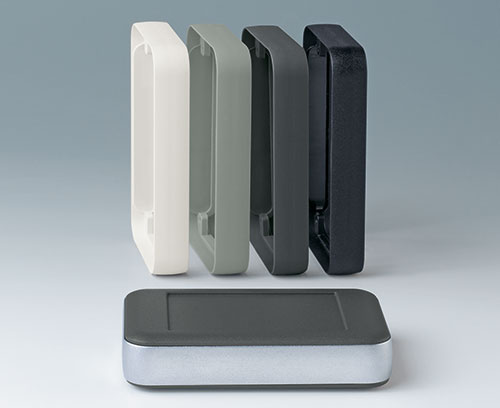

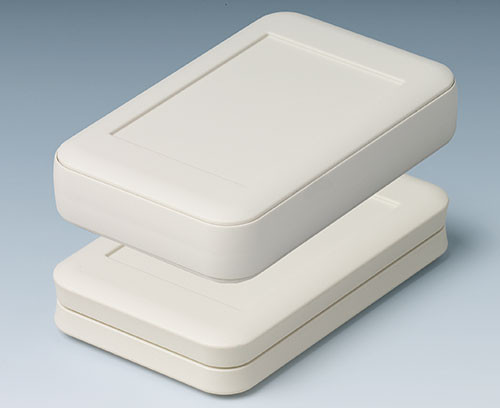

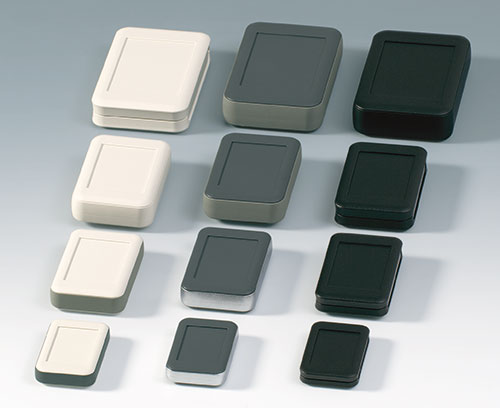

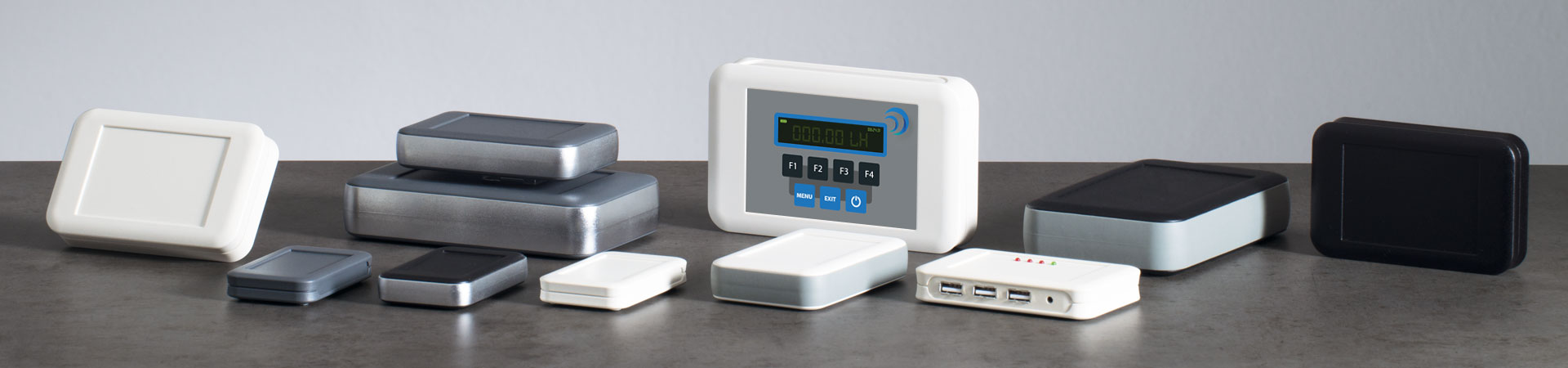

  • 4 velikosti, volitelně s mezilehlým kroužkem pro větší montážní výšku v různých provedeních: ABS v barvě krytu nebo chromátované, materiál TPE
  • Ve spojení s mezipřírubou TPE ochrana IP 54 je možná (provedení bez bateriového prostoru v ABS nebo PMMA)

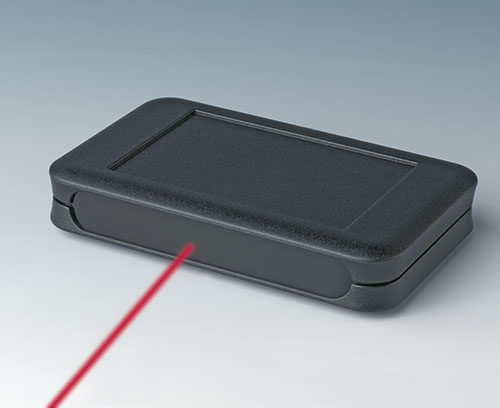

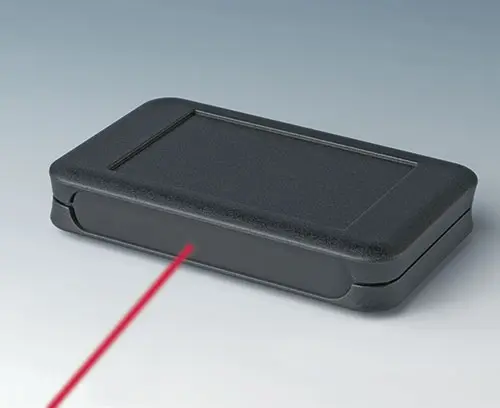

  • 2 materiály: ABS (UL 94 HB) nebo PMMA infračervené propustné (UL 94 HB)

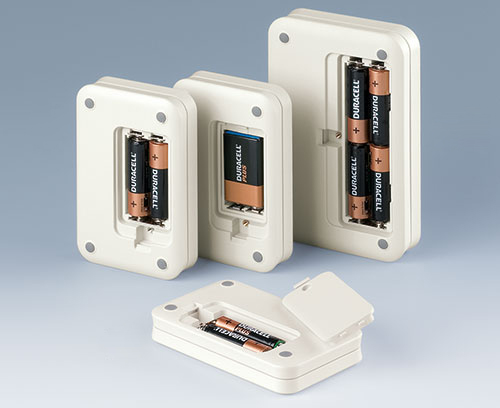

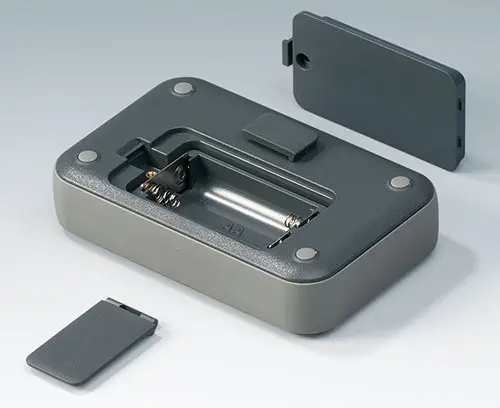

  • Bez / s bateriovým prostorem pro 2 x AAA, 2 x AA, 4 x AA nebo 1 x 9 V; Víko zavazadlového prostoru pro zámek, případně pojistku pomocí šroubu

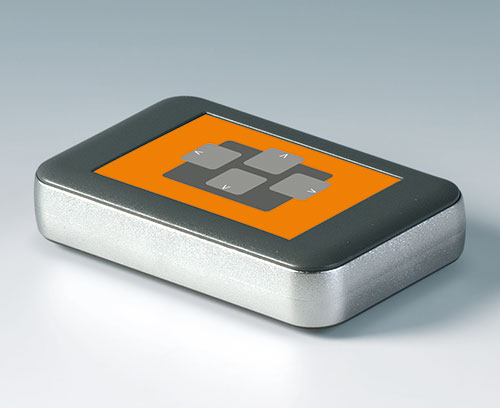

  • Zapuštěný ovládací panel pro ochranu membránové klávesnice / dekorativní fólie

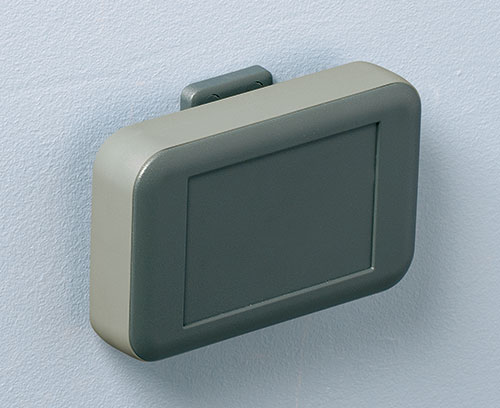

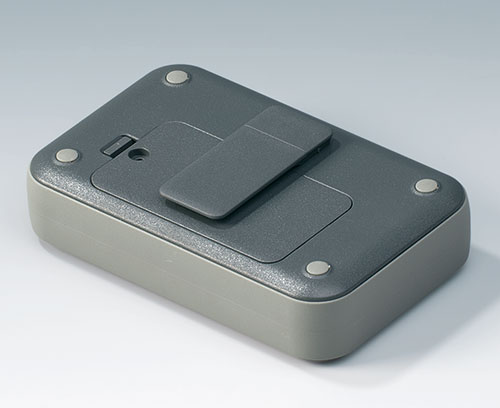

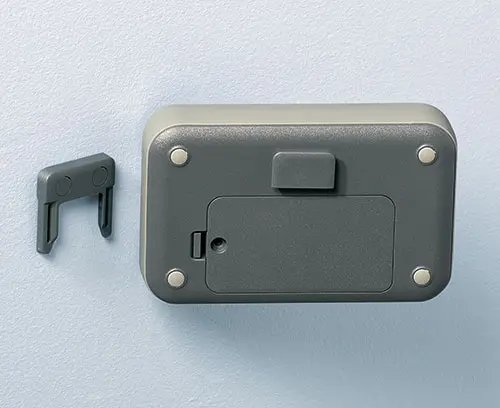

  • Klip Combi slouží jako klip na videoklip a / nebo držák na stěnu (příslušenství)

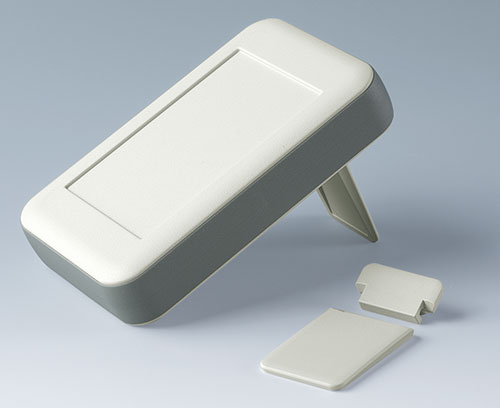

  • Nastavovací lišta pro snadné naklánění
  • Upevňovací sloupky pro PCB a montážních dílů
Generovat PDF

Learn more!

Read our blog posts on soft-case View blog posts >>

Obory aplikací

Dálkové ovládání různých typů - bezdrátové nebo kabelové, měření a regulace, digitální řídicí technologie, lékařská a laboratorní technika, periferní zařízení, komunikace, IoT/IIoT, atd.

Vyberte požadovanou verzi / velikost a klikněte na „vybrat“.

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Produkt byl přidán do Vašeho košíku.

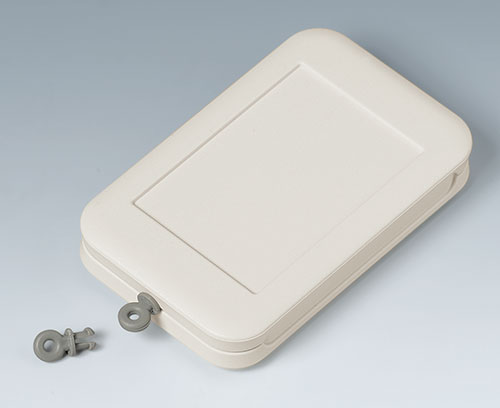

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

A9100001

Ring eyelet
Produkt byl přidán do Vašeho košíku.

volcano
A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

A9100002

Ring eyelet
Produkt byl přidán do Vašeho košíku.

volcano
A9150011 Intermediate ring S

A9150011

Intermediate ring S Sophisticated feature in metallic finish (RoHS compliant). 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

A9150011

Intermediate ring S
Produkt byl přidán do Vašeho košíku.

matt chromed
54x85x12mm
A9150017 Intermediate ring S

A9150017

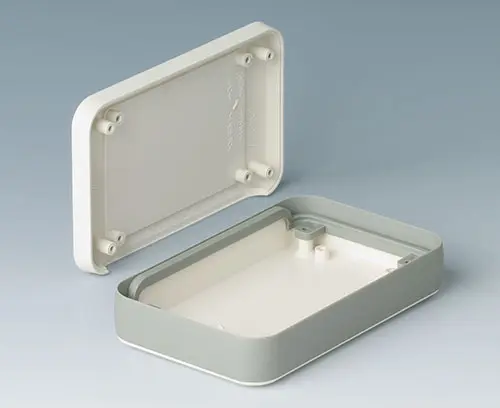

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

A9150017

Intermediate ring S
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
54x85x12mm
A9150018 Intermediate ring S

A9150018

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

A9150018

Intermediate ring S
Produkt byl přidán do Vašeho košíku.

lava
54x85x12mm
A9150118 Intermediate protection ring S

A9150118

Intermediate protection ring S Serves as a sealing ring and impact protection and ensures 2 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

A9150118

Intermediate protection ring S
Produkt byl přidán do Vašeho košíku.

volcano
54x85x12mm
A9150219 Intermediate ring S

A9150219

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

A9150219

Intermediate ring S
Produkt byl přidán do Vašeho košíku.

black RAL 9005
54x85x12mm
A9151010 Set of battery clips, 2 x AAA

A9151010

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

A9151010

Set of battery clips, 2 x AAA
Produkt byl přidán do Vašeho košíku.

nickel-plated
A9151011 Intermediate ring M

A9151011

Intermediate ring M Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

A9151011

Intermediate ring M
Produkt byl přidán do Vašeho košíku.

matt chromed
68x108x16mm
A9151017 Intermediate ring M

A9151017

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

A9151017

Intermediate ring M
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
68x108x16mm
A9151018 Intermediate ring M

A9151018

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

A9151018

Intermediate ring M
Produkt byl přidán do Vašeho košíku.

lava
68x108x16mm
A9151118 Intermediate protection ring M

A9151118

Intermediate protection ring M Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

A9151118

Intermediate protection ring M
Produkt byl přidán do Vašeho košíku.

volcano
68x108x16mm
A9151219 Intermediate ring M

A9151219

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

A9151219

Intermediate ring M
Produkt byl přidán do Vašeho košíku.

black RAL 9005
68x108x16mm
A9152010 Set of battery clips, 2/4 x AA

A9152010

Set of battery clips, 2/4 x AA For contacting the batteries.

Supply 1 double contact, 2 single contacts

A9152010

Set of battery clips, 2/4 x AA
Produkt byl přidán do Vašeho košíku.

nickel-plated
A9152011 Intermediate ring L

A9152011

Intermediate ring L Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

A9152011

Intermediate ring L
Produkt byl přidán do Vašeho košíku.

matt chromed
76x120x21mm
A9152017 Intermediate ring L

A9152017

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

A9152017

Intermediate ring L
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
76x120x21mm
A9152018 Intermediate ring L

A9152018

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

A9152018

Intermediate ring L
Produkt byl přidán do Vašeho košíku.

lava
76x120x21mm
A9152047 Combi-Clip

A9152047

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

A9152047

Combi-Clip
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
45x27mm
A9152048 Combi-Clip

A9152048

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

A9152048

Combi-Clip
Produkt byl přidán do Vašeho košíku.

lava
45x27mm
A9152049 Combi-Clip

A9152049

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

A9152049

Combi-Clip
Produkt byl přidán do Vašeho košíku.

black RAL 9005
45x27mm
A9152057 Tilt foot bar

A9152057

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

A9152057

Tilt foot bar
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
A9152058 Tilt foot bar

A9152058

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

A9152058

Tilt foot bar
Produkt byl přidán do Vašeho košíku.

lava
A9152059 Tilt foot bar

A9152059

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

A9152059

Tilt foot bar
Produkt byl přidán do Vašeho košíku.

black RAL 9005
A9152118 Intermediate protection ring L

A9152118

Intermediate protection ring L Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

A9152118

Intermediate protection ring L
Produkt byl přidán do Vašeho košíku.

volcano
76x120x21mm
A9152219 Intermediate ring L

A9152219

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

A9152219

Intermediate ring L
Produkt byl přidán do Vašeho košíku.

black RAL 9005
76x120x21mm
A9153011 Intermediate ring XL

A9153011

Intermediate ring XL Sophisticated feature in metallic finish (RoHS compliant). 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

A9153011

Intermediate ring XL
Produkt byl přidán do Vašeho košíku.

matt chromed
96x154x26mm
A9153017 Intermediate ring XL

A9153017

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

A9153017

Intermediate ring XL
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
96x154x26mm
A9153018 Intermediate ring XL

A9153018

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

A9153018

Intermediate ring XL
Produkt byl přidán do Vašeho košíku.

lava
96x154x26mm
A9153118 Intermediate ring XL

A9153118

Intermediate ring XL Serves as a sealing ring and impact protection and ensures 5 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

A9153118

Intermediate ring XL
Produkt byl přidán do Vašeho košíku.

volcano
96x154x26mm
A9153219 Intermediate ring XL

A9153219

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

A9153219

Intermediate ring XL
Produkt byl přidán do Vašeho košíku.

black RAL 9005
96x154x26mm
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

A9174006

Set of battery clips, 1 x 9 V
Produkt byl přidán do Vašeho košíku.

tin-plated

Možnosti přizpůsobení pro Soft-Case

Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
