DIN modulární skříňka
C3010101

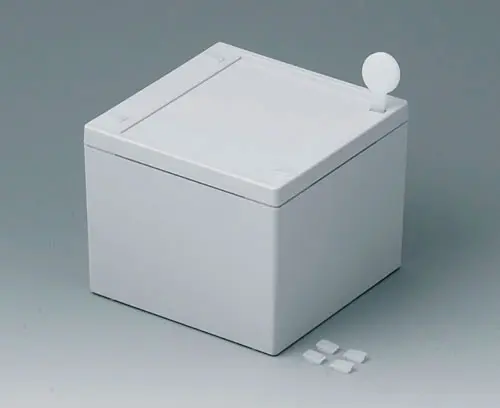

SNAPTEC 100 x 100
Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.
Supply1 top and base part with sealing, covers for the locking openings, dismantling key
Generovat PDF pro C3010101
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "protection"
C2306917
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2306917
Pressure equalisation element M6x0.75light grey RAL 7035
C2310917
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).
Supply 1 pressure equalisation element, 1 seal washer, 1 nut
C2310917
Pressure equalisation element M10x1light grey RAL 7035
C2316147
Supply 1 cable grommet
C2316147
Cable grommetlight grey RAL 7035
C2320137
Supply 1 cable grommet
C2320137
Cable grommetlight grey RAL 7035
C2320147
Supply 1 cable grommet
C2320147
Cable grommetlight grey RAL 7035
Accessory "wall/holder"
C2299028
Supply 4 pieces including fixing elements
C2299028
Wall mounting bracketslight grey RAL 7035
Accessory "screws"
A0306031
Supply 1 self-tapping screw
A0306031
Self-tapping screws 3 x 6 mm (PZ1)Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 241 KB
- AutoCAD DWG-File 529 KB
- AutoCAD DXF-File 1 909 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 840 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00007975.x_t 3 720 KB
- 00007975.STEP 8 570 KB
- 00007975.SAT 9 644 KB
(OKW product)
