DIN modulární skříňka
C6404107
SMART-PANEL S114

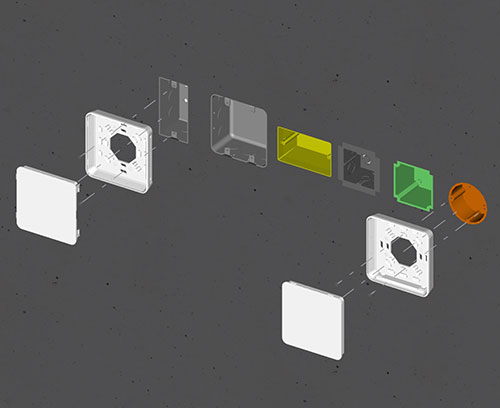

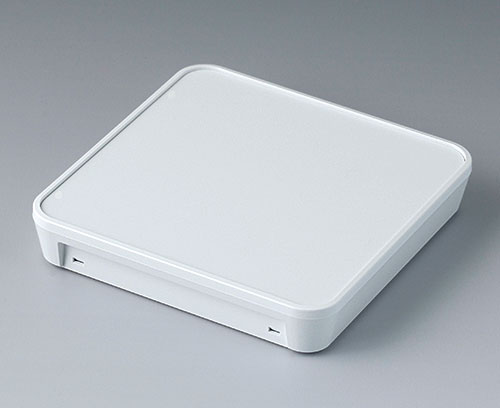

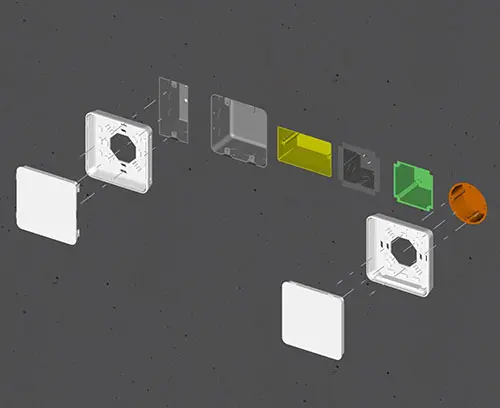

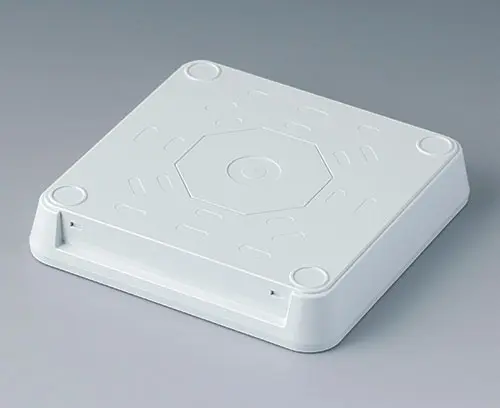

Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.
SupplyTop and bottom parts
Generovat PDF pro C6404107
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "screws"
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Accessory
A9210180
Supply 2 rubber feet
A9210180

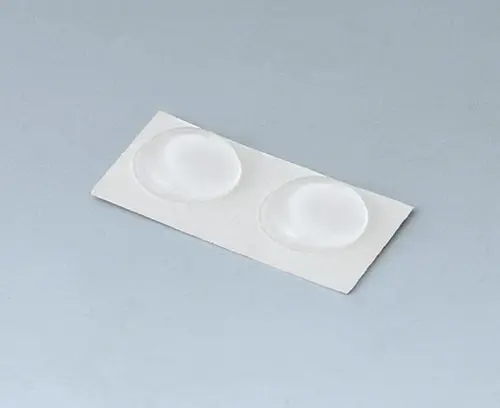

Anti-slide feet 10,1 x 1.8 mm

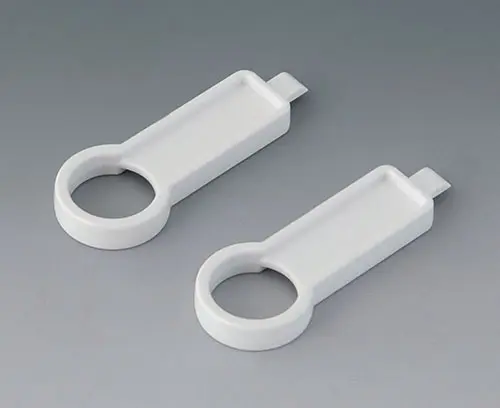

C6502010
Supply 2 opening tools
C6502010
Opening tool settraffic white RAL 9016
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 378 KB
- AutoCAD DWG-File 690 KB
- AutoCAD DXF-File 2 600 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 070 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00027602.x_t 4 356 KB
- 00027602.step 9 742 KB
- 00027602.sat 9 693 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro C6404107 a nezapomeňte si vyžádat nabídku!
