DIN modulární skříňka
A9068209
SMART-CASE XL, Vers. I
Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.
VersionWith battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3)
SupplyCase-top and base, battery compartment lid, assembly kit
2D PDF Zobrazení
3D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro A9068209
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
Accessory "battery"
A9160003
Plug-in contact, 1 x 9 V (PP3)
Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).
Application: for a 9 V flat battery (PP3).
Supply 1 plug-in contact
A9160003
Plug-in contact, 1 x 9 V (PP3)Produkt byl přidán do Vašeho košíku.
A9190002
Set of battery clips, 2xN/2xAA/2xAAA
For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).
Note application ART-CASE: only for base suitable (2 x AA).
Supply 1 double contact, 2 single contacts
A9190002
Set of battery clips, 2xN/2xAA/2xAAAProdukt byl přidán do Vašeho košíku.
tin-plated
A9190003
Set of battery clips, 2xN/2xAA/2xAAA
For contacting the batteries.
Supply 1 double contact, 2 single contacts
A9190003
Set of battery clips, 2xN/2xAA/2xAAAProdukt byl přidán do Vašeho košíku.
nickel-plated
Accessory "station"
A9166004
Set of pull-relief
For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.
Supply 2 preshaped pull-relief clamps, 2 self-tapping screws
A9166004
Set of pull-reliefProdukt byl přidán do Vašeho košíku.
volcano
A9168039

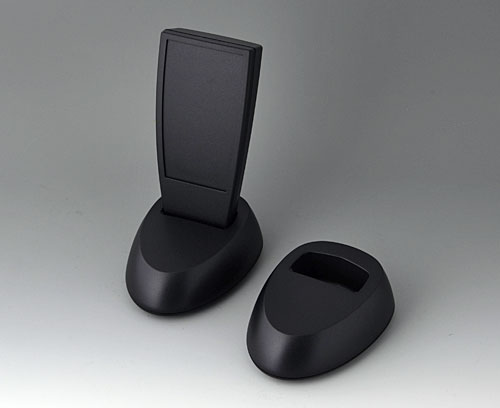

Station XL
Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.
Supply Bottom and top part, rubber feet, assembly kit
A9168039
Station XLProdukt byl přidán do Vašeho košíku.
black RAL 9005
A9193032
Spring contact
Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.
Supply 1 spring contact
A9193032
Spring contactProdukt byl přidán do Vašeho košíku.
Accessory "wall/holder"
A9167029
Holding clamp
Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 holding clamp, assembly kit
A9167029
Holding clampProdukt byl přidán do Vašeho košíku.
black RAL 9005
A9168005
Adhesive foil XL
For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.
Supply 1 piece
A9168005
Adhesive foil XLProdukt byl přidán do Vašeho košíku.
A9168309
Holder XL
Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.
Supply 1 holder
A9168309
Holder XLProdukt byl přidán do Vašeho košíku.
black RAL 9005
Accessory "carrying"
A9167019
Belt/pocket clip
Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.
Supply 1 Clip, assembly kit
A9167019
Belt/pocket clipProdukt byl přidán do Vašeho košíku.
black RAL 9005
Accessory "screws"
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0304031
Self-tapping screws 2.2 x 5 mm (PZ1)Produkt byl přidán do Vašeho košíku.
Accessory
A9193030
Contact pin
Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.
Supply 1 contact pin
A9193030
Contact pinProdukt byl přidán do Vašeho košíku.
Customising options for A9068209
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Materiál
Bottom part
Top part
Třída produktu
Barva
black RAL 9005
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Délka
168 mm
Šířka
74,4 mm
Výška
35,4 mm
PCB length, base
84 mm
PCB width, base
61 mm
PCB length, top
94 mm
PCB width, top
61 mm
Keypad length
110,5 mm
Keypad width
61,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 403 KB
- AutoCAD DWG-File 1 683 KB
- AutoCAD DXF-File 6 394 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 1 636 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012293.x_t 9 055 KB
- 00012293.STEP 7 134 KB
- 00012293.SAT 8 498 KB
External Accessory - miscellaneous
Weight/1 part
105 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro A9068209 a nezapomeňte si vyžádat nabídku!
