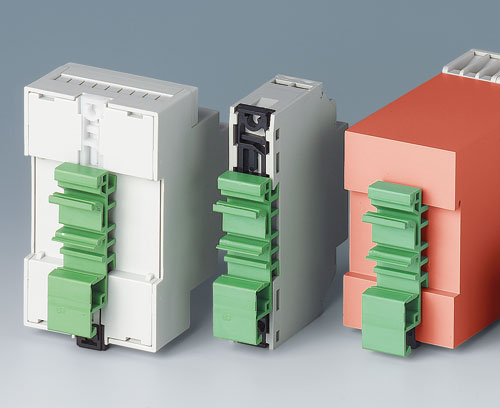

B6811542

Adapter

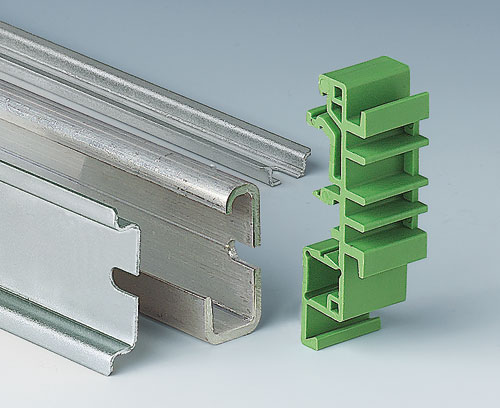

Suitable for DIN EN 60715 (TH35), EN 60715 (G32) and EN 60715 (TH15).

Supply

1 piece

Generovat PDF pro B6811542

Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

Přidat do košíku Přidat do košíku Přidat do košíku
Produkt byl přidán do Vašeho košíku.
pokračovat v nákupu nebo otevřít můj košík
B6700100 RAILTEC C, 1 module, Vers. I

B6700100

RAILTEC C, 1 module, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

B6700100

RAILTEC C, 1 module, Vers. I
Produkt byl přidán do Vašeho košíku.

light grey
17,5x90x58mm
B6700102 RAILTEC C, 1 module, Vers. II

B6700102

RAILTEC C, 1 module, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

B6700102

RAILTEC C, 1 module, Vers. II
Produkt byl přidán do Vašeho košíku.

light grey
17,5x90x58mm
B6700104 RAILTEC C, 1 module, Vers. III

B6700104

RAILTEC C, 1 module, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Front panel see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

B6700104

RAILTEC C, 1 module, Vers. III
Produkt byl přidán do Vašeho košíku.

light grey
17,5x90x58mm
B6700106 RAILTEC C, 1 module, Vers. IV

B6700106

RAILTEC C, 1 module, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

B6700106

RAILTEC C, 1 module, Vers. IV
Produkt byl přidán do Vašeho košíku.

light grey
17,5x90x58mm
B6701100 RAILTEC C, 2 modules, Vers. I

B6701100

RAILTEC C, 2 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH 35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

B6701100

RAILTEC C, 2 modules, Vers. I
Produkt byl přidán do Vašeho košíku.

light grey
36x90x58mm
B6701102 RAILTEC C, 2 modules, Vers. II

B6701102

RAILTEC C, 2 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

B6701102

RAILTEC C, 2 modules, Vers. II
Produkt byl přidán do Vašeho košíku.

light grey
36x90x58mm
B6701104 RAILTEC C, 2 modules, Vers. III

B6701104

RAILTEC C, 2 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

B6701104

RAILTEC C, 2 modules, Vers. III
Produkt byl přidán do Vašeho košíku.

light grey
36x90x58mm
B6701106 RAILTEC C, 2 modules, Vers. IV

B6701106

RAILTEC C, 2 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

B6701106

RAILTEC C, 2 modules, Vers. IV
Produkt byl přidán do Vašeho košíku.

light grey
36x90x58mm
B6702100 RAILTEC C, 3 modules, Vers. I

B6702100

RAILTEC C, 3 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

B6702100

RAILTEC C, 3 modules, Vers. I
Produkt byl přidán do Vašeho košíku.

light grey
53x90x58mm
B6702102 RAILTEC C, 3 modules, Vers. II

B6702102

RAILTEC C, 3 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

B6702102

RAILTEC C, 3 modules, Vers. II
Produkt byl přidán do Vašeho košíku.

light grey
53x90x58mm
B6702104 RAILTEC C, 3 modules, Vers. III

B6702104

RAILTEC C, 3 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

B6702104

RAILTEC C, 3 modules, Vers. III
Produkt byl přidán do Vašeho košíku.

light grey
53x90x58mm
B6702106 RAILTEC C, 3 modules, Vers. IV

B6702106

RAILTEC C, 3 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

B6702106

RAILTEC C, 3 modules, Vers. IV
Produkt byl přidán do Vašeho košíku.

light grey
53x90x58mm
B6703100 RAILTEC C, 4 modules, Vers. I

B6703100

RAILTEC C, 4 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

B6703100

RAILTEC C, 4 modules, Vers. I
Produkt byl přidán do Vašeho košíku.

light grey
71x90x58mm
B6703102 RAILTEC C, 4 modules, Vers. II

B6703102

RAILTEC C, 4 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

B6703102

RAILTEC C, 4 modules, Vers. II
Produkt byl přidán do Vašeho košíku.

light grey
71x90x58mm
B6703104 RAILTEC C, 4 modules, Vers. III

B6703104

RAILTEC C, 4 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

B6703104

RAILTEC C, 4 modules, Vers. III
Produkt byl přidán do Vašeho košíku.

light grey
71x90x58mm
B6703106 RAILTEC C, 4 modules, Vers. IV

B6703106

RAILTEC C, 4 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

B6703106

RAILTEC C, 4 modules, Vers. IV
Produkt byl přidán do Vašeho košíku.

light grey
71x90x58mm
Materiál

Barva
light grey
Standards
RoHS compliant
DIN EN 60715 G32
DIN EN 60715 TH35
DIN EN 60715 TH15
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
UK
