DIN modulární skříňka

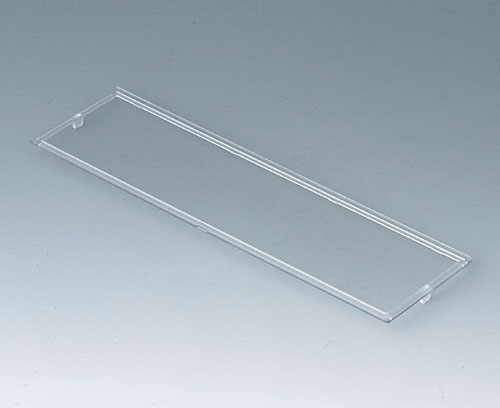

B6605100
Lid, 9 modules
Locking lid for protecting the display and operating elements.
Supply1 lid
Generovat PDF pro B6605100
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.

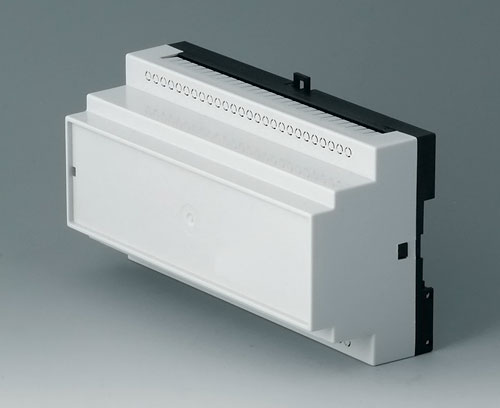

B6505110
Version With perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin
Supply 1 base part with locking clip, 1 top part
B6505110
RAILTEC B, 9 modules, Vers. Vlight grey RAL 7035
157x86x59mm

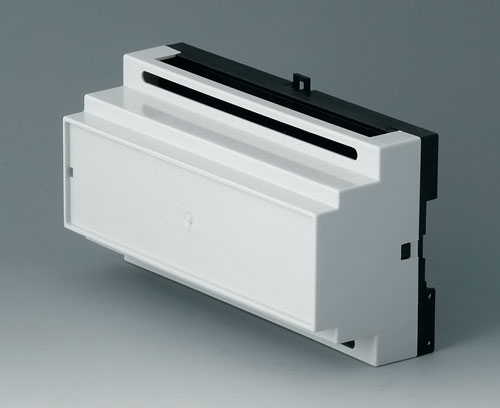

B6505111
Version For terminal blocks 5.0 / 5.08 (52 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6505111
RAILTEC B, 9 modules, Vers. Ilight grey RAL 7035
157x86x59mm

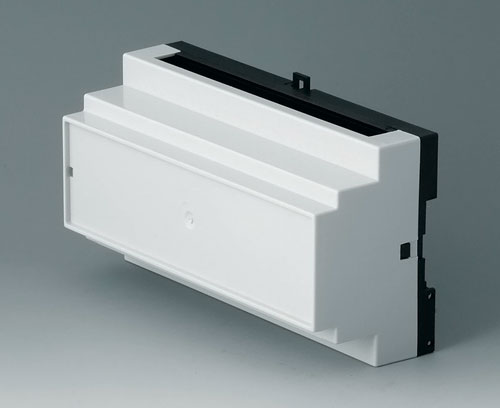

B6505112
Version For plug header (4 x 13-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6505112
RAILTEC B, 9 modules, Vers. IIlight grey RAL 7035
157x86x59mm

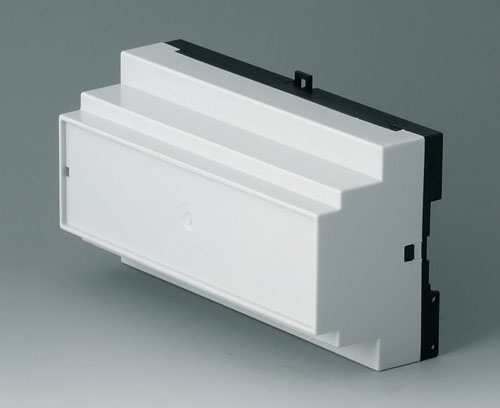

B6505113
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6505113
RAILTEC B, 9 modules, Vers. IIIlight grey RAL 7035
157x86x59mm
B6505114
Version For terminal blocks 5.0 / 5.08 (52 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6505114
RAILTEC B, 9 modules, Vers. Ilight grey RAL 7035
157x86x59mm
B6505115
Version For plug header (4 x 13-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6505115
RAILTEC B, 9 modules, Vers. IIlight grey RAL 7035
157x86x59mm
B6505116
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6505116
RAILTEC B, 9 modules, Vers. IIIlight grey RAL 7035
157x86x59mm

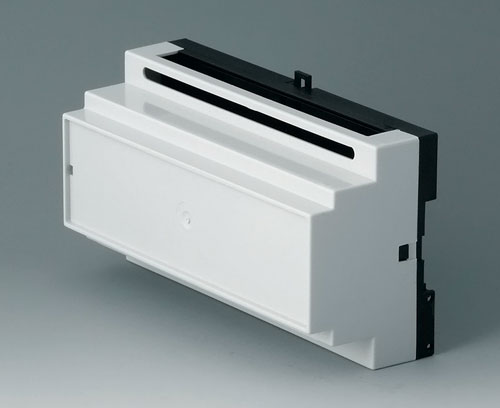

B6505117
Version For terminal blocks 5.0 / 5.08 (26 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6505117
RAILTEC B, 9 modules, Vers. IVlight grey RAL 7035
157x86x59mm
B6505118
Version For terminal blocks 5.0 / 5.08 (26 terminals max., only on bottom)
Supply 1 base part with locking clip, 1 top part
B6505118
RAILTEC B, 9 modules, Vers. IVlight grey RAL 7035
157x86x59mm

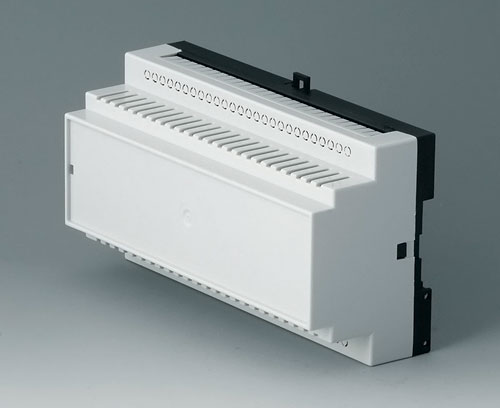

B6505119
Version With perforations for max. 52 terminal blocks 5.0 or 4 plug headers 13-pin
Supply 1 base part with locking clip, 1 top part
B6505119
RAILTEC B, 9 modules, Vers. Vlight grey RAL 7035
157x86x59mm

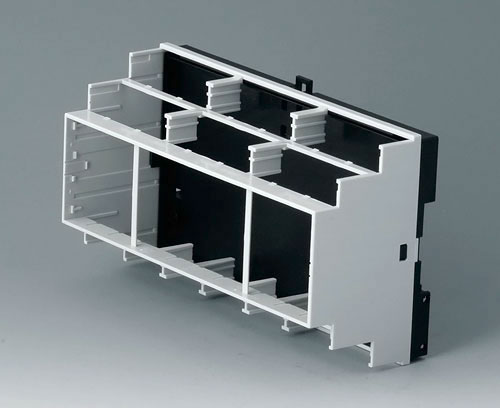

B6505121
Version Individual configuration see accessories
Supply 1 base part with locking clip, 1 top part
B6505121
RAILTEC B, 9 modules, Vers. VIlight grey RAL 7035
157x90x58mm
B6515111
Version For terminal blocks 5.0 / 5.08 (26 terminals max.)
Supply 1 base part with locking clip, 1 top part
B6515111
RAILTEC B, 9 modules, Vers. XIlight grey RAL 7035
157x86x59mm
B6515112
Version For plug header (2 x 13-poles) blocks 5.0 / 5.08
Supply 1 base part with locking clip, 1 top part
B6515112
RAILTEC B, 9 modules, Vers. XIIlight grey RAL 7035
157x86x59mm
B6515113
Version Closed case, e.g. for front connectors, D-SUB-connectors, etc.
Supply 1 base part with locking clip, 1 top part
B6515113
RAILTEC B, 9 modules, Vers. XIIIlight grey RAL 7035
157x86x59mm
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 83 KB
- AutoCAD DWG-File 252 KB
- AutoCAD DXF-File 711 KB
(OKW product)
Možnosti úprav: Zapouzdření můžeme upravit tak, aby vyhovovala Vašim specifickým požadavkům. Zapouzdření dodáme kompletně dokončená a připravená k použití. Už bude zbývat pouze instalace Vašich součástek nebo elektroniky. Prohlédněte si možnosti úprav pro B6605100 a nezapomeňte si vyžádat nabídku!
