Čtvercové ovládací centrum

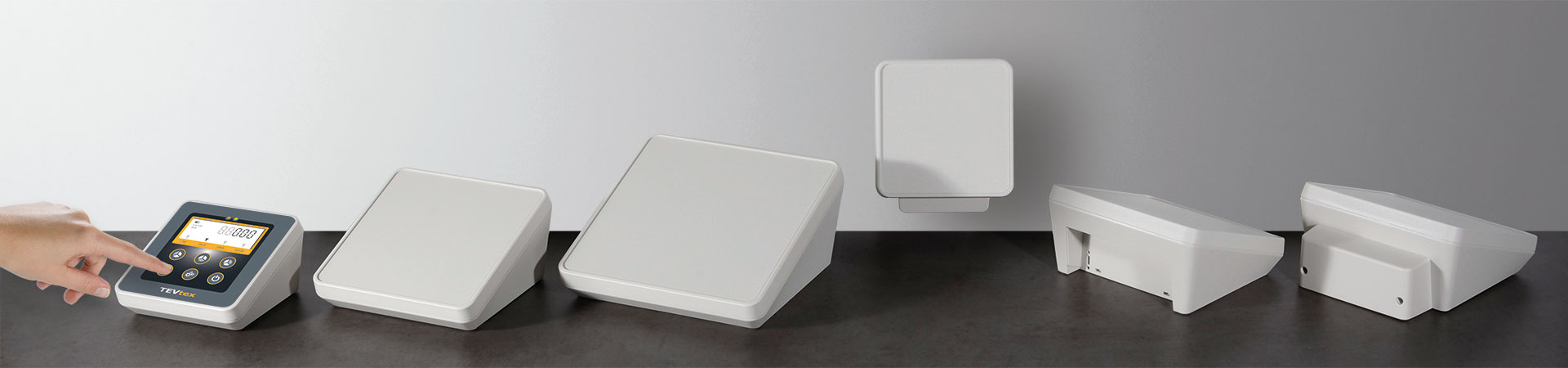

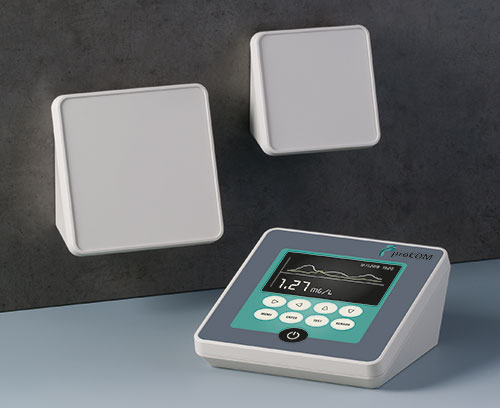

Zapouzdření PROTEC mají moderní a vysoce atraktivní čtvercový design s měkkými konturami. Výsledkem jsou tato nástěnná a stolní pouzdra, která jsou ideální pro elektronická zařízení jak uvnitř, tak venku.

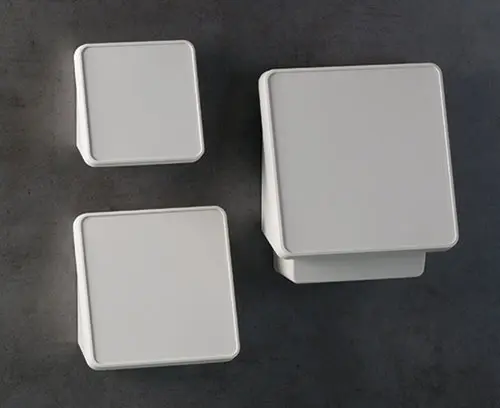

- Tři velikosti - 140/180/220, každá v následujících verzích:

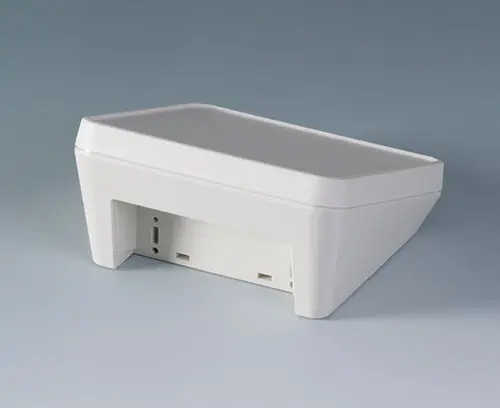

Verze I

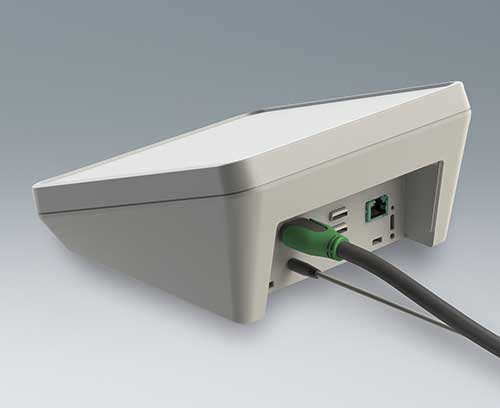

S hlubokým zapuštěným prostorem na zadní části zapouzdření pro instalaci a ochranu propojení, rozhraní, spínačů a kabelů.

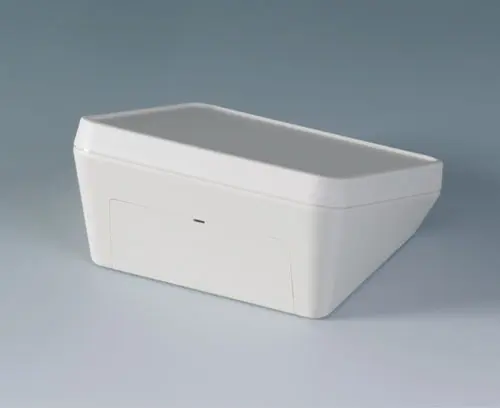

Verze II
Stejné jako verze I, ale také s naklapávací krytkou pro bezpečnou ochranu zapuštěného prostoru.

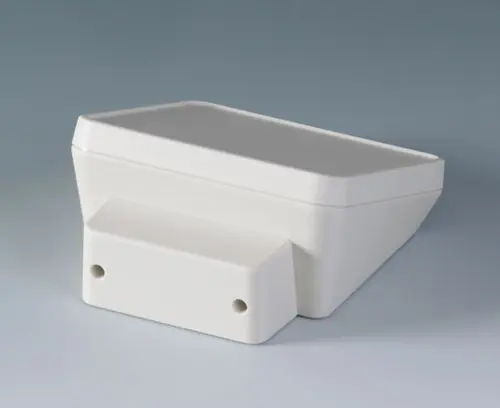

Verze III
Stejné, jako verze I, ale s hlubokým krytím pro zapuštěný prostor, které je připevněno pomocí šroubů. Hluboké krytí poskytuje další místo pro elektroniku, kabely a spojení. - Přední operační panel ergonomicky nakloněný o 20°

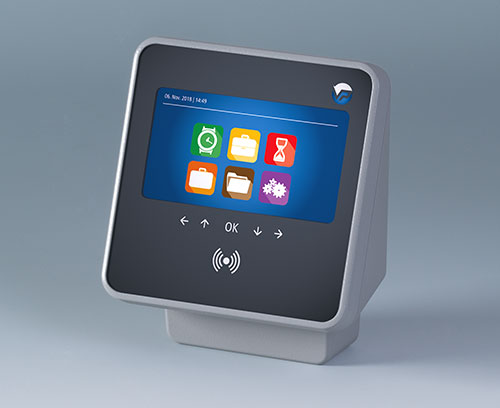

- Zapuštěný operační prostor pro ochranu membránové klávesnice

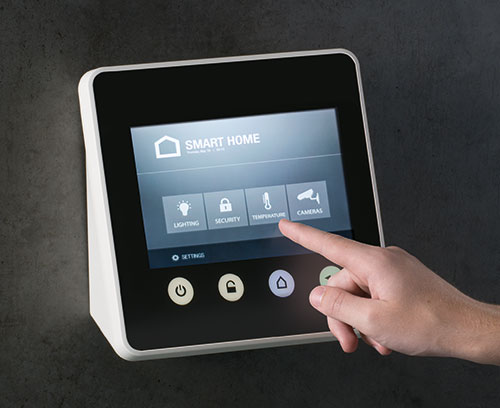

- Dostatek místa pro dotykové obrazovky (PROTEC 140: 5,7"/17.8 cm, PROTEC 180: 7"/17,8 cm, PROTEC 220: 8.4"/21.3 cm)
- Žádné viditelné upevňovací šrouby, všechna upevnění jsou schovaná na vnitřní straně
- Vysoce kvalitn V-0 materiál v krémově bílém (RAL 9002) a možnost přidání ochrany na úrovni IP 65 pro náročná řešení

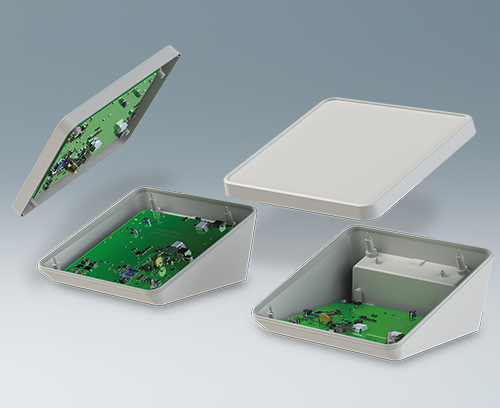

- Kryté místo pro elektroniku s třemi úrovněmi pro řídící desky; dostatek místa pro komponenty a sestavy

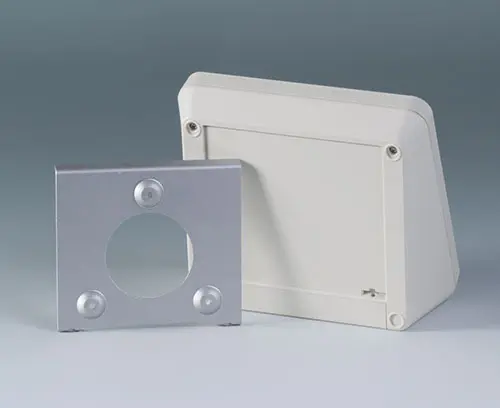

- Zakryté připevnění na zeď s ochranou proti odstranění ze zdi (doplněk pro připevnění na zeď)
- Šrouby z nerezové oceli se spolihlivými Torx hlavami
- Nohy z neklouzavé gumy zaručují, že zařízení na stolech nebudou klouzat
Learn more!
Read our blog posts on protec View blog posts >>
Obory aplikací

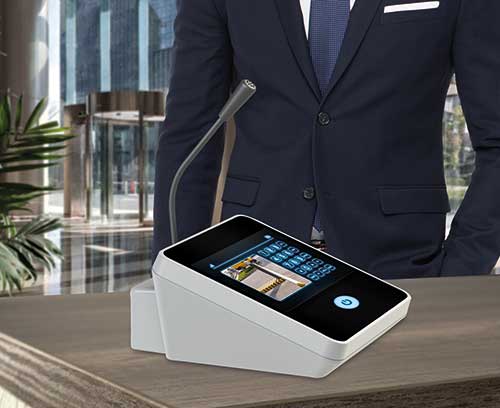

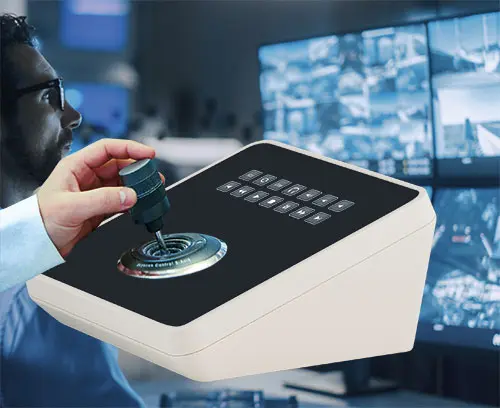

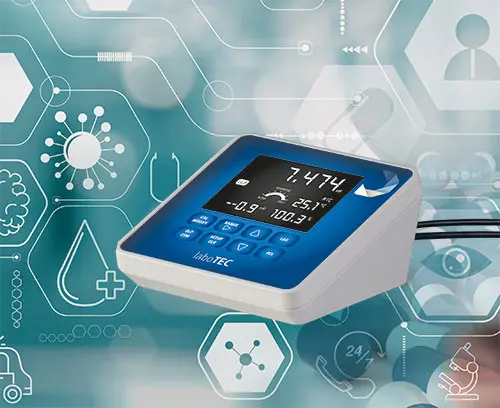

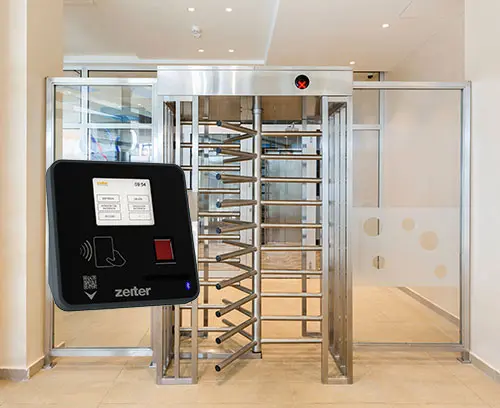

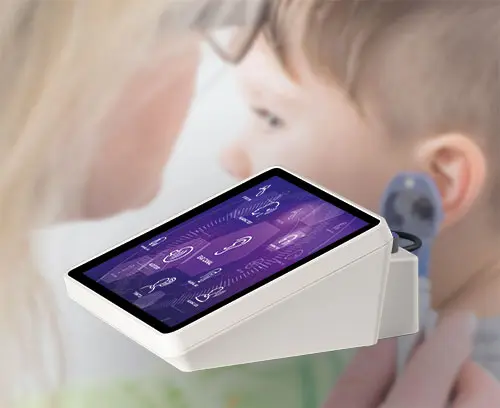

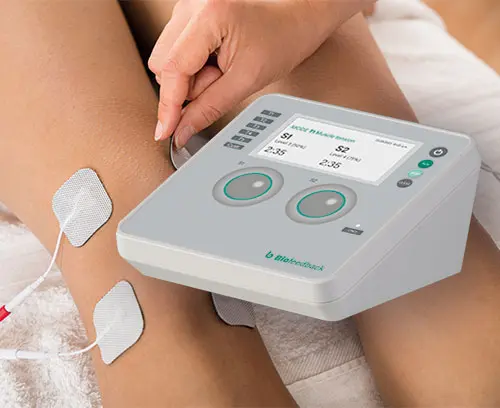

Dohledové systémy, kontrola přístupu a bezpečnosti, systémy pro sběr dat, systémy stavebních služeb, centrální kontrolní jednotky, IoT/IIoT, smart factory, průmysl 4.0, vstupní brány, inženýrství datových systémů, měřící a regulační technika, lékařská technologie, zdravotní péče, atd.

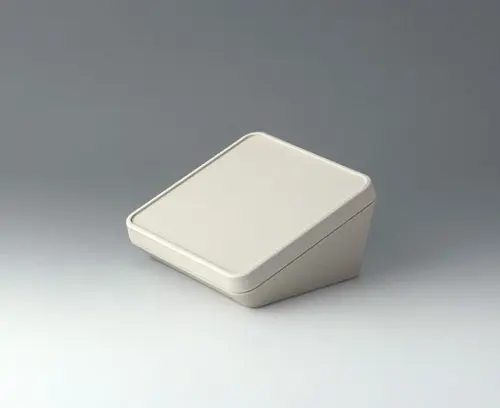

B4414107
PROTEC 140, Vers. I
Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet
B4414107
PROTEC 140, Vers. IProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
140x140x76mm

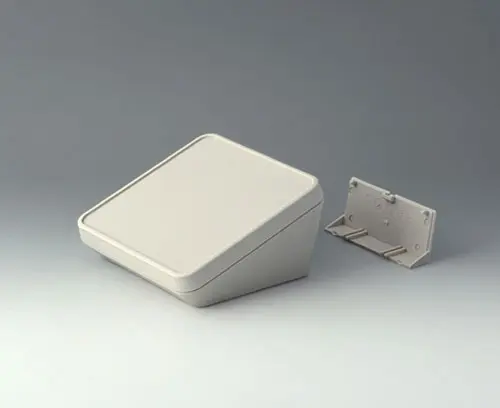

B4414207
PROTEC 140, Vers. II
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet
B4414207
PROTEC 140, Vers. IIProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
140x140x76mm
B4414307
PROTEC 140, Vers. III
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet
B4414307
PROTEC 140, Vers. IIIProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
140x160x76mm

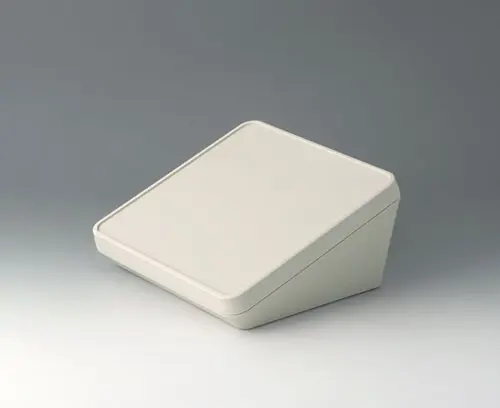

B4418107
PROTEC 180, Vers. I
Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet
B4418107
PROTEC 180, Vers. IProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
180x180x92mm
B4418207

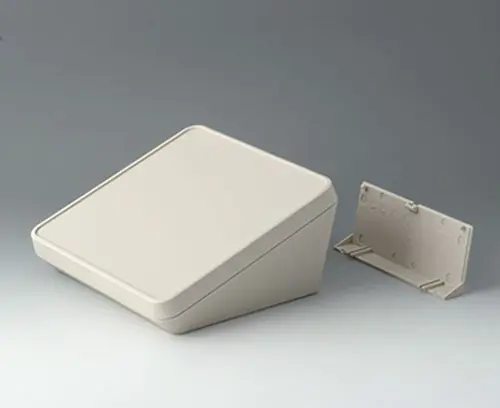

PROTEC 180, Vers. II
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet
B4418207
PROTEC 180, Vers. IIProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
180x180x92mm

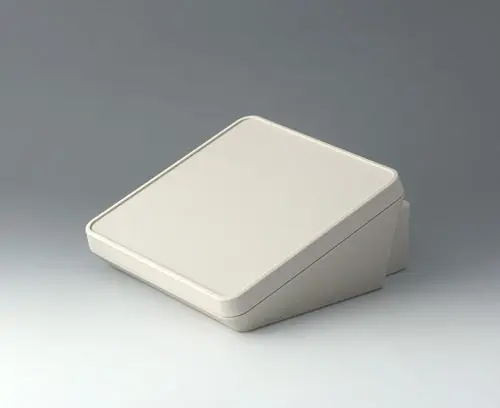

B4418307
PROTEC 180, Vers. III
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet
B4418307
PROTEC 180, Vers. IIIProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
180x201x92mm
B4422107

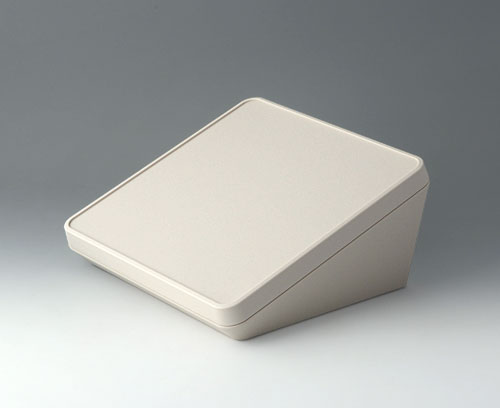

PROTEC 220, Vers. I
Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet
B4422107
PROTEC 220, Vers. IProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
220x220x108mm

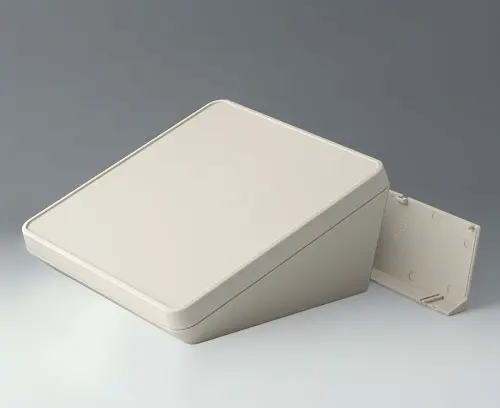

B4422207
PROTEC 220, Vers. II
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet
B4422207
PROTEC 220, Vers. IIProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
220x220x108mm
B4422307

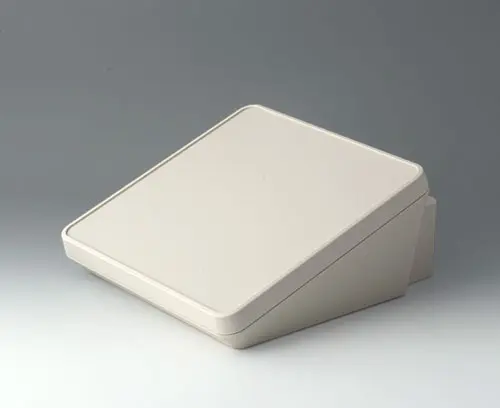

PROTEC 220, Vers. III
Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.
Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet
B4422307
PROTEC 220, Vers. IIIProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
220x243x108mm
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)Produkt byl přidán do Vašeho košíku.
A0325060

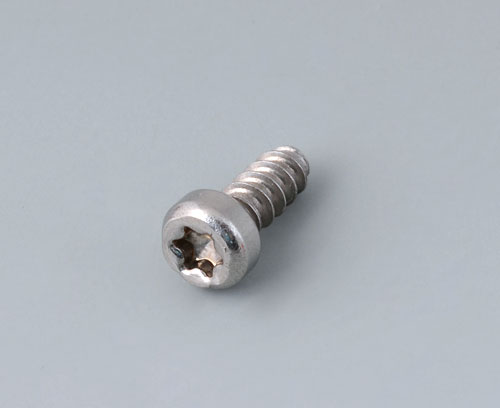

Self-tapping screw 2.5 x 6 mm (T8)
Self-tapping screw with T8 Torx drive. For fastening components, boards and PCBs onto pillars.
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Produkt byl přidán do Vašeho košíku.
B4514030

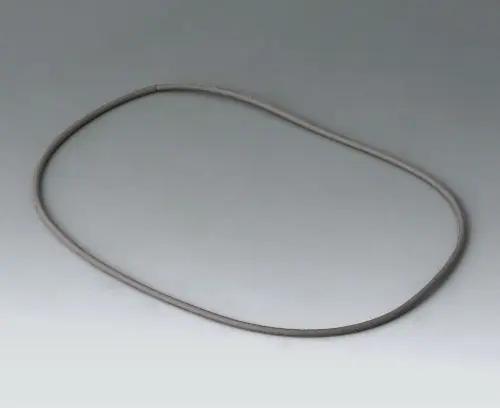

Sealing 140
Application: for increasing the protection class, of PROTEC 140. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4514030
Sealing 140Produkt byl přidán do Vašeho košíku.
B4514101

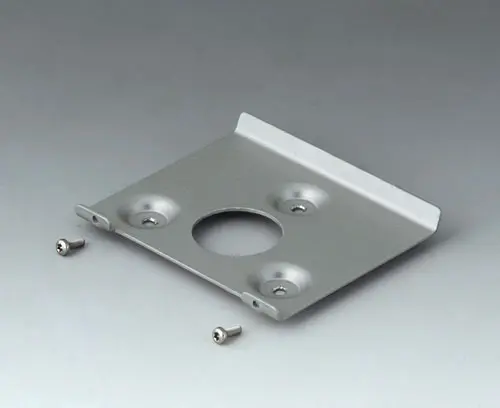

Wall suspension element 140
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4514101
Wall suspension element 140Produkt byl přidán do Vašeho košíku.
B4518030

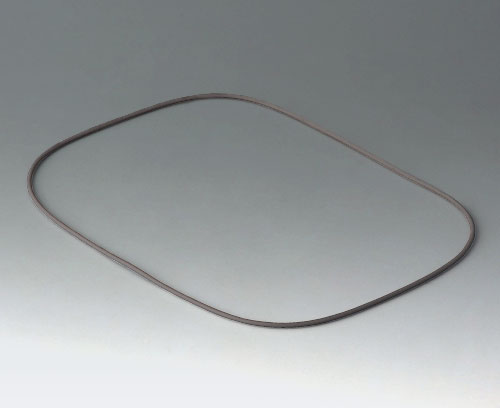

Sealing 180
Application: for increasing the protection class, of PROTEC 180. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4518030
Sealing 180Produkt byl přidán do Vašeho košíku.

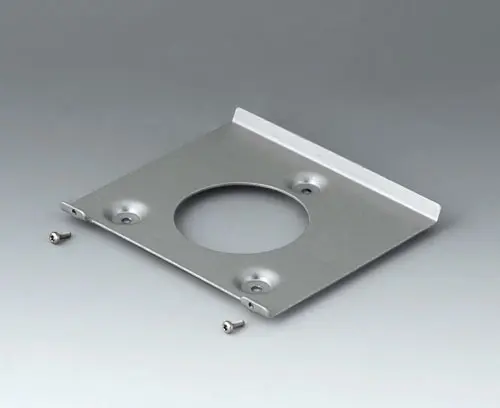

B4518101
Wall suspension element 180
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4518101
Wall suspension element 180Produkt byl přidán do Vašeho košíku.

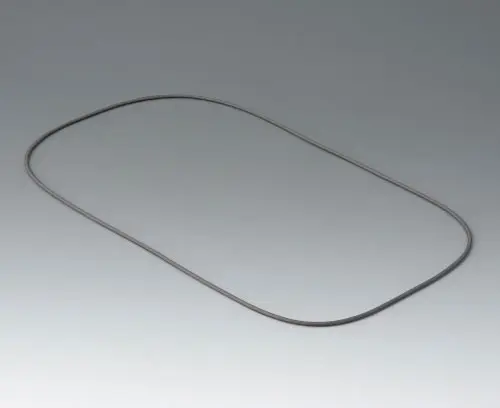

B4522030
Sealing 220
Application: for increasing the protection class, of PROTEC 220. Top part of the enclosure with groove for inserting the seal.
Supply 1 seal
B4522030
Sealing 220Produkt byl přidán do Vašeho košíku.
B4522101

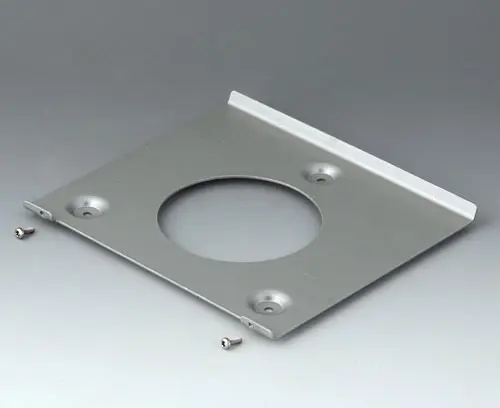

Wall suspension element 220
Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.
Supply 1 wall suspension element and 2 screws
B4522101
Wall suspension element 220Produkt byl přidán do Vašeho košíku.
Možnosti přizpůsobení pro Protec
Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
