Jednotka vyrovnání tlaku
Posunout

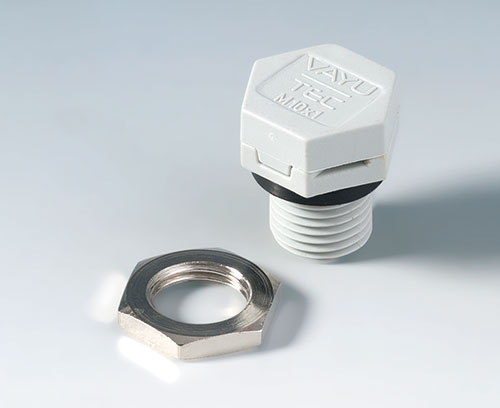

Jednotka vyrovnání tlaku

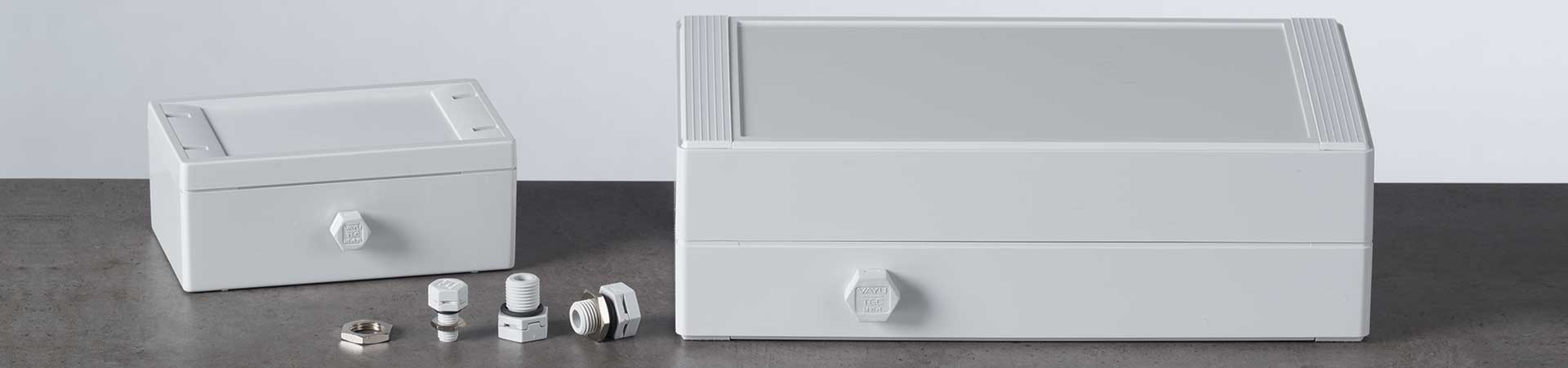

S obzvláště vysokým průtokem vzduchu pro ochranu citlivé elektroniky. Univerzálně použitelné pro pouzdra a rozvaděče. Rozměry M6 a M10.

Generovat PDF
  • Procházet celý seznam
C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Zavřít

C2306917

Pressure equalisation element M6x0.75
Produkt byl přidán do Vašeho košíku.
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Zavřít

C2310917

Pressure equalisation element M10x1
Produkt byl přidán do Vašeho košíku.
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
