Datec-Control

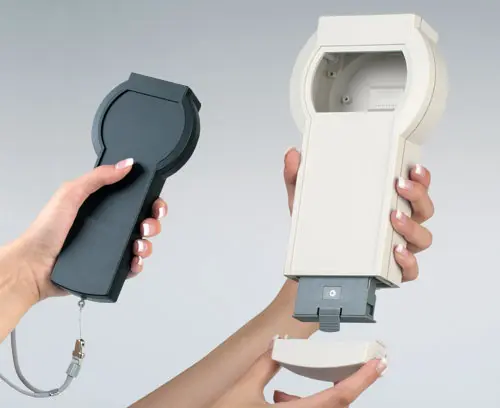

Zapouzdření do rukypro velké displeje

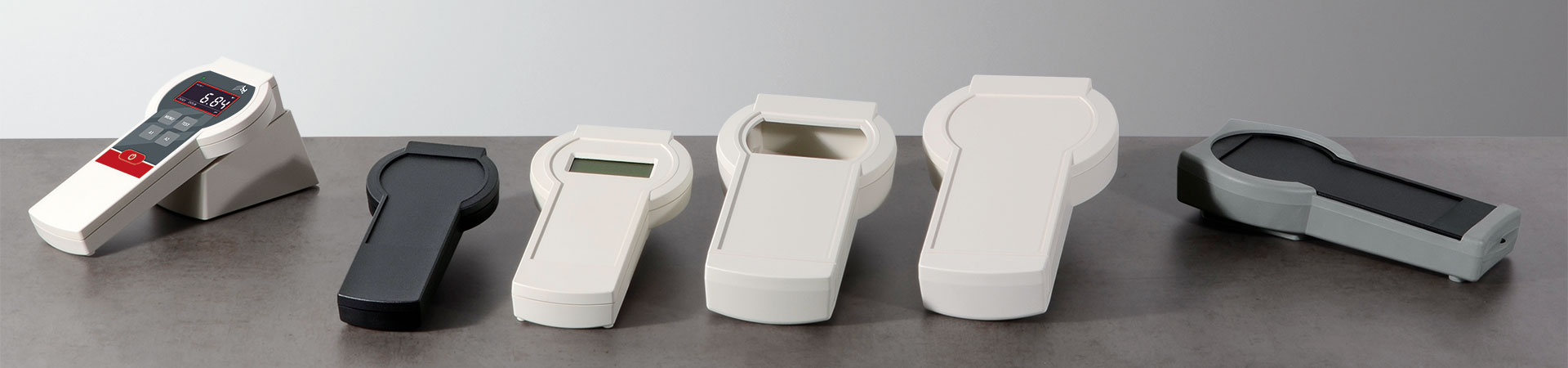

Tvar kulaté hlavy řady DATEC-CONTROL umožňuje instalaci větších grafických displejů pro větší uživatelský komfort.

  • Instalace standardizovaných grafických displejů
  • Obzvláště uživatelsky příjemný díky úzké rukojeti

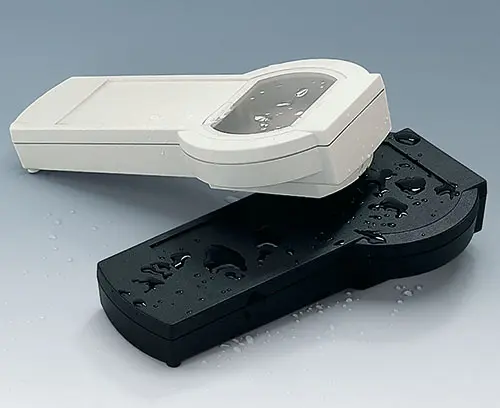

  • Vysoký stupeň ochrany: IP 65 (XS, S) nebo IP 54 (M, L) při použití těsnících sad a ve spojení s panely displeje

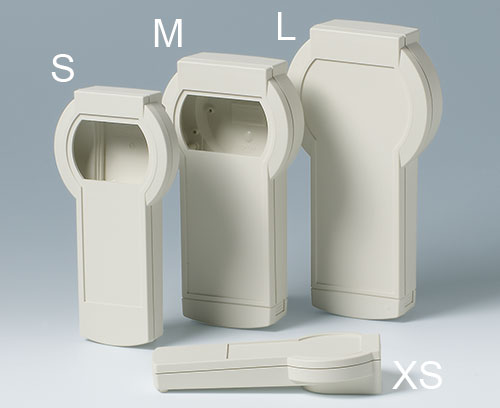

  • 4 velikosti, každé 2 barvy

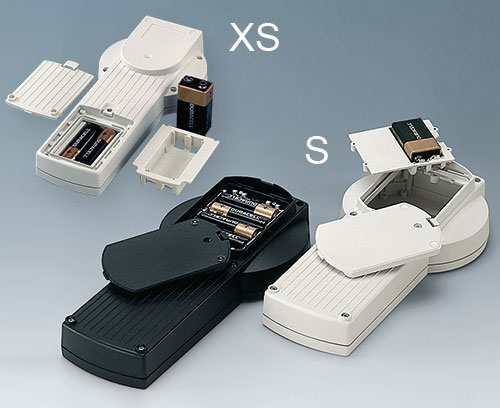

  • DATEC-CONTROL XS
    s / bez přihrádky pro baterie pro šrouby 2 x / 3 x AA, víko prostoru pro baterii volitelně uzamykatelné a

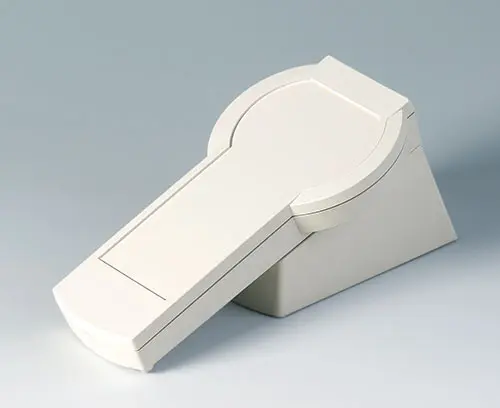

  • DATEC-CONTROL S
    bez / s přihrádkou pro baterie pro 4 x AA nebo 1 x 9 V přišroubované víko prostoru pro baterii volitelně uzamykatelné a / nebo šroubitelné; Základní jako tabulková verze
  • DATEC-CONTROL M, L

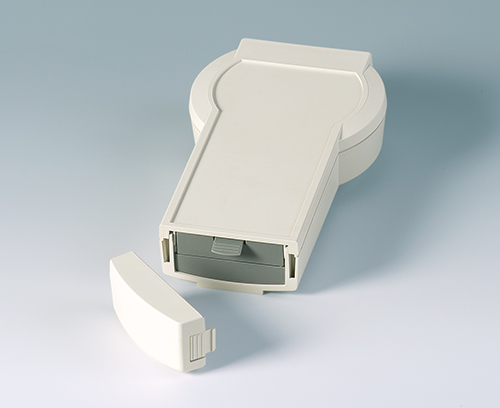

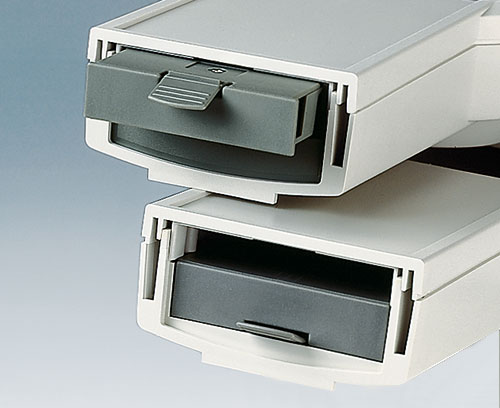

    s / bez odnímatelného prostoru pro baterie, až 5 x AA, zámky; Prostor pro karty PCMCIA; Nabíjecí zásuvka s bateriovým prostorem jako stolní / stěnová verze

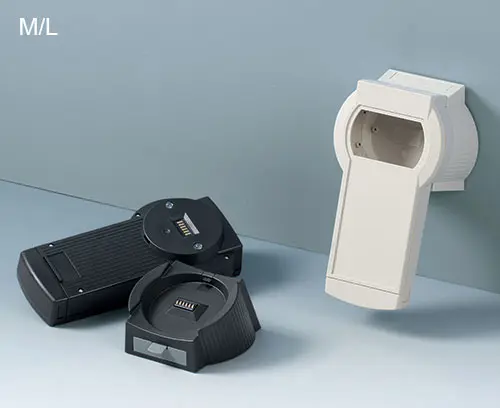

  • Jednoduchý datový- a proudový přenos, základna a kontakty jako příslušenství

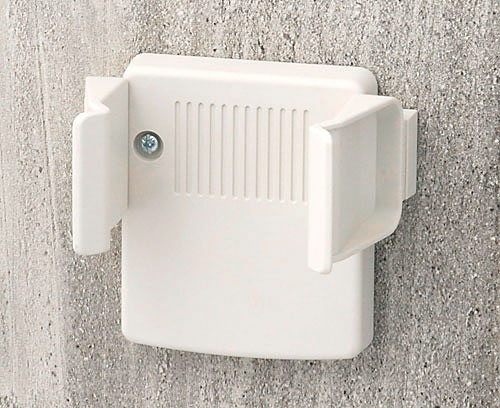

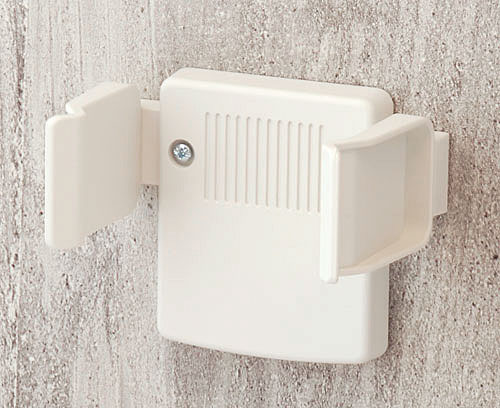

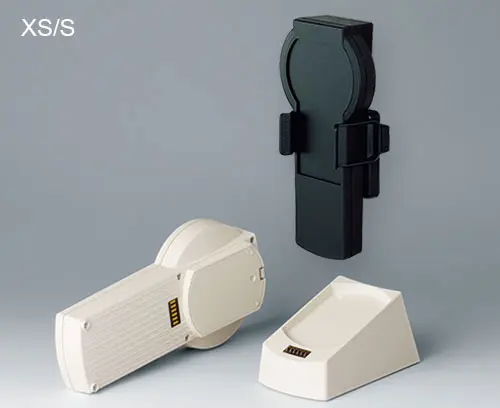

  • Sada nástěnných držáků pro bezpečné uložení (příslušenství)

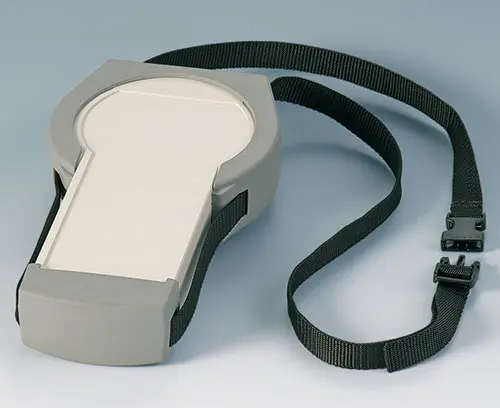

  • Chrániče chrání nárazy a chrání povrchy (příslušenství), velikosti M a L s přídavným ramenním popruhem

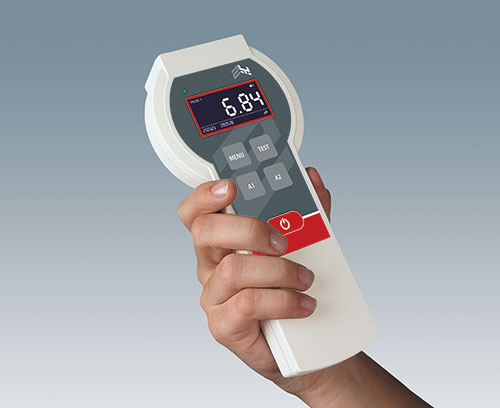

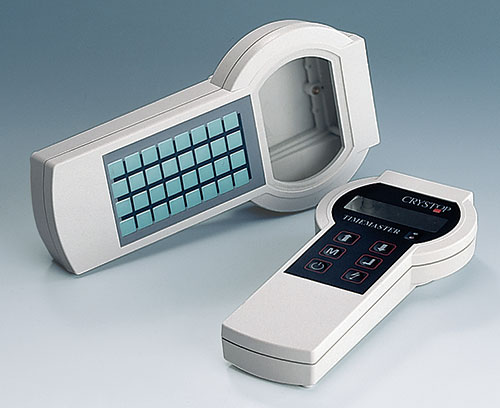

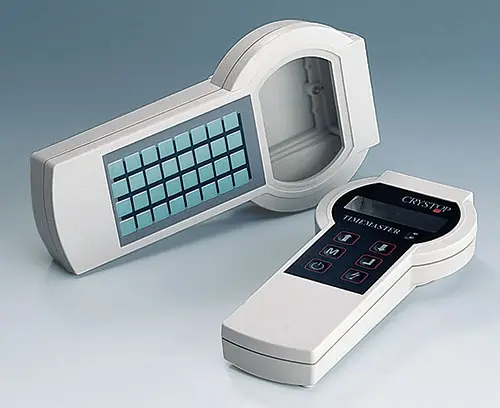

  • Vestavěný ovládací panel pro ochranu membránové klávesnice
  • Upevňovací domek pro desky a komponenty
Generovat PDF

Obory aplikací

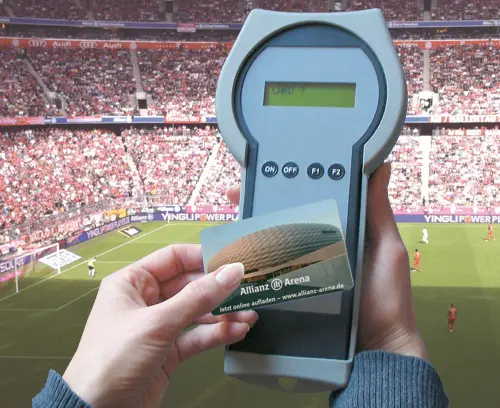

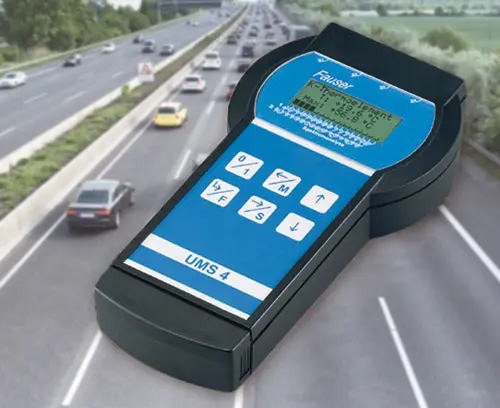

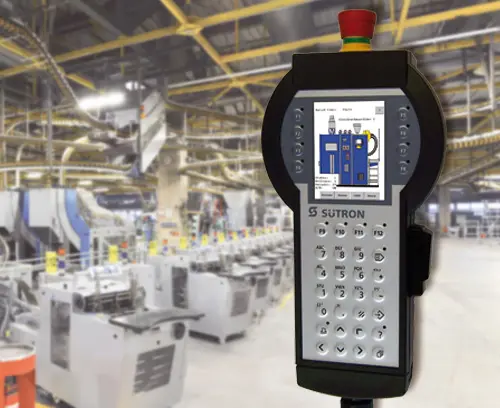

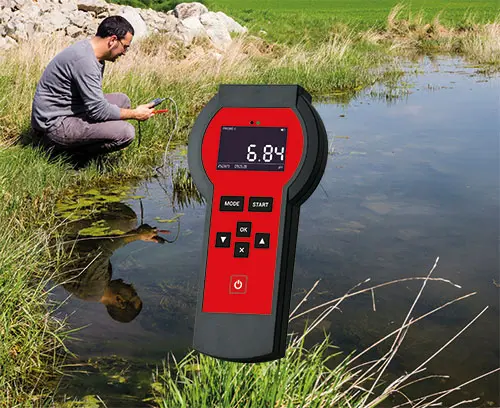

Sběr a přenos dat přes modem, ISDN nebo IR technologie, technologie měření a řízení, digitální řídicí technologie, strojírenství, smart factory, industry 4.0, atd.

Vyberte požadovanou verzi / velikost a klikněte na „vybrat“.

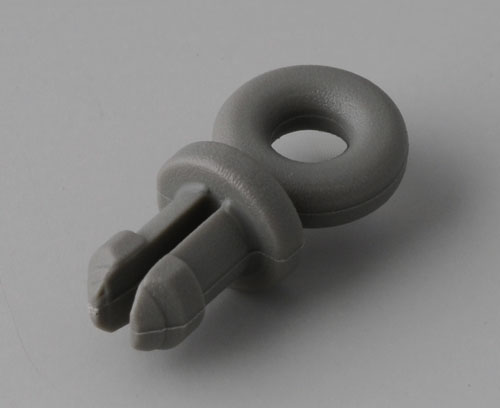

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

A9100002

Ring eyelet
Produkt byl přidán do Vašeho košíku.

volcano
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

A9160003

Plug-in contact, 1 x 9 V (PP3)
Produkt byl přidán do Vašeho košíku.
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

A9174006

Set of battery clips, 1 x 9 V
Produkt byl přidán do Vašeho košíku.

tin-plated
A9176001 Display window XS

A9176001

Display window XS The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

A9176001

Display window XS
Produkt byl přidán do Vašeho košíku.

clear

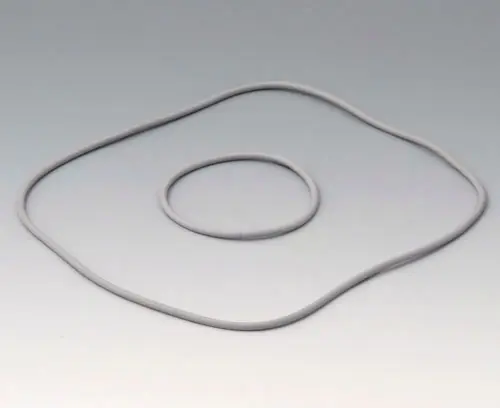

A9176006 Sealing kit XS

A9176006

Sealing kit XS Application: for increasing the protection class, of DATEC-CONTROL XS.

Supply 1 sealing kit

A9176006

Sealing kit XS
Produkt byl přidán do Vašeho košíku.

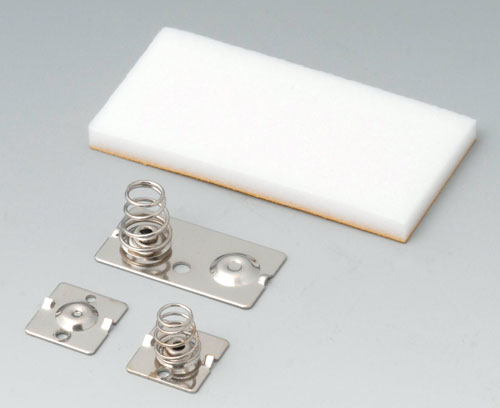

A9176007 Set of battery clips, 2 x AA

A9176007

Set of battery clips, 2 x AA For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.

Supply 2 single contacts, 1 double contacts, 1 self-adhesive battery spacer

A9176007

Set of battery clips, 2 x AA
Produkt byl přidán do Vašeho košíku.

nickel-plated

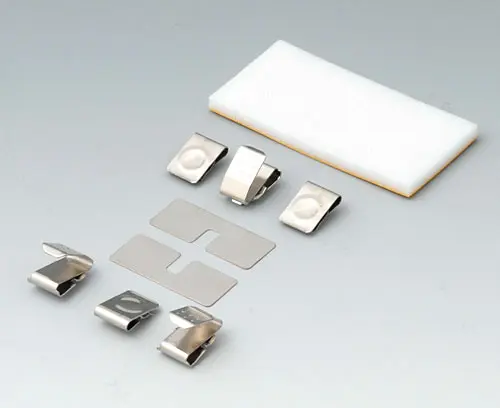

A9176008 Set of battery clips, 3 x AA

A9176008

Set of battery clips, 3 x AA For contacting the batteries. For secure hold of the round cells just glue the attached battery spacer into the enclosure’s battery compartment lid.

Supply 1 set incl. 1 self-adhesive battery spacer

A9176008

Set of battery clips, 3 x AA
Produkt byl přidán do Vašeho košíku.

nickel-plated

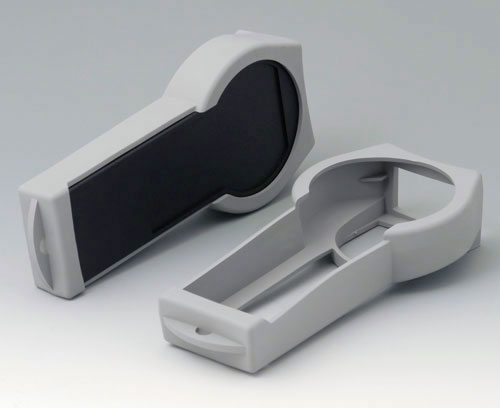

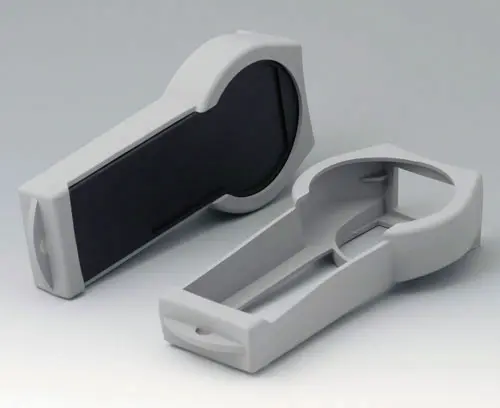

A9176108 Protector XS

A9176108

Protector XS Special protector for DATEC-CONTROL XS. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

A9176108

Protector XS
Produkt byl přidán do Vašeho košíku.

volcano

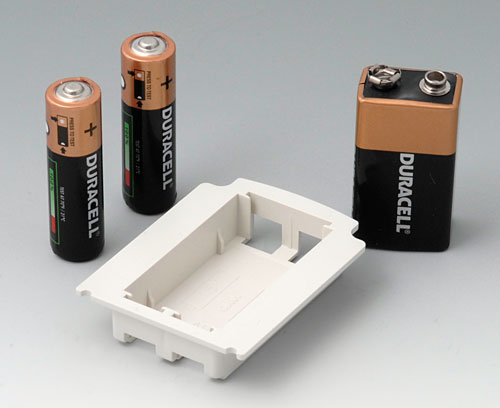

A9176128 Battery compartment XS, 2 x AA or 1 x 9V

A9176128

Battery compartment XS, 2 x AA or 1 x 9V Suitable for DATEC-CONTROL XS. An add-on battery compartment for 2 x 1.5 V mignon-cells (AA) or 1 x 9 V flat battery (PP3). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).

Supply 1 battery compartment

A9176128

Battery compartment XS, 2 x AA or 1 x 9V
Produkt byl přidán do Vašeho košíku.

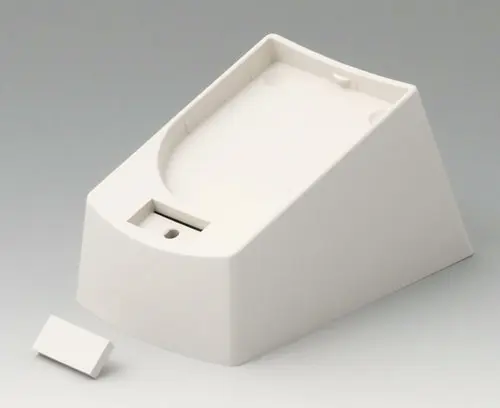

A9176137 Station XS

A9176137

Station XS Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

A9176137

Station XS
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002

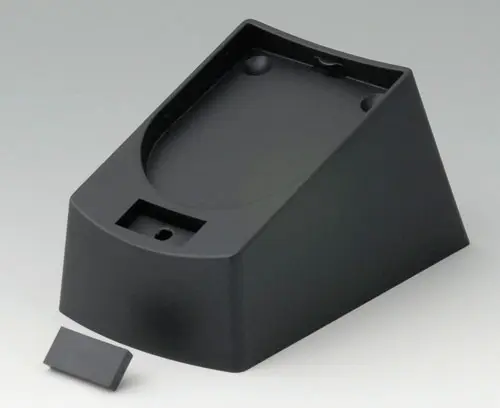

A9176139 Station XS

A9176139

Station XS Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

A9176139

Station XS
Produkt byl přidán do Vašeho košíku.

black RAL 9005

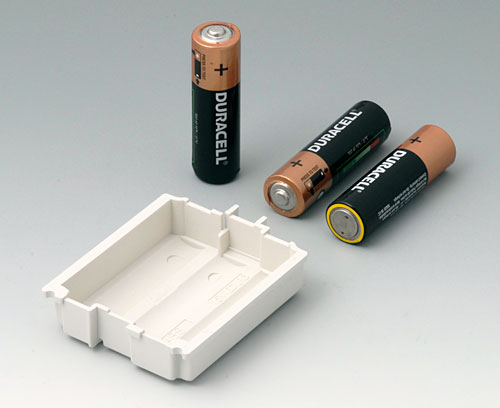

A9176158 Battery compartment XS, 3 x AA

A9176158

Battery compartment XS, 3 x AA Suitable for DATEC-CONTROL XS. An add-on battery compartment for 3 x 1.5 V AA batteries (IEC LR6 1.5 V). It is secured without screws. After the upper and lower parts of the case have been mounted, it is held automatically. Set of battery clips (accessory).

Supply 1 battery compartment

A9176158

Battery compartment XS, 3 x AA
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002

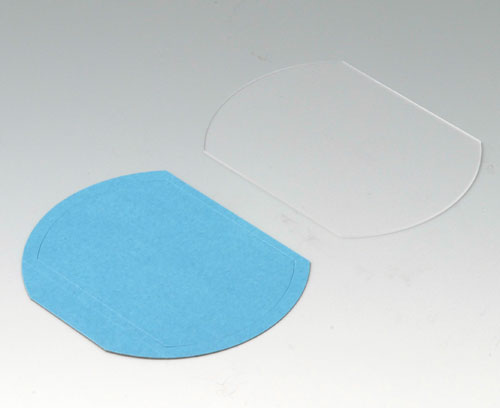

A9177001 Display window S

A9177001

Display window S The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

A9177001

Display window S
Produkt byl přidán do Vašeho košíku.

clear
A9177006 Sealing kit S

A9177006

Sealing kit S Application: for increasing the protection class, of DATEC-CONTROL S.

Supply 1 sealing kit

A9177006

Sealing kit S
Produkt byl přidán do Vašeho košíku.

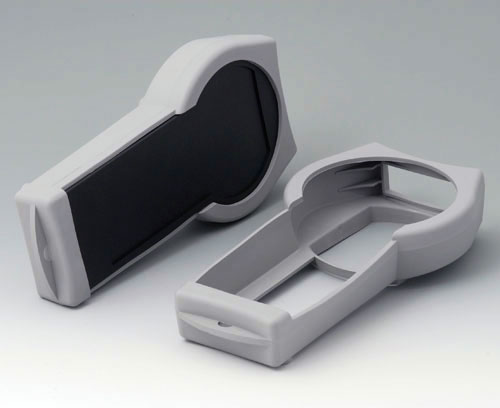

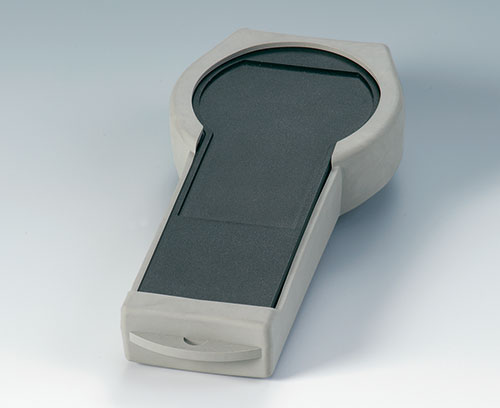

A9177008 Protector S

A9177008

Protector S Special protector for DATEC-CONTROL S. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Supply 1 protector

A9177008

Protector S
Produkt byl přidán do Vašeho košíku.

volcano
A9177137 Station S

A9177137

Station S Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

A9177137

Station S
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002

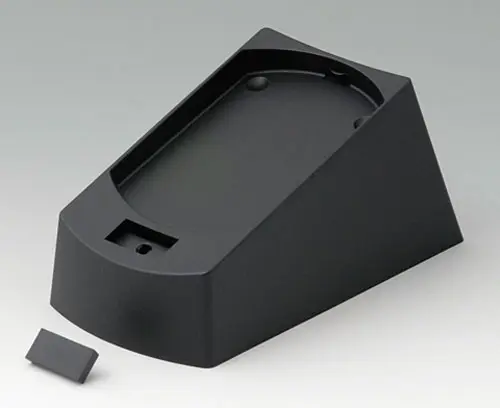

A9177139 Station S

A9177139

Station S Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, slots etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

A9177139

Station S
Produkt byl přidán do Vašeho košíku.

black RAL 9005
A9177310 Battery compartment, 1 x 9 V

A9177310

Battery compartment, 1 x 9 V Application: for 1 x 9 V flat battery (PP3).

Supply 1 battery compartment, assembly kit

A9177310

Battery compartment, 1 x 9 V
Produkt byl přidán do Vašeho košíku.

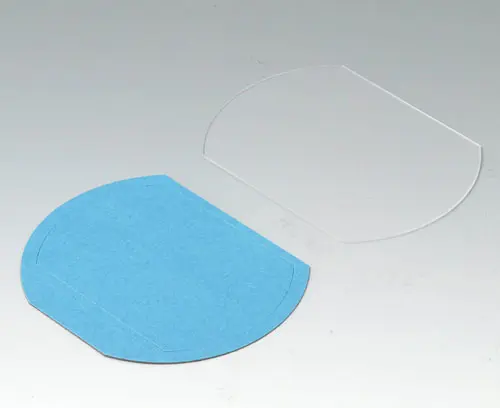

A9178001 Display window M

A9178001

Display window M The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

A9178001

Display window M
Produkt byl přidán do Vašeho košíku.

clear

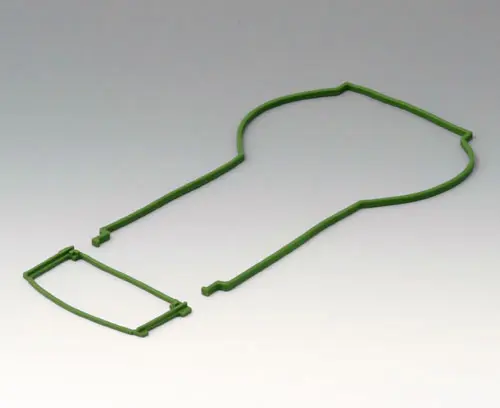

A9178006 Sealing kit M

A9178006

Sealing kit M Application: for increasing the protection class, of DATEC-CONTROL M.

Supply 1 sealing kit

A9178006

Sealing kit M
Produkt byl přidán do Vašeho košíku.
A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178007

Contacts, male
Produkt byl přidán do Vašeho košíku.
gold-plated
A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178008

Contacts, female
Produkt byl přidán do Vašeho košíku.
gold-plated

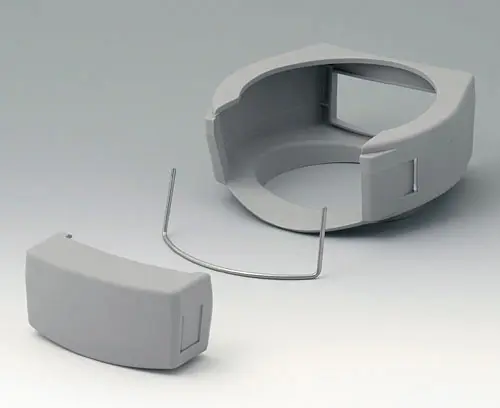

A9178108 Protector M

A9178108

Protector M Special protector for DATEC-CONTROL M. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version without hanging belt.

Supply 1 protector

A9178108

Protector M
Produkt byl přidán do Vašeho košíku.

volcano

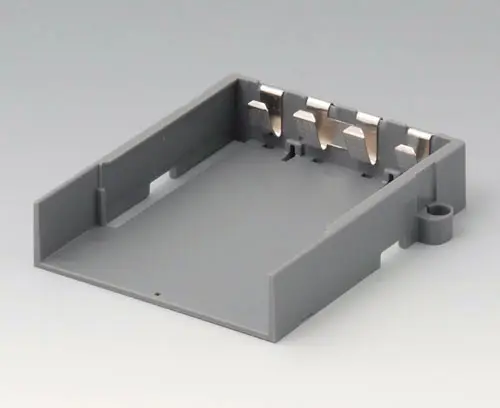

A9178118 Battery compartment holder

A9178118

Battery compartment holder Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.

Supply 1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws

A9178118

Battery compartment holder
Produkt byl přidán do Vašeho košíku.

volcano

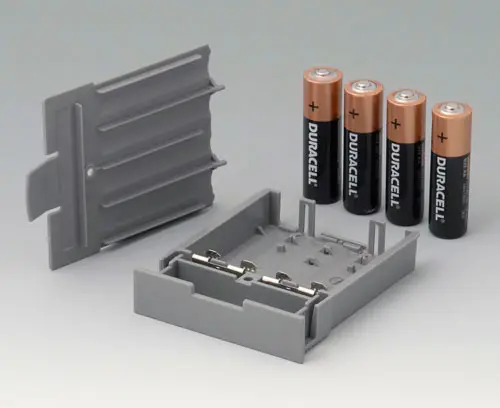

A9178128 Battery compartment, M/L, 4 x AA

A9178128

Battery compartment, M/L, 4 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 4 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

A9178128

Battery compartment, M/L, 4 x AA
Produkt byl přidán do Vašeho košíku.

volcano

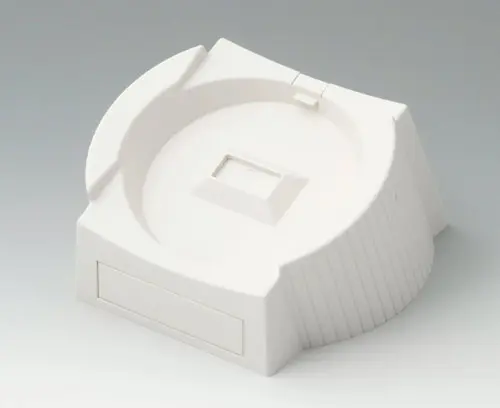

A9178137 Station, Vers. I

A9178137

Station, Vers. I Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

A9178137

Station, Vers. I
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002

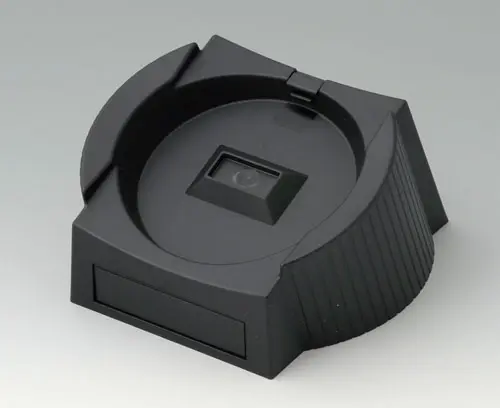

A9178139 Station, Vers. I

A9178139

Station, Vers. I Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

A9178139

Station, Vers. I
Produkt byl přidán do Vašeho košíku.

black RAL 9005

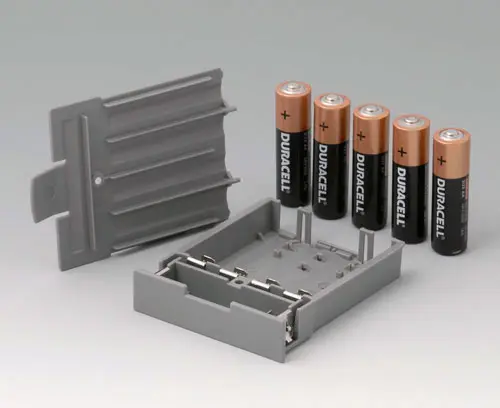

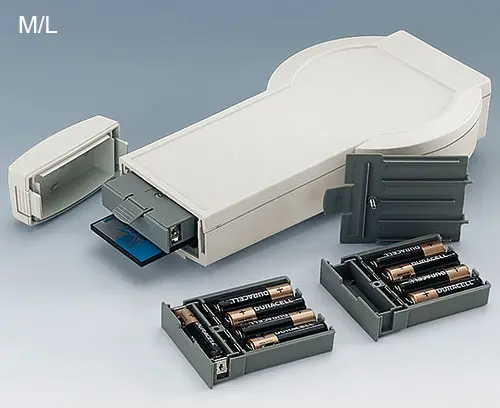

A9178158 Battery compartment, M/L, 5 x AA

A9178158

Battery compartment, M/L, 5 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 5 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

A9178158

Battery compartment, M/L, 5 x AA
Produkt byl přidán do Vašeho košíku.

volcano

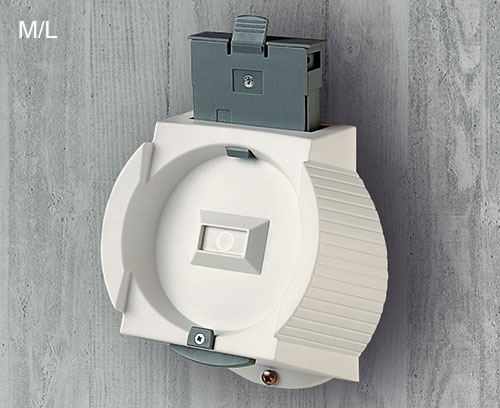

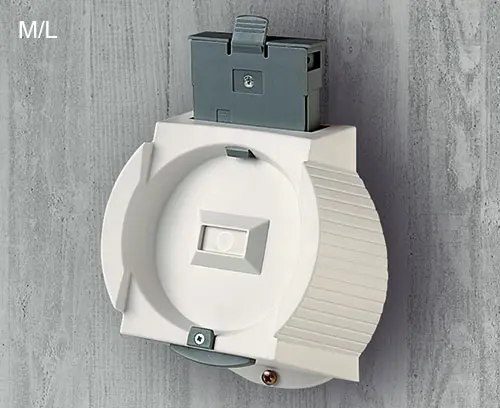

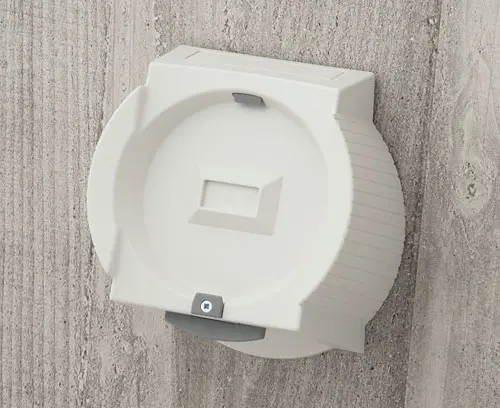

A9178167 Station, Vers. II

A9178167

Station, Vers. II Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Wall-mounting

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, locking mechanism

A9178167

Station, Vers. II
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002

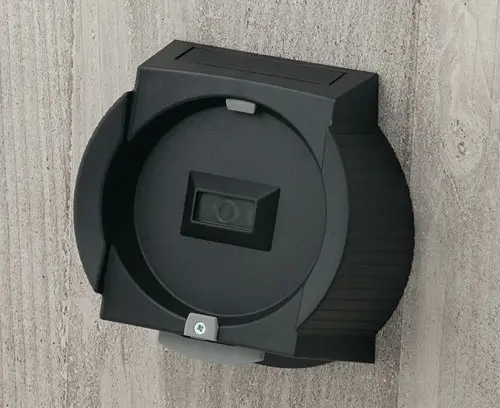

A9178169 Station, Vers. II

A9178169

Station, Vers. II Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Wall-mounting

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, locking mechanism

A9178169

Station, Vers. II
Produkt byl přidán do Vašeho košíku.

black RAL 9005

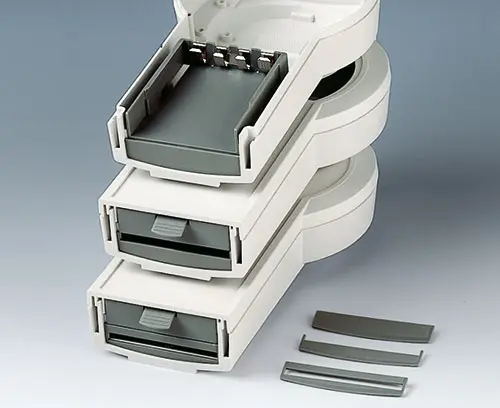

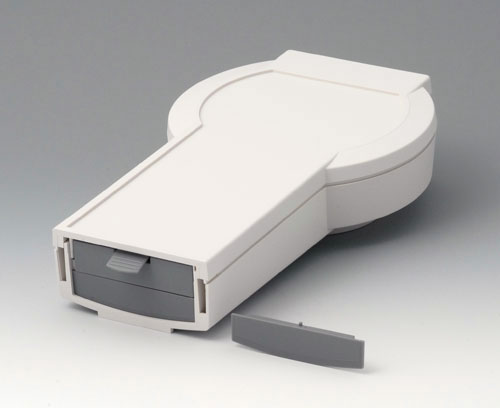

A9178178 End plate for electronic area, Vers. I

A9178178

End plate for electronic area, Vers. I Simply inserted into the guides in the bottom part.

Version To close the electronic area

Supply 1 end plate for electronic area

A9178178

End plate for electronic area, Vers. I
Produkt byl přidán do Vašeho košíku.

volcano

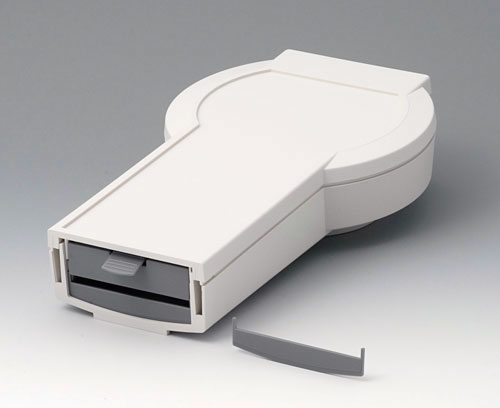

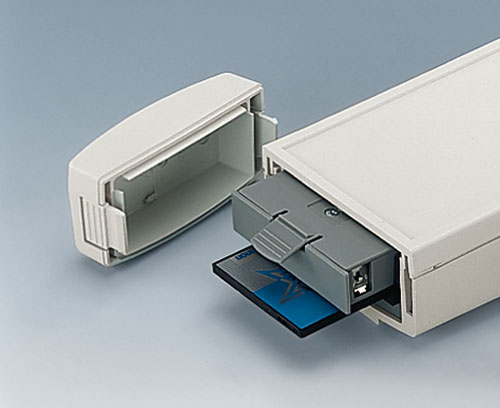

A9178188 End plate for electronic area, Vers. II

A9178188

End plate for electronic area, Vers. II Simply inserted into the guides in the bottom part.

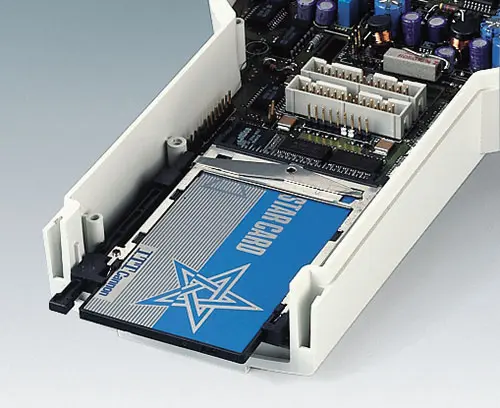

Version For use with a PCMCIA-card type I

Supply 1 end plate for electronic area

A9178188

End plate for electronic area, Vers. II
Produkt byl přidán do Vašeho košíku.

volcano

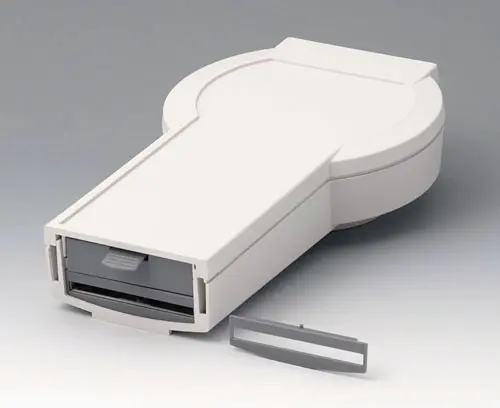

A9178198 End plate for electronic area, Vers. III

A9178198

End plate for electronic area, Vers. III Simply inserted into the guides in the bottom part.

Version For use with a PCMCIA-card type I

Supply 1 end plate for electronic area

A9178198

End plate for electronic area, Vers. III
Produkt byl přidán do Vašeho košíku.

volcano

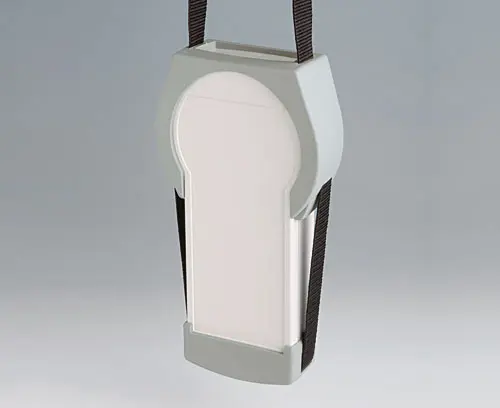

A9178208 Protector M

A9178208

Protector M Special protector for DATEC-CONTROL M. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version With shoulder strap (approx. 1800 x 20 mm, black, with push-in buckle)

Supply 1 protector, 1 shoulder strap

A9178208

Protector M
Produkt byl přidán do Vašeho košíku.

volcano
A9179001 Display window L

A9179001

Display window L The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

A9179001

Display window L
Produkt byl přidán do Vašeho košíku.

clear

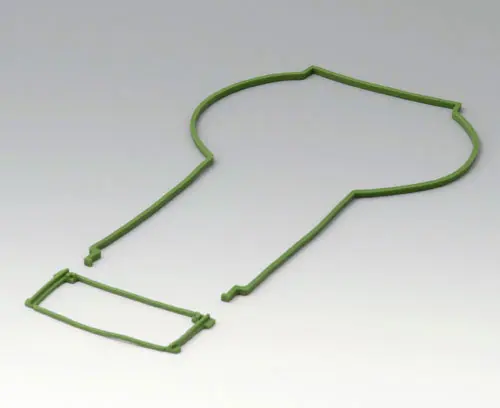

A9179006 Sealing kit L

A9179006

Sealing kit L Application: for increasing the protection class, of DATEC-CONTROL L.

Supply 1 sealing kit

A9179006

Sealing kit L
Produkt byl přidán do Vašeho košíku.

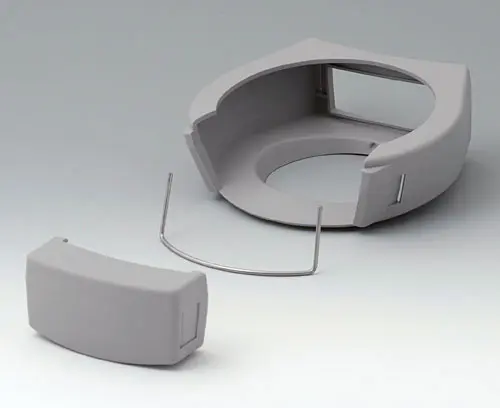

A9179108 Protector L

A9179108

Protector L Special protector for DATEC-CONTROL L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version without hanging belt.

Supply 1 protector

A9179108

Protector L
Produkt byl přidán do Vašeho košíku.

volcano

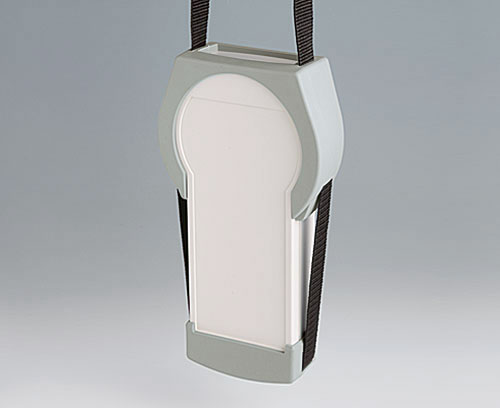

A9179208 Protector L

A9179208

Protector L Special protector for DATEC-CONTROL L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version with shoulder strap (approx. 1800 x 20 mm, black, with push-in buckle).

Supply 1 protector, 1 shoulder strap

A9179208

Protector L
Produkt byl přidán do Vašeho košíku.

volcano

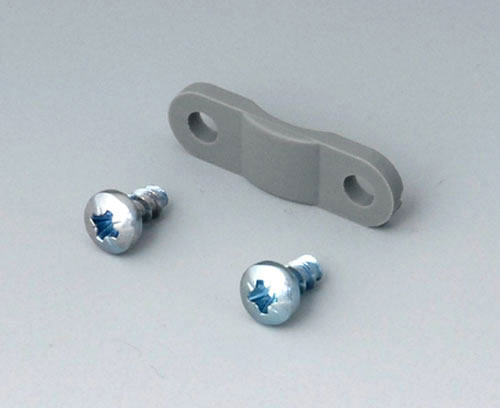

A9199005 Strain relief

A9199005

Strain relief Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.

Supply 1 strain relief device, 2 screws

A9199005

Strain relief
Produkt byl přidán do Vašeho košíku.

volcano

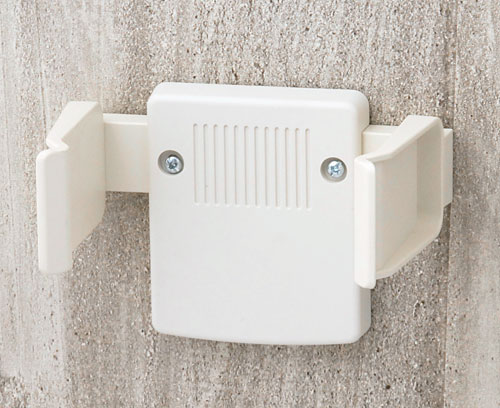

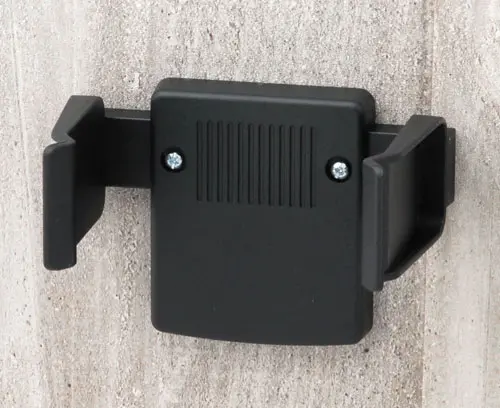

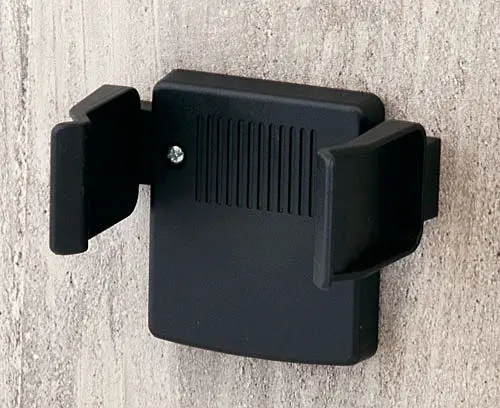

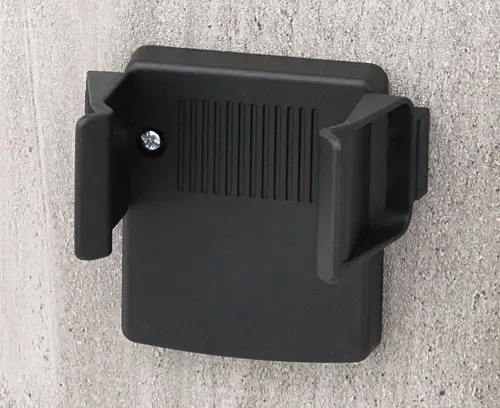

A9226117 Wall suspension element

A9226117

Wall suspension element Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226117

Wall suspension element
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
A9226119 Wall suspension element

A9226119

Wall suspension element Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226119

Wall suspension element
Produkt byl přidán do Vašeho košíku.

black RAL 9005
A9226227 Wall suspension element

A9226227

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226227

Wall suspension element
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
A9226229 Wall suspension element

A9226229

Wall suspension element Wall suspension element for DATEC-MOBIL-BOX M and DATEC-CONTROL S. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226229

Wall suspension element
Produkt byl přidán do Vašeho košíku.

black RAL 9005
A9226337 Wall suspension element

A9226337

Wall suspension element Wall suspension element for DATEC-CONTROL XS. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226337

Wall suspension element
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002
A9226339 Wall suspension element

A9226339

Wall suspension element Wall suspension element for DATEC-CONTROL XS. Two clasps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226339

Wall suspension element
Produkt byl přidán do Vašeho košíku.

black RAL 9005
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

A9250250

Battery spacer
Produkt byl přidán do Vašeho košíku.

50x25x4mm
A9345217 Set of battery compartment, 4 x AA

A9345217

Set of battery compartment, 4 x AA For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply 1 battery compartment, battery clips nickel-plated, assembly kit

A9345217

Set of battery compartment, 4 x AA
Produkt byl přidán do Vašeho košíku.

off-white RAL 9002

Možnosti přizpůsobení pro Datec-Control

Co ještě potřebujete pro svůj vlastní velmi osobní produkt? Můžeme dodat zapouzdření a ladicí knoflíky se všemi nezbytnými úpravami pro montáž vašich elektronických součástek.
