DIN modulární skříňka
C3208207
EASYTEC 150

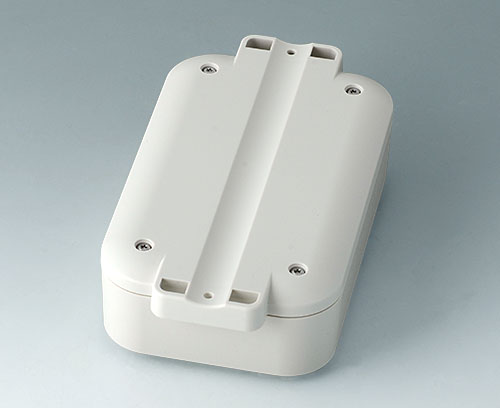

2-part plastic enclosure with flat top part. The bottom part has integrated flanges for quick wall mounting or for installation on pipes/round profiles. Robust design with proven tongue and groove connection. Screw connection with stainless steel screws and Torx drive. Fastening pillars for PCBs and components in the top and bottom parts.
VersionTop part high
SupplyTop and bottom part, assembly kit
Generovat PDF pro C3208207
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Accessory "protection"
A9504030
Supply 1 seal
A9504030
Sealing 150Accessory "screws"
A0305031
Supply 1 self-tapping screw
A0305031
Self-tapping screws 2.5 x 6 mm (PZ1)
A0325060
Supply 1 self-tapping screw
A0325060
Self-tapping screw 2.5 x 6 mm (T8)Necessary accessories: sealing,
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 213 KB
- AutoCAD DWG-File 454 KB
- AutoCAD DXF-File 1 405 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 463 KB
