DIN modulární skříňka
B4016457
Lid M closed, high

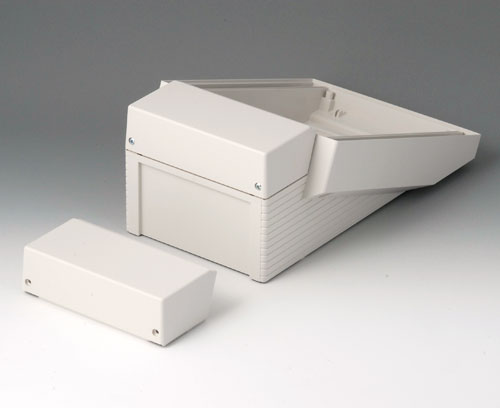

Lid M closed, high to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.
Supply1 lid, 2 screws M3
2D PDF Zobrazení
3D PDF Zobrazení
3D/2D ke stažení
3D/2D ke stažení
Generovat PDF pro B4016457
Vyberte prosím podrobnosti o produktu, které chcete zahrnout do PDF.
Přidat do košíku
B4016117
DATEC-TERMINAL M, Vers. I
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards 100 x 160 mm.
Version Basic housing, unmachined
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit
B4016117
DATEC-TERMINAL M, Vers. IProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
168x272x101mm
B4016217
DATEC-TERMINAL M, Vers. II
Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.
Suitable for the installation of Eurocards 100 x 160 mm.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.
Suitable for the installation of Eurocards 100 x 160 mm.
Version Machined for assembly of hinge and quick-action lock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
B4016217
DATEC-TERMINAL M, Vers. IIProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
168x272x101mm
B4016317
DATEC-TERMINAL M, Vers. III
Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.
Suitable for the installation of Eurocards 100 x 160 mm.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.
Suitable for the installation of Eurocards 100 x 160 mm.
Version Machined for assembly of hinge, quick-action lock and keylock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock
B4016317
DATEC-TERMINAL M, Vers. IIIProdukt byl přidán do Vašeho košíku.
off-white RAL 9002
168x272x101mm
Customising options for B4016457
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technická data
-
Nákresy / Info
- Kupní data
Šířka
134 mm
Hloubka
67 mm
Výška
38 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 223 KB
- AutoCAD DWG-File 465 KB
- AutoCAD DXF-File 1 597 KB
- 3D PDF (Acrobat Reader) (otočte produkt o 360°, zrušte zobrazení komponentů pro náhled z vnitřní strany…) 3 037 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012828.x_t 4 525 KB
- 00012828.STEP 11 422 KB
- 00012828.SAT 11 172 KB
Weight/1 part
70 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
